Fanless Embedded BOX PC

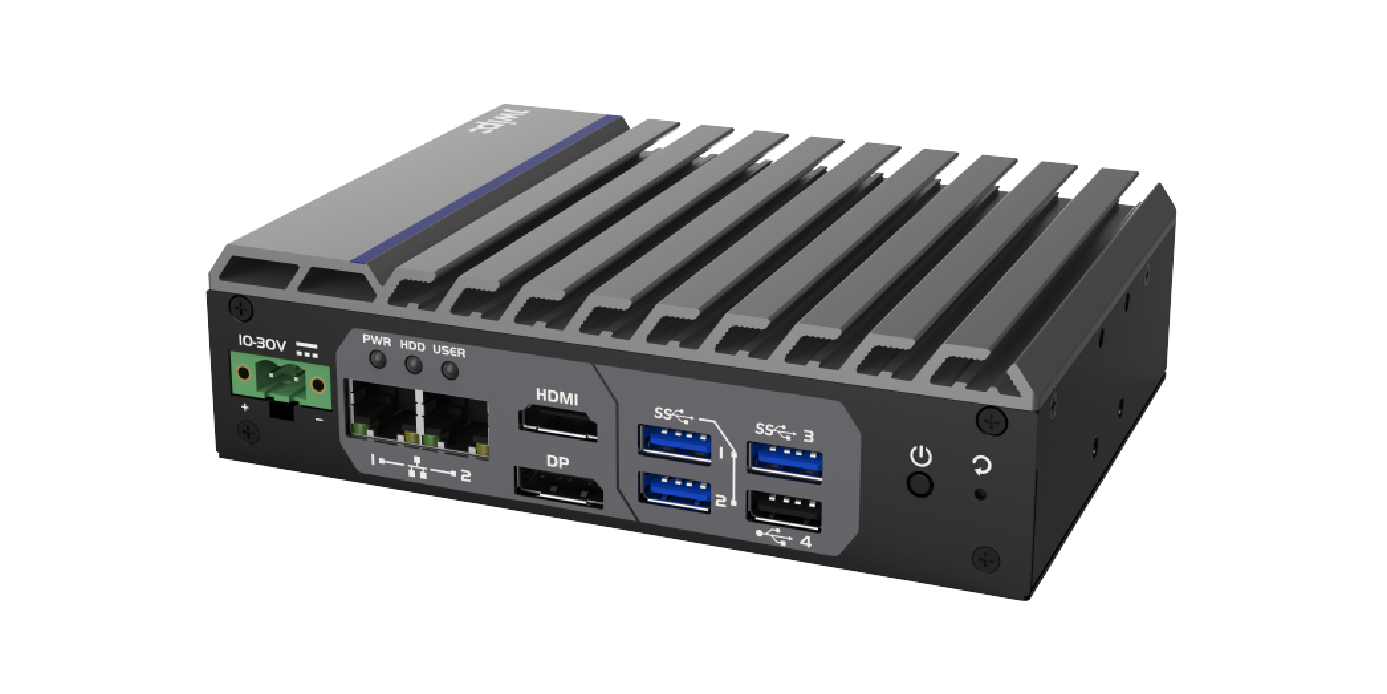

The JEC-3020 is an industrial-grade BOX PC featuring the Intel® Elkhart Lake J6412 processor, offering ultra-low power consumption and high cost efficiency. The product is designed with a fanless cooling system and an aluminum alloy chassis, making it suitable for applications with high dust, vibration, and interference. It includes a variety of interfaces, such as HDMI and DP display outputs, four Gigabit Ethernet ports, 4G/5G expansion support, and multiple USB and COM ports.

Intel Elkhart Lake J6412, 4 Cores, 10W CPU
Single SO-DIMM DDR4-3200, up to 32GB
Supports HDMI + DP Dual Displays
4 RJ45 Ethernet Ports, 4kV Surge Protection
Supports M.2 Key-B 3042/3052 for 4G/5G Modules
Supports M.2 Key-M 2242/2280 for SSD (SATA signal)
Supports M.2 Key-E 2230 for Wi-Fi/BT Modules
4 RS232/422/485 Serial Ports
Four USB 3.2 Gen 2 Ports
Industrial-grade Port Protection Against Static and Surges
Specification parameters

System

Processor

Intel® Elkhart Lake J6412

Chipset

Intel® Elkhart Lake SoC

BIOS

AMI UEFI BIOS

Memory

1xDDR4 3200MHz SO-DIMM, up to 32GB

OS

Windows10, Linux

I/O interface

USB

4xUSB 3.0, 2xUSB 2.0

Serial

2xRS232/422/485

GPIO

8bit GPIO, Phoenix terminal

LED

1xPower, 1xHDD

others

1xCANBus 2.0

1x I²C

Expansion

PCIe/M.2/Mini-PCIe

1xM.2 Key-B3042/3052 support 4G/5G(PCIe x1,USB2.0),

1xM.2 Key-E 2230 (PCIe x1, USB2.0)

Graphics

Graphics Processor

Intel®UHD Gen.10 Graphics Engines

Interface

1xDP, up to 4096 x 2160 @60Hz

1xHDMI,up to 4096 x 2160 @60Hz

Storage

SATA/M.2/mSATA

1xM.2 Key-M Socket (2280,SATA)

1 x 2.5" HDD/SSD storage bay(SATA3.0)

Audio

Audio IC

Realtek ALC897

Audio Interface

1xMic-in, 1xLine-out(2 in 1)

Ethernet

LAN IC

3xi226V,1xi210AT

 Interface

4xRJ45

Power

Power Input

12V to 36V, DC-in

Power Interface

2-Pole Phoenix DC plug in

Others

Watchdog Timer

1 to 255 sec./min. per step

TPM

Infineon SLB9670 supports TPM 2.0

Mechanical

Dimensions

200.4mm(L)×140.4mm(W)×52.7mm(H)

Weight

1.79KG

Mounting

Desk/Wall-mounting, Din rail mounting

Environment

Operating Temp.

-10~60℃w/ 0.7m/s airflow

Storage Temp.

-40~85℃

Humidity

10%~85% Humidity, non-condensing

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD:2Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis
