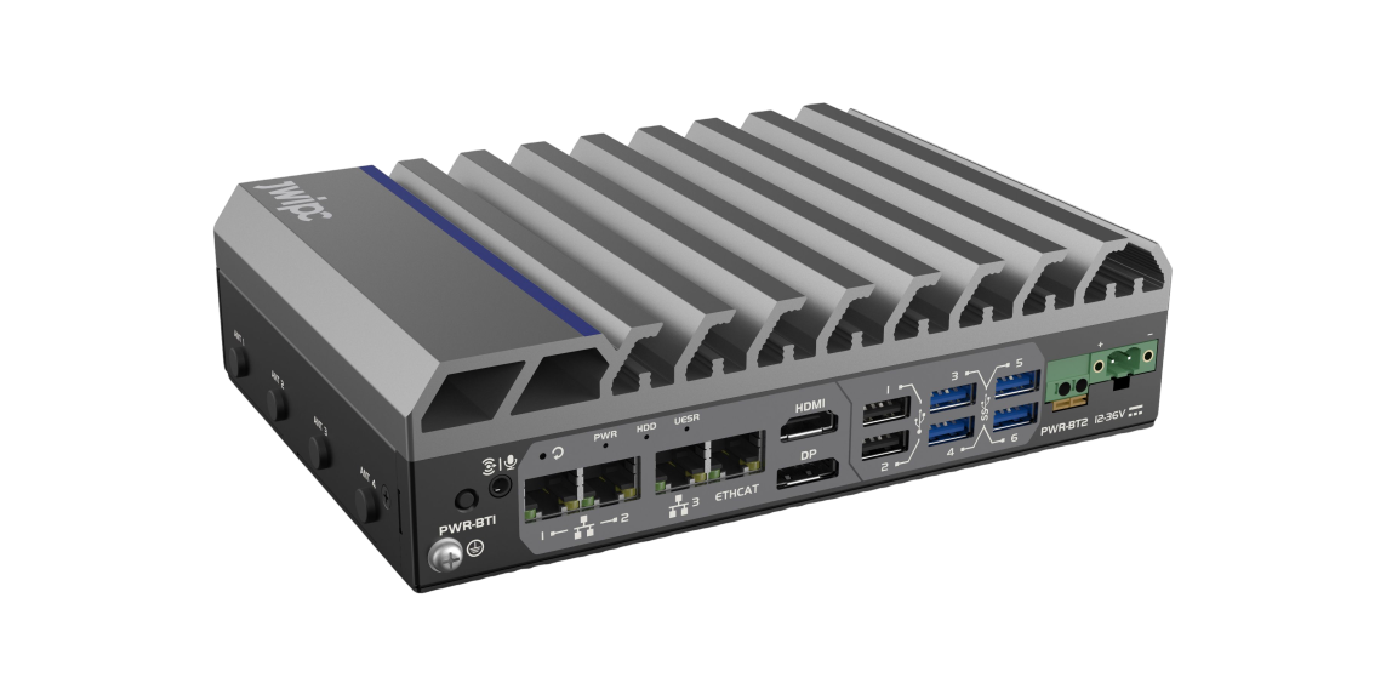

JET-3020
The JET-3020 industrial BOX PC is equipped with an Intel® Elkhart Lake J6412 quad-core low-power CPU and supports up to 32GB of DDR4 memory. It offers multiple expansion options, including M.2 slots for 4G/5G wireless connections and WiFi/BT modules, expanding its application range. The system features four high-speed RJ45 Ethernet ports and USB ports, ideal for connecting high-definition video devices. Additionally, the JET-3020 supports various display modes and resolutions, and utilizes high Tg wide-temperature PCB material to ensure stability in wide-temperature environments.
- •
- Intel® Elkhart Lake J6412 quad-core 10W CPU
- •
- Single SO-DIMM DDR4-3200, up to 32GB
- •
- Supports dual displays via HDMI and DP
- •

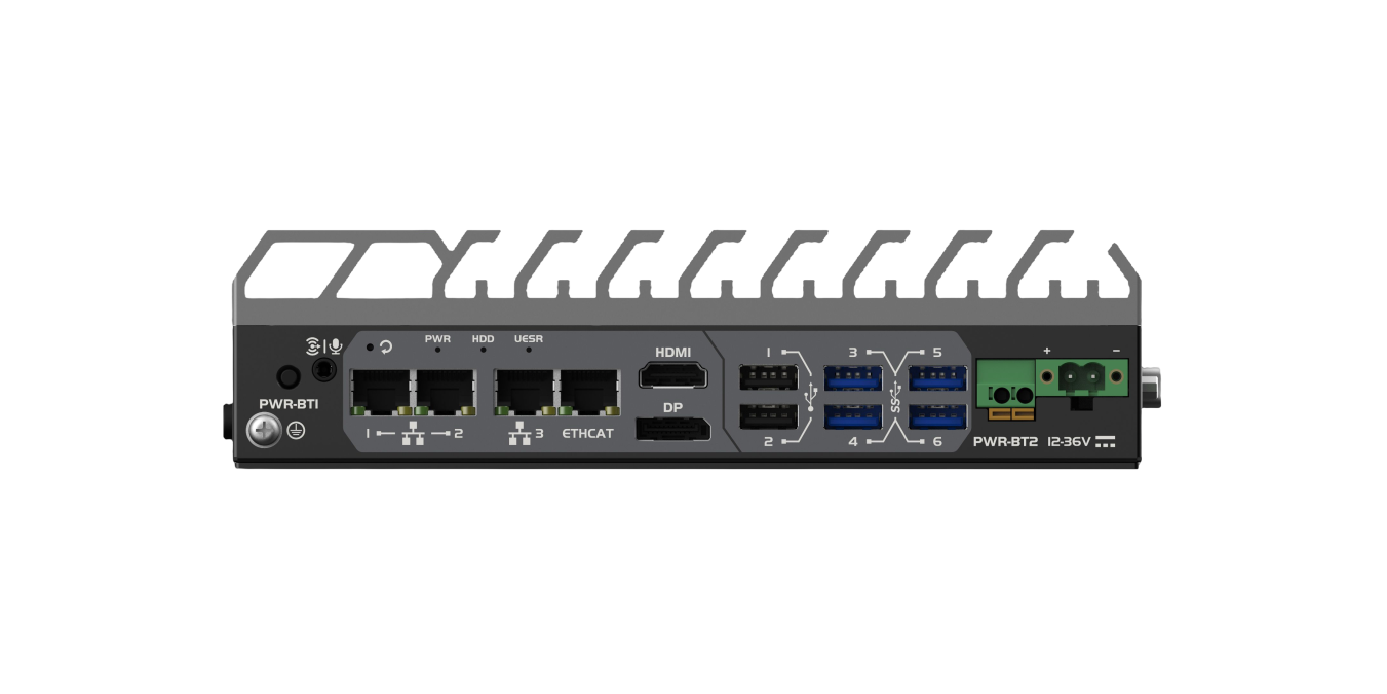

- Four RJ45 Ethernet ports with 4kV surge protection
- •

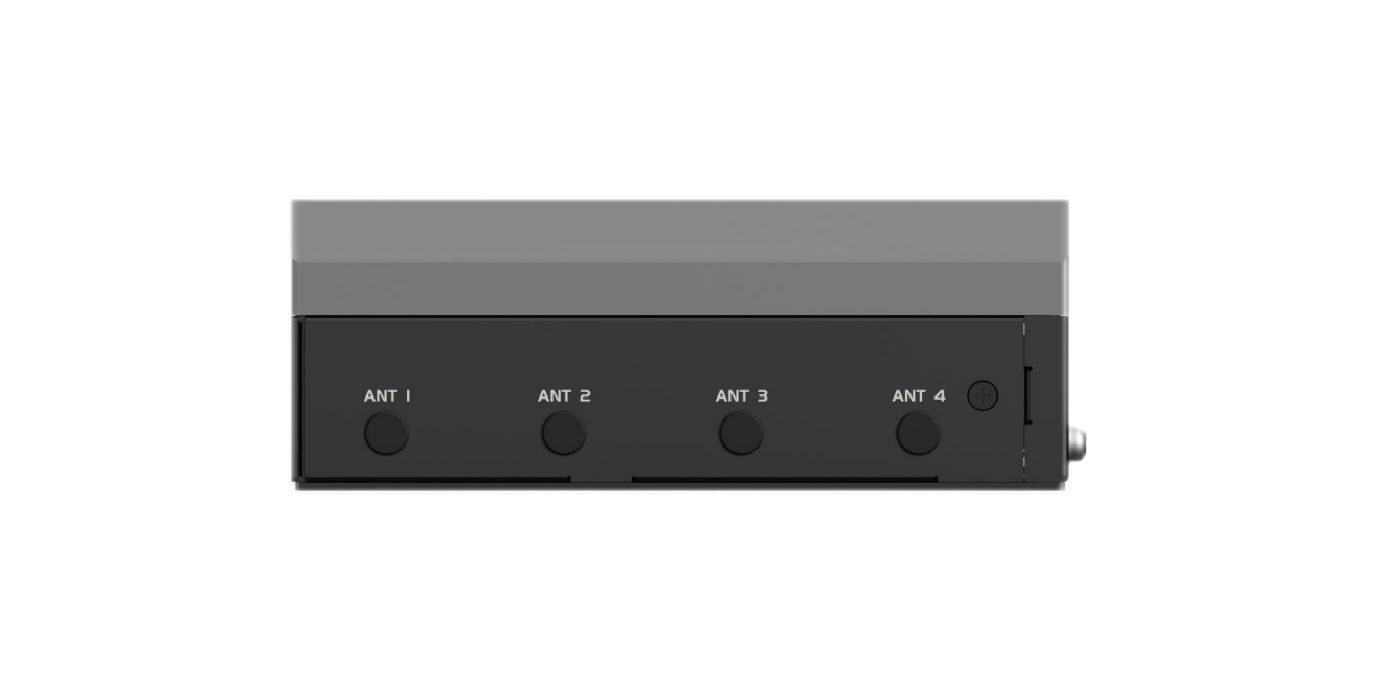

- Supports M.2 Key-B 3042/3052 for 4G/5G modules
- •
- Supports M.2 Key-M 2242/2280 SSD (SATA signal)
- •
- Supports M.2 Key-E 2230 for WiFi/BT modules
- •
- Four RS232/422/485 serial ports
- •
- Four USB 3.2 Gen 2 ports
- •
- Industrial-grade port protection against static and surges
System | Processor | Intel® Elkhart Lake J6412 |
Chipset | Intel® Elkhart Lake SoC | |
BIOS | AMI UEFI BIOS | |
Memory | 1xDDR4 3200MHz SO-DIMM, up to 32GB | |
OS | Windows10, Linux | |
I/O interface | USB | 4xUSB 3.0, 2xUSB 2.0 |

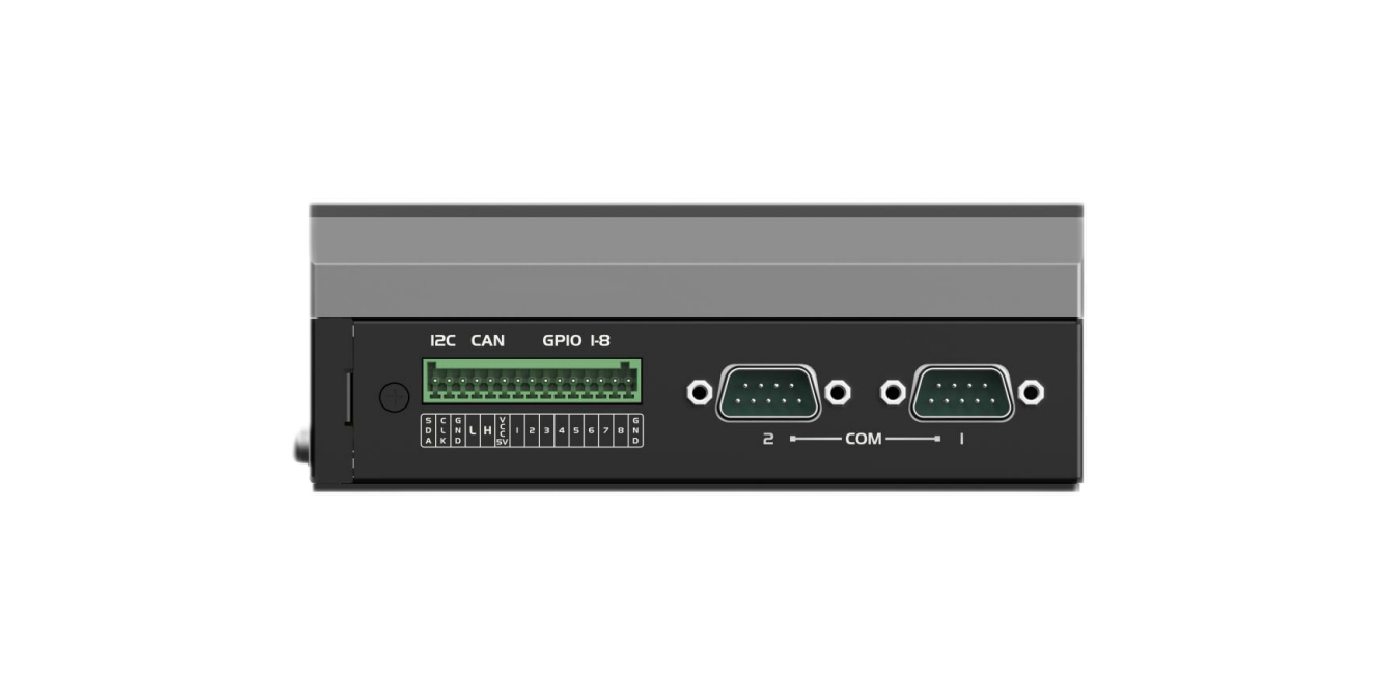

Serial | 4xRS232/422/485, 2xRS232(with cable) | |
GPIO | 8bit GPIO, Phoenix terminal | |
LED | 1xPower, 1xHDD | |
others | 1xCANBus 2.0 1x I²C | |
Expansion | PCIe/M.2/Mini-PCIe | 1xM.2 Key-B3042/3052 support 4G/5G(PCIe x1,USB2.0), 1xM.2 Key-E 2230 (PCIe x1, USB2.0) |
Graphics | Graphics Processor | Intel®UHD Gen.10 Graphics Engines |
Interface | 1xDP, up to 4096 x 2160 @60Hz 1xHDMI,up to 4096 x 2160 @60Hz | |
Storage | SATA/M.2/mSATA | 1xM.2 Key-M Socket (2280,SATA) 1 x 2.5" HDD/SSD storage bay(SATA3.0) |
Audio | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out（2 in 1） | |
Ethernet | LAN IC | 3xi226V，1xi210AT |
Interface | 4xRJ45 | |
Power | Power Input | 12V to 36V, DC-in |
Power Interface | 2-Pole Phoenix DC plug in | |
Others | Watchdog Timer | 1 to 255 sec./min. per step |
TPM | Infineon SLB9670 supports TPM 2.0 | |
Mechanical | Dimensions | 200.4mm(L)×140.4mm(W)×68.7mm(H) |
Weight | 1.93KG | |
Mounting | Desk/Wall-mounting, Din rail mounting | |
Environment | Operating Temp. | -10~60℃w/ 0.7m/s airflow |
Storage Temp. | -40~85℃ | |
Humidity | 10%~85% Humidity, non-condensing | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis |
