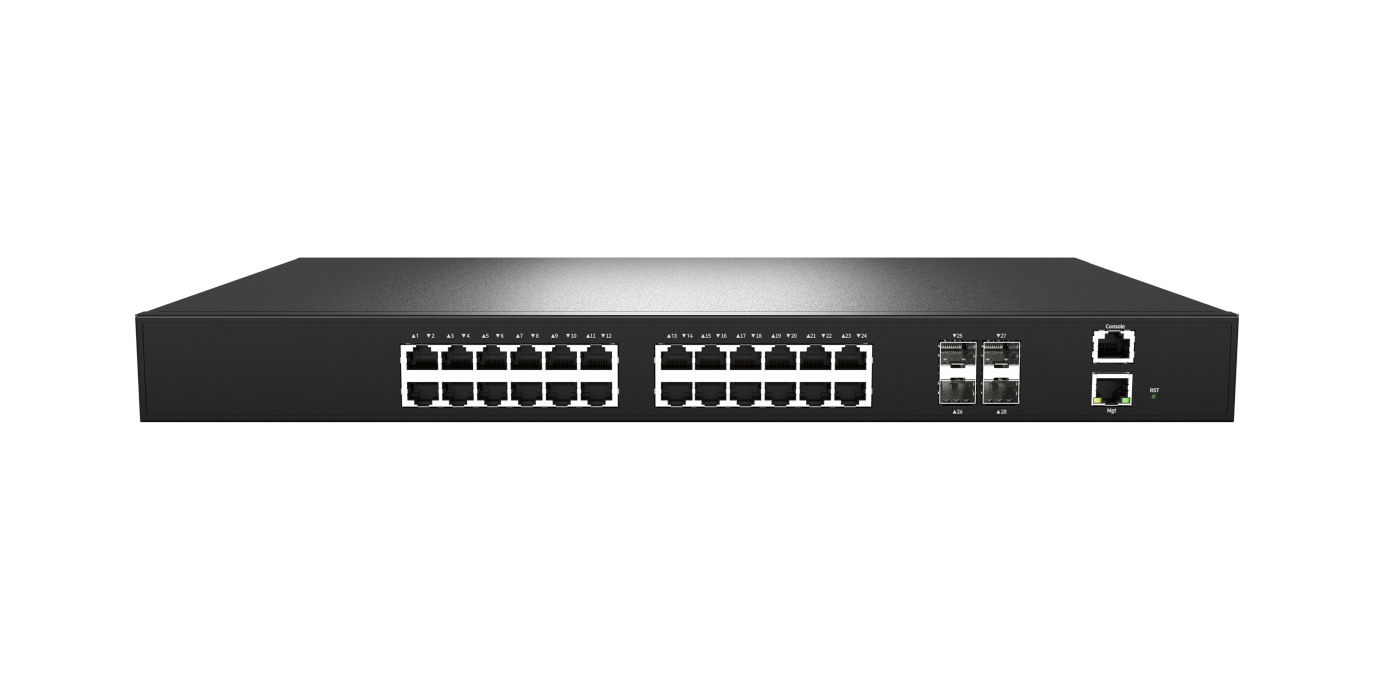

S5600-28TS
The machine has multiple features that bring high availability, comprehensive security, strong multicast control and advanced QoS to the network edge, as well as static and dynamic routing capabilities.
- •
- Dynamic routing and static routing
- •
- Supports TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2. Supported ERPSv1, STP/RSTP, and MSTP
- •
- Easily manage your network through a web browser, CLI, remote login/serial console
Performance | Switching capacity | 128Gbps |
Auto-negotiation | Support | |
Auto-MDI/MDIX | Support | |
Ports | RJ45 | 24*10/100/1000MBASE-T RJ45 Ports |
| SFP | 4*10G SFP Ports | |
PoE | 802.3af/at | N/A |
Led | Port LED | Green: link/active |
Power Supply | Inputrange | 100~240V,50/60Hz,redundancy |
Connector | AC | |
System power consumption | 21W | |
Physical Parameters | Dimension (Wx D x H) mm | 440mm(L)×280mm(W)×44mm(H) |
Installation | Cabinet Installation | |
Heat dissipation | Fanless natural heat dissipation | |
Environments | OperatingTemperature | -0~50℃(32~122 °F) |
StorageTemperature | -40~70℃(-40~158 °F) | |
Operating Humidity (non-condensing) | 10 to 95% (non-condensing) | |
Storage Humidity | 10 to 95% (non-condensing) | |
Certification | FCC ClassA | Support |
CE | Support | |
CB | Support | |
UL | Support |
L2Features | VLAN | IEEE802.1QVLAN; IEEE802.1vProtocol-basedVLAN; Port-basedVLAN; IPSubnet-basedVLAN, MAC-basedVLAN,VoiceVLAN; GVRP; QinQ |
Port | Port statistics Flow control Port speed limit Port protection Port mirroring Port MAC address learning limit | |
Link aggregation | Static link aggregation; IEEE802.3ad with LACP; Unicast/Multicast load balance overtrunk port | |
RedundancyProtocols | EAPS ERPSv1 STP/RSTP/MSTP | |
ACL | L3/L4 ACL StatisticsACL VLANACL IPv4/IPv6 ACL | |
QOS | Traffic Classification (802.1p/ToS/port/DiffServ); SP,WRR,SP+WRR; 8 queues/port ofPriorityQueues | |
IGMP | IGMP v1v2v3 IGMP Snooping | |
Storm Control | Broadcast/Multicast/ Unknown UnicastStorm Control | |
DHCP | DHCP Relay DHCP Ciient DHCP Snooping | |
Security | RADIUS/TACACS+, IEEE802.1X; Port authentication, MACAuthentication bypass; DHCPSnooping (Option 82), IPSource guard, DoSProtection; HTTPSandSSLv3; | |
IPv6 | IPv4/IPv6 DualProtocolStack; IPv6 Neighbor Discovery; IPv6 Neighbor DiscoverySnooping; IPv6 DHCPclient, IPv6 DHCPSnooping; MVR overIPv6、SNMPoverIPv6、HTTPoverIPv6、SSH overIPv6、Telnet overIPv6 | |
Management | CLI via console port orTelnet,Web management,SNMPv3; RMON (groups 1, 2, 3 and 9); MIBII; DHCPclient, DCHPRelay, DHCPdynamic provision option 66,67 FTP/SFTP/TFTPclient; SNTP/NTP; NTP; LLDP; OAM; UDLD; SMTP; sFlow; MLDv1/v2; MLD snooping; ping; Traceroute; syslog | |
L3Features | Routing | Static Unicast Routes; RIPv1/v2; OSPF |
