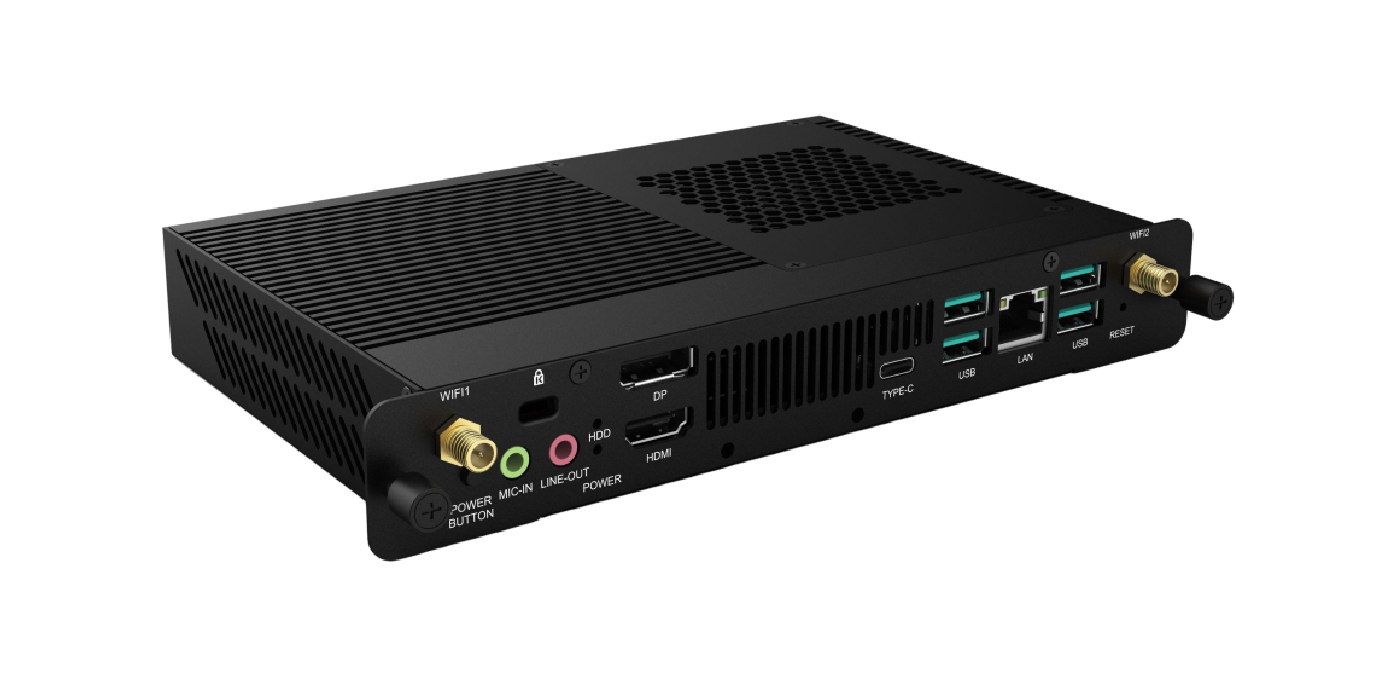

S096-Q570
Powered by the Intel Comet Lake-S platform and referencing standard OPS standards, it is easy to install, upgrade and maintain, making it ideal for conference solutions, education and digital signage applications.
- •
- Supports Intel Comet Lake-S platform processors
- •
- Dual channel SoDIMM DDR4 memory
- •
- 1 x M.2 Key M 2280 size for NVMe/SATA SSD
- •
- 4 x USB3.1, 1 x Type-C
- •
- Display: 1 x HDMI1.4, 1 x DP1.4, 1 x HDMI2.0(80pin)
- •
- Support WIFI6 and Gigabit Ethernet
- •
- Supports TPM secure encryption module
CPU | CPU | Intel® Comet Lake-S Processor LGA1200 |
TDP | 35 W | |
PCH | Q570 | |
Display | Graphic card | Intel® UHD Graphics 630 |
Multi displays | Support Dual displays | |
Interface | 1 x DP1.4(5K 30Hz), 1 x HDMI1.4(4K 30Hz) , 1 x 80PIN（HDMI2.0 4K 60Hz output) | |
Network | Lan IC | 1 x Intel I219LV |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | M.2 Key E 2230 Module | |
Wireless Interface | Wi-Fi/BT module | |
I/O interface | Display | 1 x HDMI 2.0 1 x DP 1.4 |
USB | 4 x USB3.2 Type-A, 1 x Type-C(USB3.2) | |
Button | 1 x PowerButton, 1 x Clear CMOS Key | |
LAN | 1 x RJ45 | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |
JAE | 1 x JAE 80pin : 1 HDMI 2.0, 2 USB2.0 ,1 USB3.0，TTL，Audio out | |
System | Memory | Dual SoDIMM DDR4 Max. 32 GB |
Storage | 1* M.2 Key M 2280 Size For NVMe/SATA SSD | |
OS | Window11 /Windows10/ Linux | |
WatchDog | Support | |
Auto Power On | Yes | |
RTC | Yes | |
Power Input | 12-19v 2.5/5.5 DC-In | |
Dimension | 119mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -5~45℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
