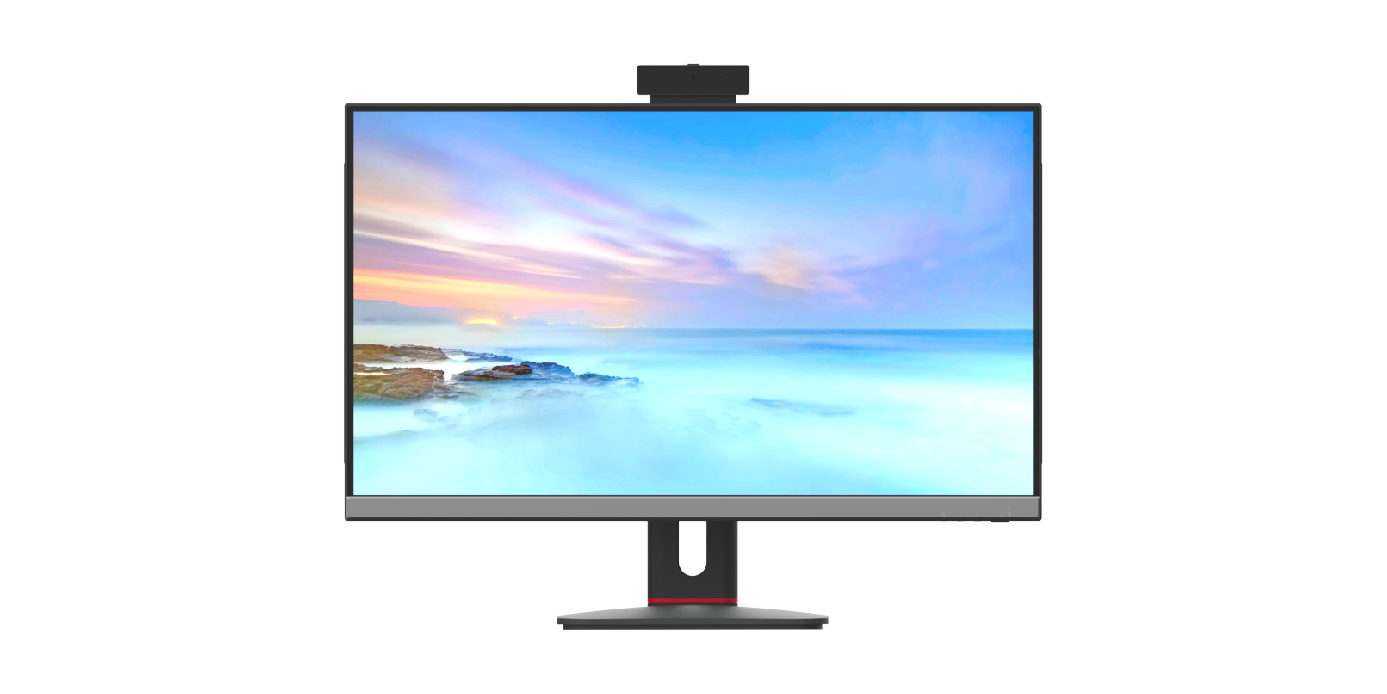

CA27A

27" Cloud all-in-one PC

The 27-inch ARM-series cloud-based all-in-one computer boasts a panoramic field of view, secure operation, and display expansion capabilities. It is extensively utilized across various cloud office environments

•: ARM architecture RK3568 platform 27-inch all-in-one machine, which is both a cloud computer and a monitor

•: Board attached 2GB LPDDR4/4X, board attached 32GB EMMC, support wired/wireless networking

•: Independent magnetic camera to protect privacy and security

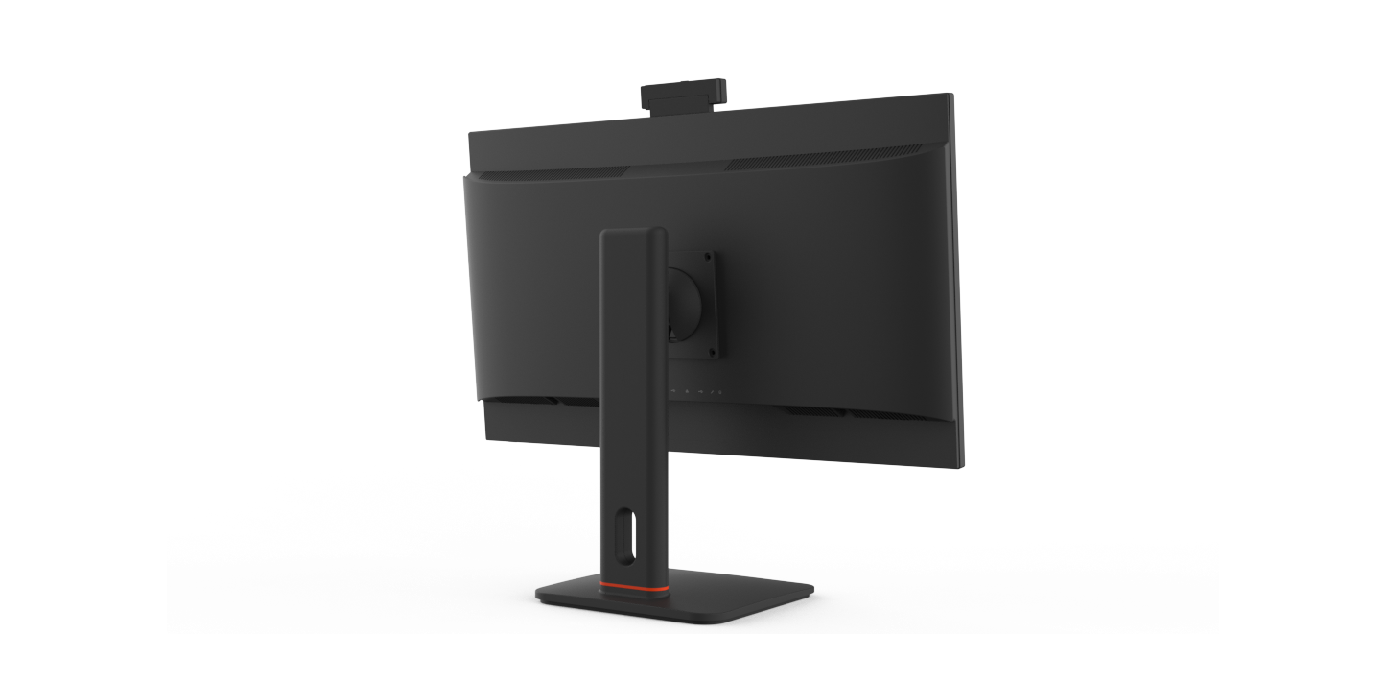

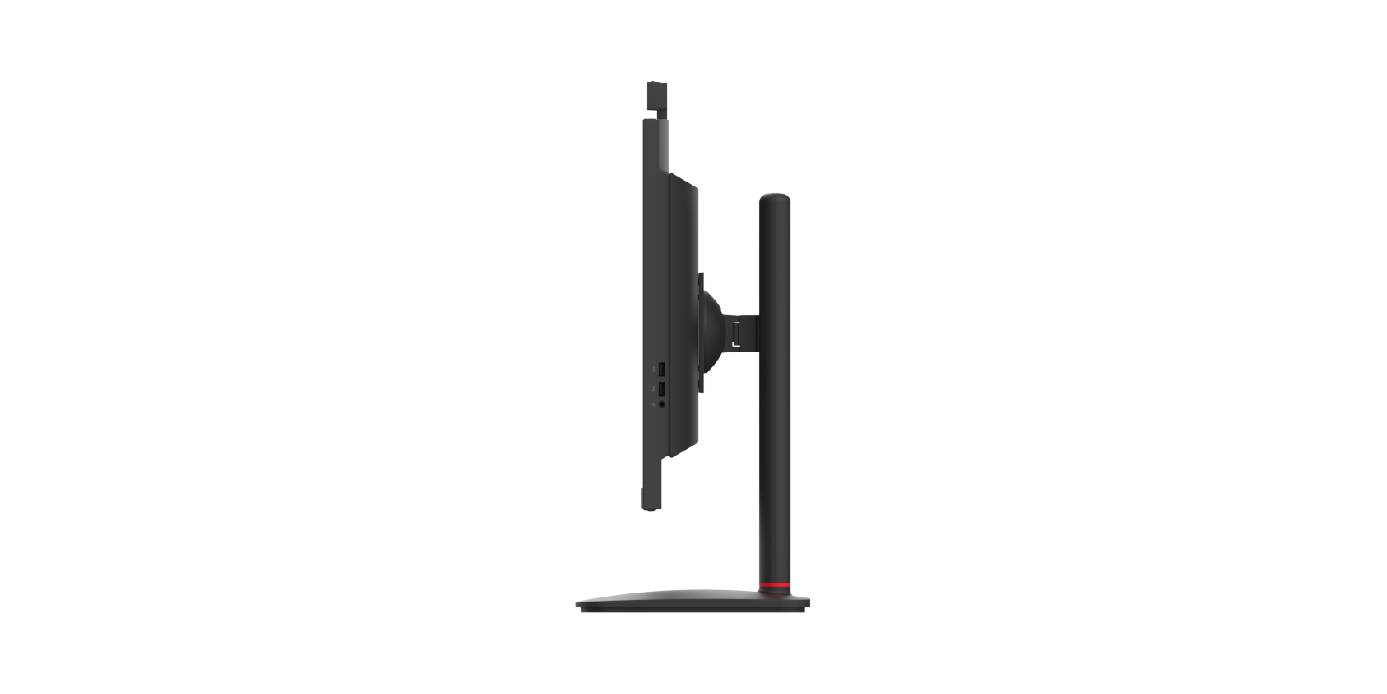

•: Lift and rotate the support, horizontal screen vertical screen more freely

•: Standard VESA specifications, support wall hanging

Message consultation Business Consulting

Specification Comparison

Specification parameters

CPU	CPU	RK3568，4 Core A55, 2.0GHz
	TDP	6 W
	NPU	1 TOPS
Display	Graphic card	ARM Mail-G52
	Multi displays	Extended display
	Interface	1 x HDMI-Out 4K @30Hz 1 x HDMI-In 1080P @60Hz
Network	Lan IC	RTL8111H
	Lan Interface	100/1000Mbps
	Lan Connector	1 x RJ45 Ports
	Wireless Type	SDIO
	Wireless Interface	2T2R, 2.4G/5G WiFi5 /BT5.0
	4G/5G	N/A
I/O interface	Serial Port	N/A
	USB	2 x USB3.0, 2 x USB2.0
	Button	1 x Volume up, 1 x volume down, 1 x system settings, 1 x screen off, 1 x Power Button
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Audio Jack（Mic-In + Line Out）
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	2GB LPDDR4/4X, Optional 4GB
	Storage	16GB EMMC, Optional 32GB
	OS	Android 11
	LCD	27 inch, 1920*1080 IPS, LVDS
	MCU	Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)
	Camera	Option magnetic Camera
	Speaker	2 x 4Ω / 2.5W
	Power Input	12v 2.5/5.5 DC-In
	Dimension	616mm(L) x 499mm(W) x 240mm(H)
	Operating Temp.	0~40℃
	Operating Humidity	20%~80% non-condensing
	Storage Temp	-20~65℃
	Operating Humidity	20%~95% non-condensing
