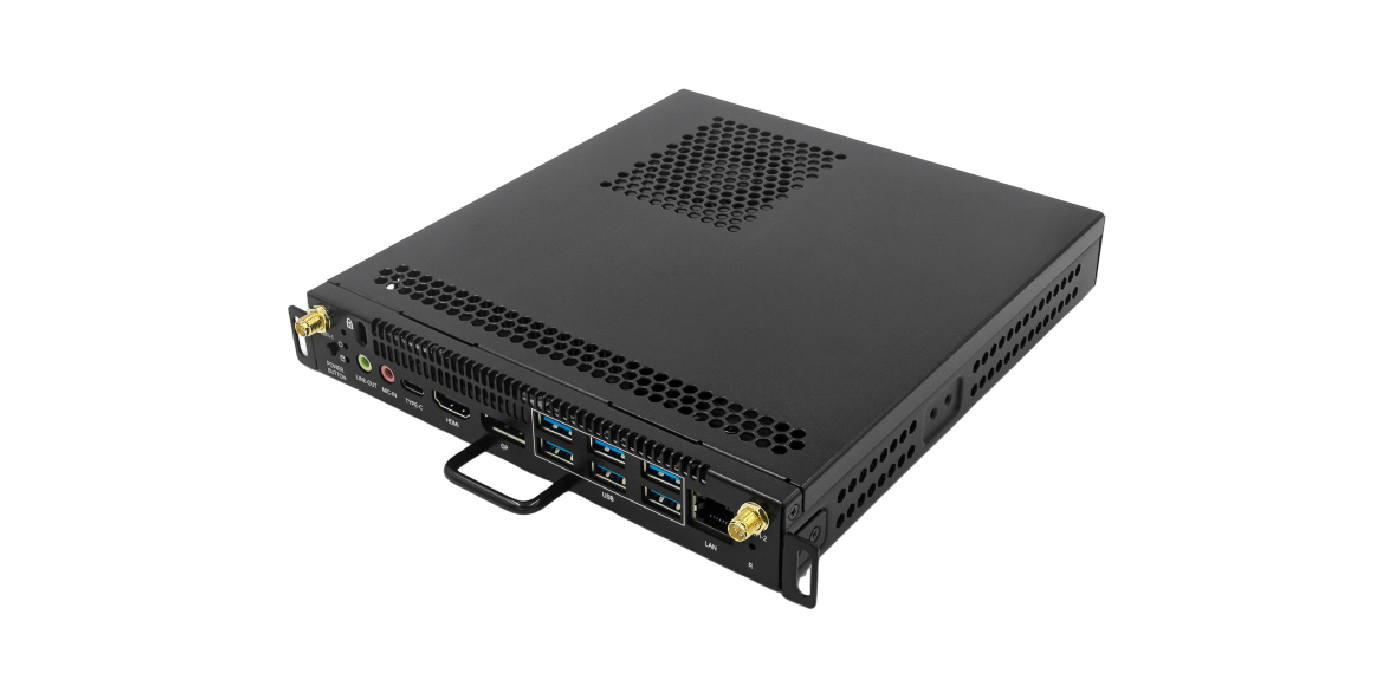

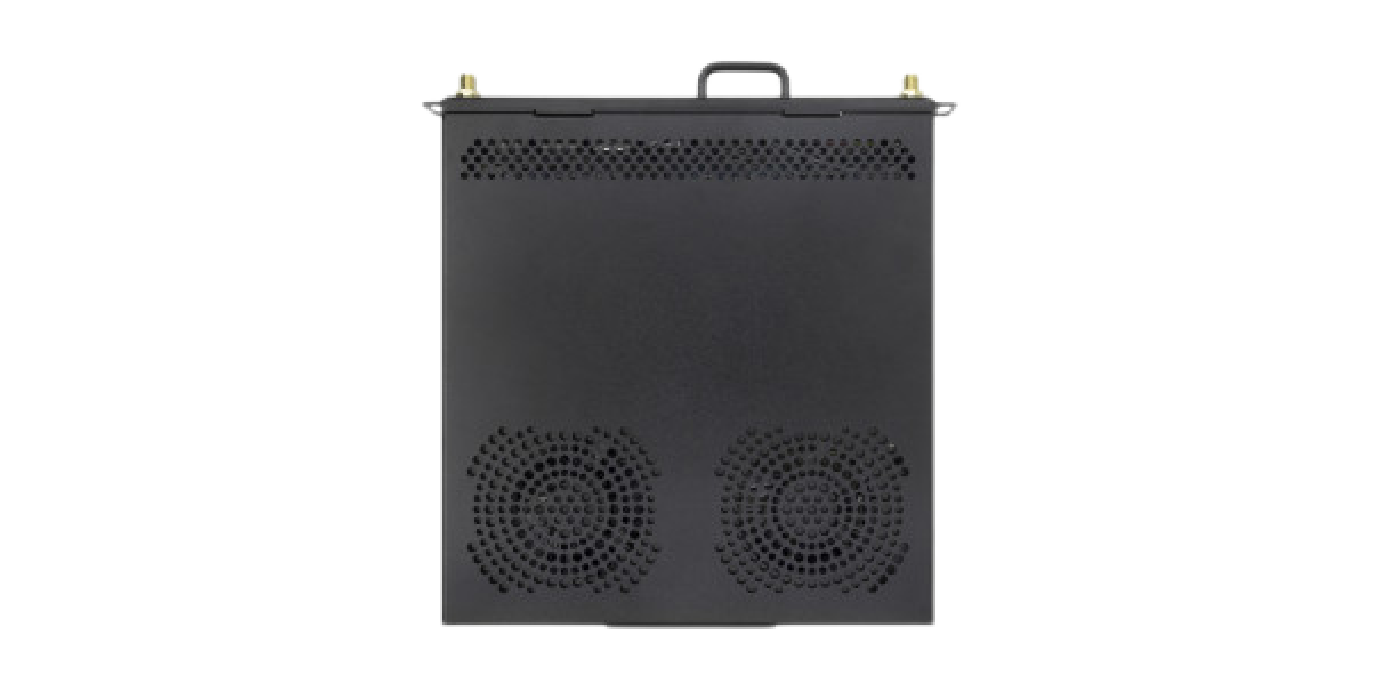

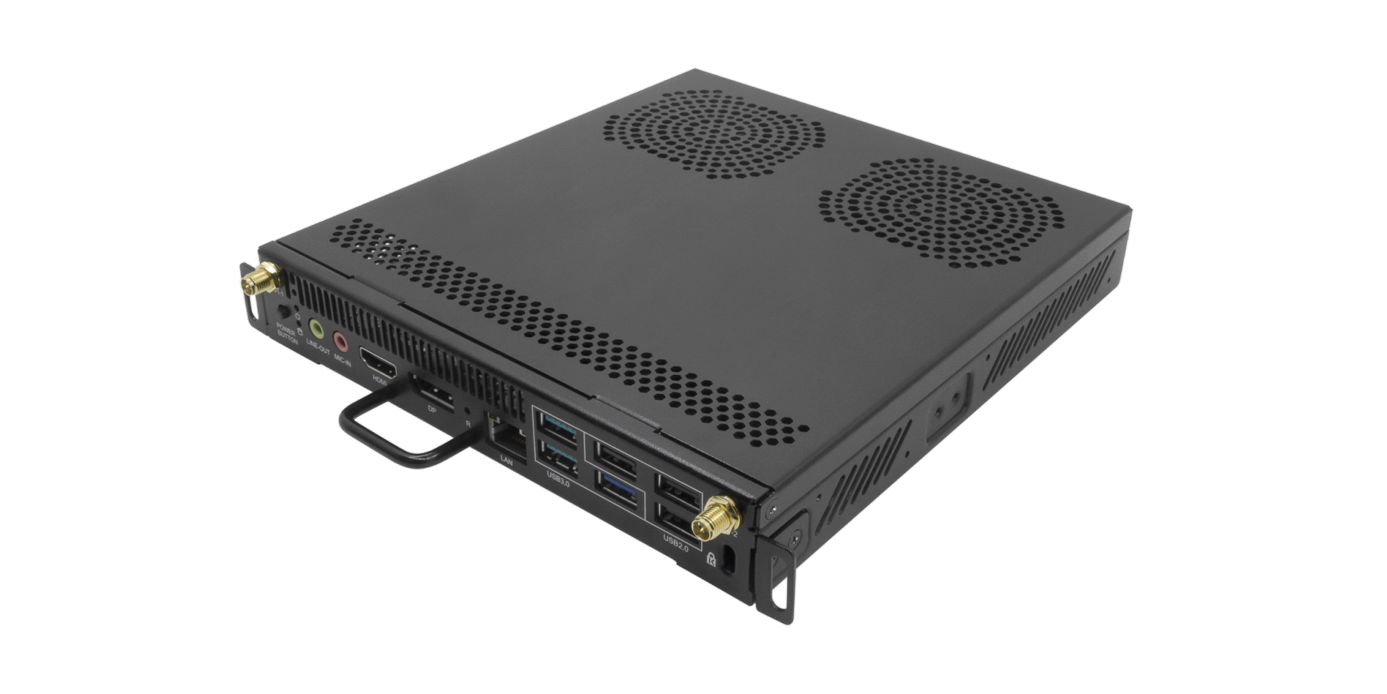

S092T
It uses the Intel Rocket lake-S processor and refers to the standard OPS-C standard. It is widely used in large educational and conference screens to provide high-performance computing units for education and conferences
- •
- Support Intle 10, 11 generation i3/i5/i7 S series CPU
- •
- Two SO-DIMMs for DDR4 support a maximum of 32GB. Standard 80PIN connector
- •
- Refer to Intel OPS-C standard design specification
- •
- Support M.2 2280 SSD
- •
- Support Wifi6&BT5.2
CPU | CPU | Intel 10/11th Rocket Lake-S, FCLGA1200 |
TDP | 65 W | |
Chipset | H510 | |
Display | Graphic card | Intel UHD Graphics |
Multi displays | Support Three displays | |
Interface | IO：1 x HDMI 1.4； 1x DP 1.2 80pin: 1xHDMI2.0 | |
Network | Lan IC | 1x RTL8111H/ RTL8111M |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | WIFI 6e&BT5.2 Module | |
Wireless Interface | M.2 Key E 2230 Module | |
I/O interface | Display | 1 x HDMI 1.4 1 x DP1.2 |
USB | 3 x USB 3.2 ；3 x USB 2.0 ； | |
Button | 1 x PowerButton, 1 x Reset Button 1 x Recover | |
Slot | 1 x RJ45 | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |

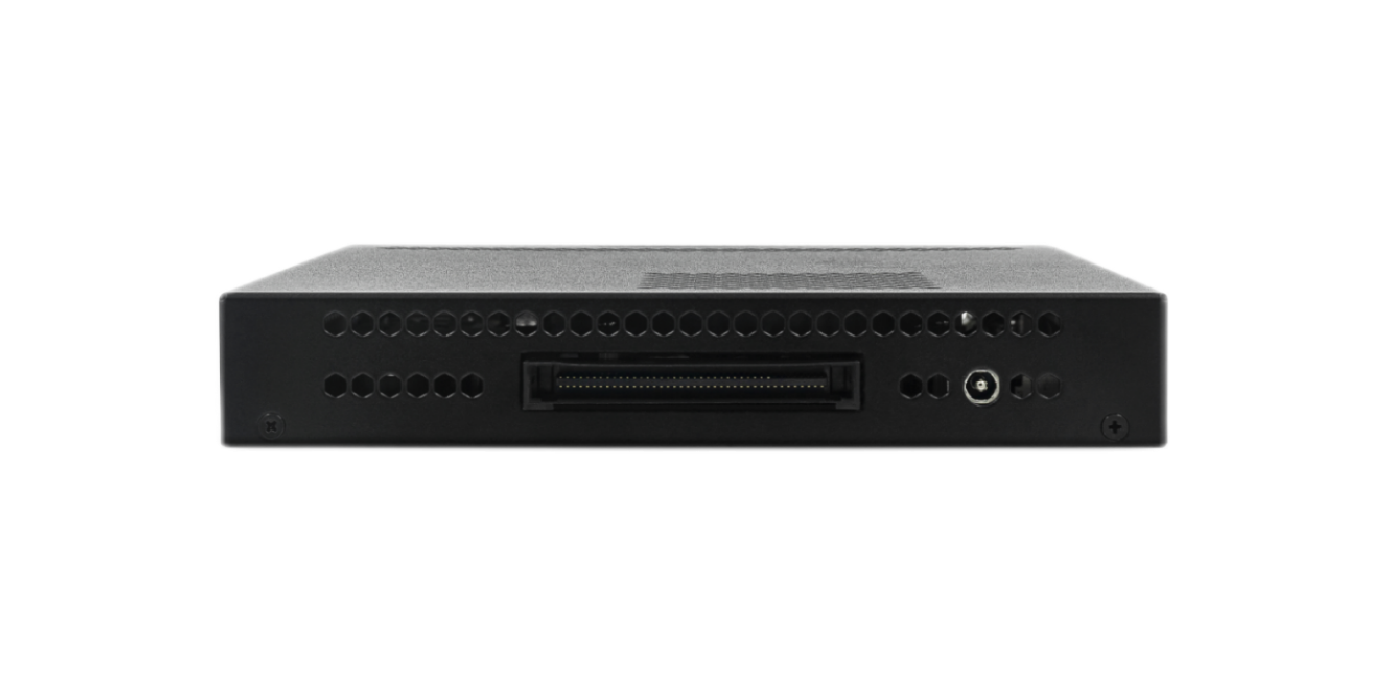

JAE | 1 x JAE 80pin: HDMI2.0，2 x USB2.0，1 x USB3.0，TTL，1 x Line Out | |
System | Memory | Dual SoDIMM DDR4 Max. 64 GB |
Storage | 1 x M.2 2280, SATA/PCIE Self-adaptation | |
OS | Window11 /Windows10/ Linux | |
WatchDog | Support | |
Auto Power On | Yes | |
TPM2.0 | Option | |
RTC | Yes | |
Power Input | 12-19v 2.5/5.5 DC-In | |
Dimension | 195mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -10~50℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
