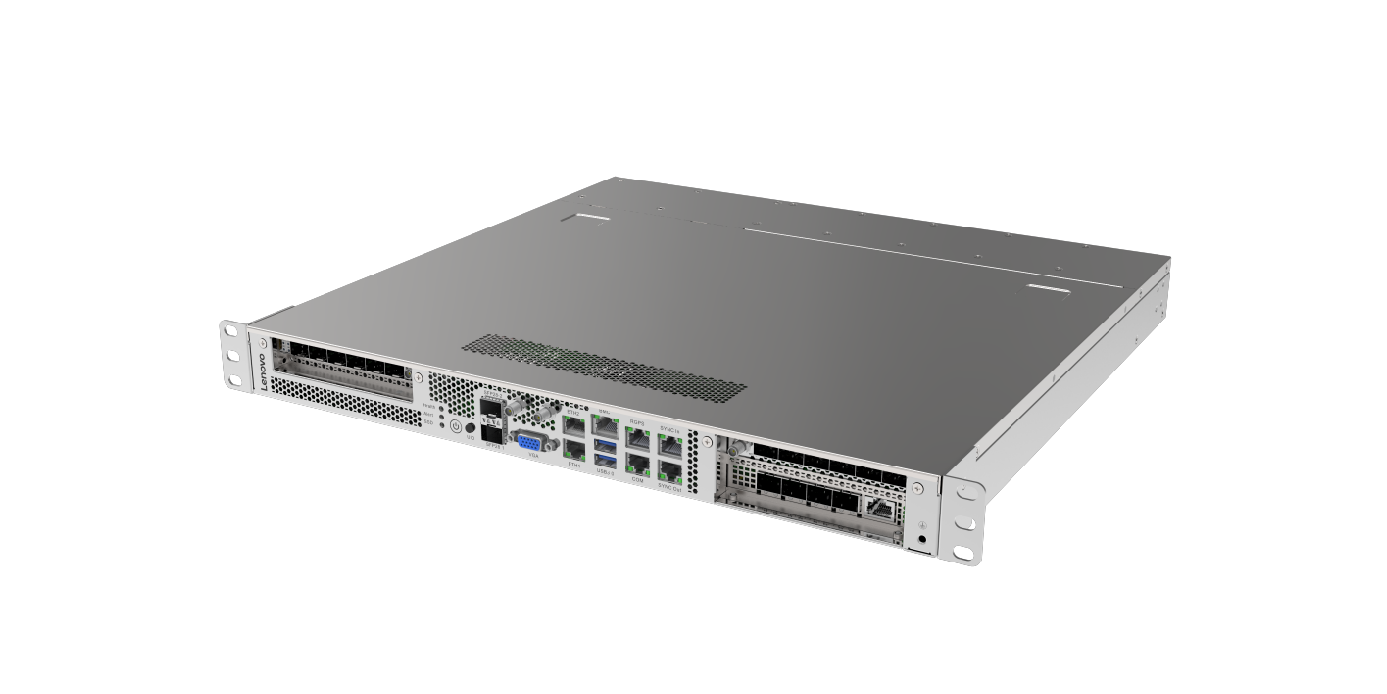

SYS-6023H
SYS-6023H series products, based on the 2/3 Haiguang 7000/5000 processor and newly built. From the exterior design to the internal structure, the new Haiguang server reflects the company's pursuit of "technology/innovation/environmental protection" business philosophy, to provide customers with a high performance, high reliability, low power consumption, the best heat dissipation 2U server. Whether it is enterprise-class data centers or developing enterprise applications, the product can provide a variety of flexible configuration options, can better meet the growing server needs of customers, and provide reliable hardware support for data storage, big data processing, virtualization and other applications, is the best choice for large-scale industries, enterprises and government users with high requirements for stability and practicality.
- •
- Stable and innovative bottom design, with accurate airflow guidance and fan adjustment mechanism, create a stable and reliable model
- •
- Support 2/3 Haiguang 7000/5000 processor
- •
- Adopts the latest DDR4 memory technology and supports 8 DDR4 DIMMs, up to 2TB 3DS RDIMMs. Supports three standard PCIe 3.0 x16 (x16 slots) and three standard PCIe 3.0 x8 (x8 slots) for flexible expansion. Support hardware monitoring, can remotely monitor the host power supply, voltage, temperature, fan and other hardware working status
- •
- Supports up to eight 3.5-inch (2.5-inch) hot-swappable hard drives
- •
- Supports two gigabit network ports, two 2.5G gigabit network ports, and one management port.
System Control | CPU Model | 2/3rd Hygon 7000/5000 processors TDP280W |
Number of CPUs | 1 | |
Chipset | CPU integrated | |
Memory | Type | 8 x DIMM slots, supports up to 2TB 3DS RDIMM |
Graphics | Chip/Interface | ASPEED AST2500 BMC, 1 * VGA port |
Storage | External | Supports 8 * front-mounted 3.5-inch 6G SATAIII hot-swappable hard drives, 2 * rear-mounted 2.5-inch hard drives (optional) supports Raid 0,1,5,10 |
M.2 | 2 * M.2 interfaces, supports 2280, 2240 | |
Internal | 2 * 2.5-inch hard drive bays | |
Gigabit Network | Network card IC | Intel i210 Enterprise-Class Gigabit Network Controller |
Network Card Bandwidth | 2 * Gigabit networks, supports 10/100/1000Mbps | |
Network Card Connector | 1 * dual-layer RJ45 connector | |
2.5G Gigabit network | Network card IC | Intel i225 Enterprise-Class Gigabit Network Controller |
Network Card Bandwidth | 2 * Gigabit networks, supports 10/100/1000/2500Mbps | |
Network Card Connector | 1 * dual-layer RJ45 connector | |
IPMI management interface | Type | 1 * standard RJ45, 10/100/1000Mbps network interface |
USB | USB 3.0 | 2 * USB 3.0 (rear IO) |
USB 2.0 | 2 * USB 2.0 (rear IO) 2 * USB 2.0 (front IO) | |
Serial port | Serial port | 1 * COM interface |
PCIe Expansion | PCIe Expansion | 3 * standard PCIe 3.0 x16 (x16 slots), 3 * standard PCIe 3.0 x8 (x8 slots) |
Rear window indicator lights | Rear window indicator lights | 1 * illuminated UID switch |
Front panel | Switch | 1 * power switch; 1 reset switch |
Indicator Lights | 1 * power indicator light; 1 * fan abnormality indicator light; 1 * hard disk activity indicator light; 2 * network indicator lights | |
Power source | Power input | 1+1 redundant 550W power supply |
Fan | Fan | 3 * 8038 fans, hot-swappable; |
Dimensions | Dimensions | Dimensions: 444mm (W) x 87.6mm (H) x 670mm (D) |
Temperature / humidity requirements | Temperature | Operating temperature: 0°C to 35°C; Storage temperature: -40°C to 70°C |
Humidity | Operating humidity requirements 8% to 90% non-condensing; Non-operating humidity requirements: 5%- 95% with no condensation | |
Installation kit | Rails | Supports rails (optional) |
