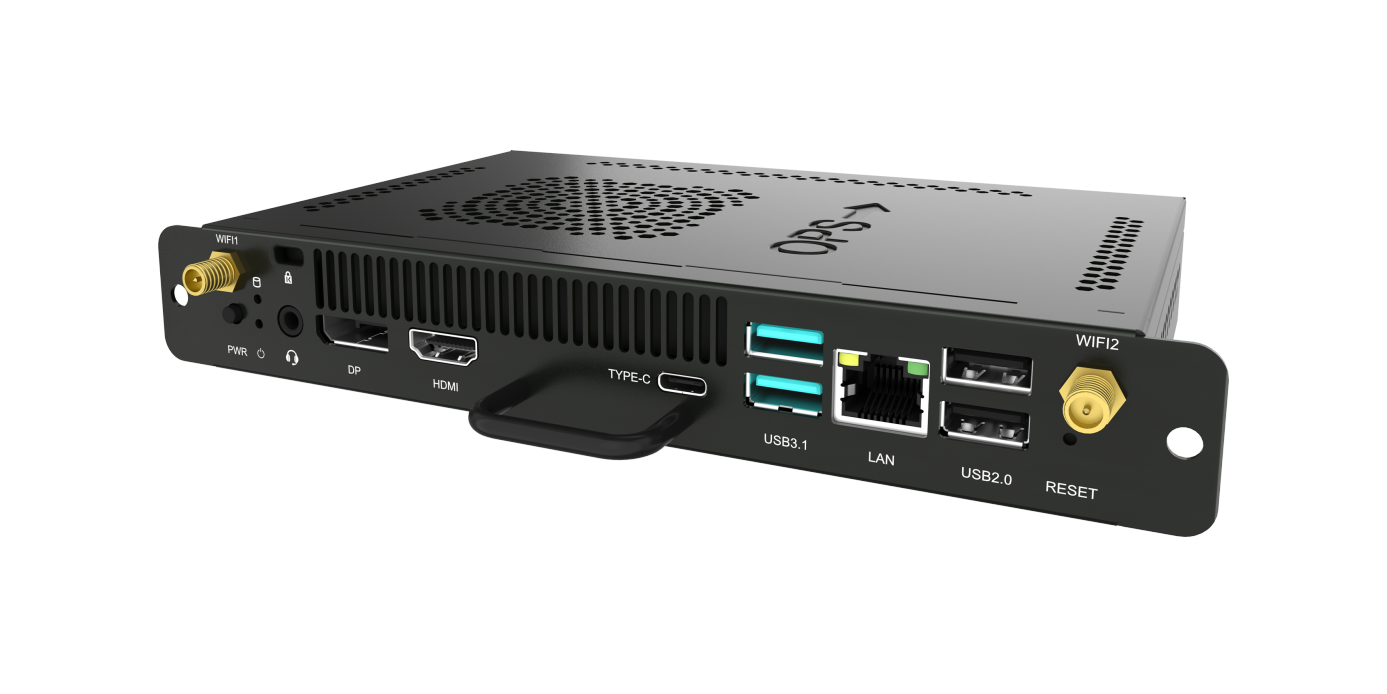

S104C
Powered by the Intel 12th Gen Alder Lake-P platform, this cutting-edge Intel 12th Gen OPS PC is designed to deliver outstanding performance with Intel Iris Xe Graphics. Engineered to meet OPS (Open Pluggable Specification) standards, it ensures seamless installation, effortless upgrades, and hassle-free maintenance. JWIPC’s Intel 12th Gen OPS PC provides a powerful, reliable, and future-proof solution for diverse applications in conferencing, education, and commercial environments.
- •
- Support Intel Alder Lake-P platform processors
- •
- Dual channel SoDIMM DDR4 memory
- •
- 1 x M.2 Key M 2280 size for NVMe/SATA SSD
- •
- 2 x USB2.0, 2 x USB3.1, 1 x Type-C
- •
- Display: 1 x HDMI1.4, 1 x DP1.4, HDMI2.0 + DP1.4(80pin)
- •
- Support WIFI6, Mini PCIe or CNVi interface
- •
- Support 1000M Ethernet RJ45 interface
- •
- Supports TPM secure encryption module
Elevate your business operations with JWIPC’s cutting-edge Intel 12th Gen OPS PC, designed to deliver unmatched performance, reliability, and flexibility.
Built with Intel 12th Gen Alder Lake processors, our OPS PCs combine high-performance cores with energy-efficient architecture, ensuring seamless multitasking processing.
JWIPC’s Intel 12th Gen OPS Slot-in PCs feature a sleek, space-saving design, making them ideal for integration into slim displays and confined spaces.
With robust construction and advanced thermal management, JWIPC’s OPS systems ensure 24/7 operation in demanding environments.
Our 12th Gen OPS Systems meet international standards, including CE, FCC, and RoHS, ensuring smooth deployment across global markets.
CPU | CPU | Intel® Alder Lake-P Processor |
TDP | 28W | |
Display | Graphic card | Intel® Iris® Xe Graphics |
Multi displays | 3 simultaneous 3 displays | |
Interface | 1 x DP1.4(8K30Hz), 1 x HDMI1.4(4K30Hz), 1 x 80PIN（1 x HDMI2.0 4K60Hz | |
Network | Lan IC | 1 x Realtek 8111H Co-Lay Intel Ethernet Connection I226LM |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | WIFI_BT module | |
Wireless Interface | 1 x M.2 2230 slot for WIFI_BT module | |
4G/5G | Optional | |
I/O interface | Display | 1 x HDMI-Out 4K@60Hz, 1 x DP1.4(8K30Hz) |
USB | 2 x USB 2.0，2 x USB3.0, 1 x Type-C（USB3.1) | |
Button | 1 x PowerButton, 1 x Clear CMOS Key | |
Slot | 1 x SIM Card Slot (Optional) | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |
JAE | 1 x 80PIN jJAE Support 1 x HDMI2.0 4K60Hz output,1 x DP1.4 5K60Hz output 2 x USB2.0, 1 x USB3.0,1 x TTL | |
System | Memory | Dual channel SO-DIMM DDR4-3200MHz MAX 32G |
Storage | 1 x M.2 2280 size for NVMe/SATA SSD | |
OS | Windows11/Linux | |
WatchDog | Support | |
Auto Power On | Yes | |
RTC | Yes | |
Power Input | 12~19V DC IN, 2.5/5.5 DC Jack & JAE 80p | |
Dimension | 119mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -5~45℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 10%~90% non-condensing |
Obtain comprehensive product information. For various needs from product definition to software and hardware development, we will arrange product engineers to serve you as soon as possible.
