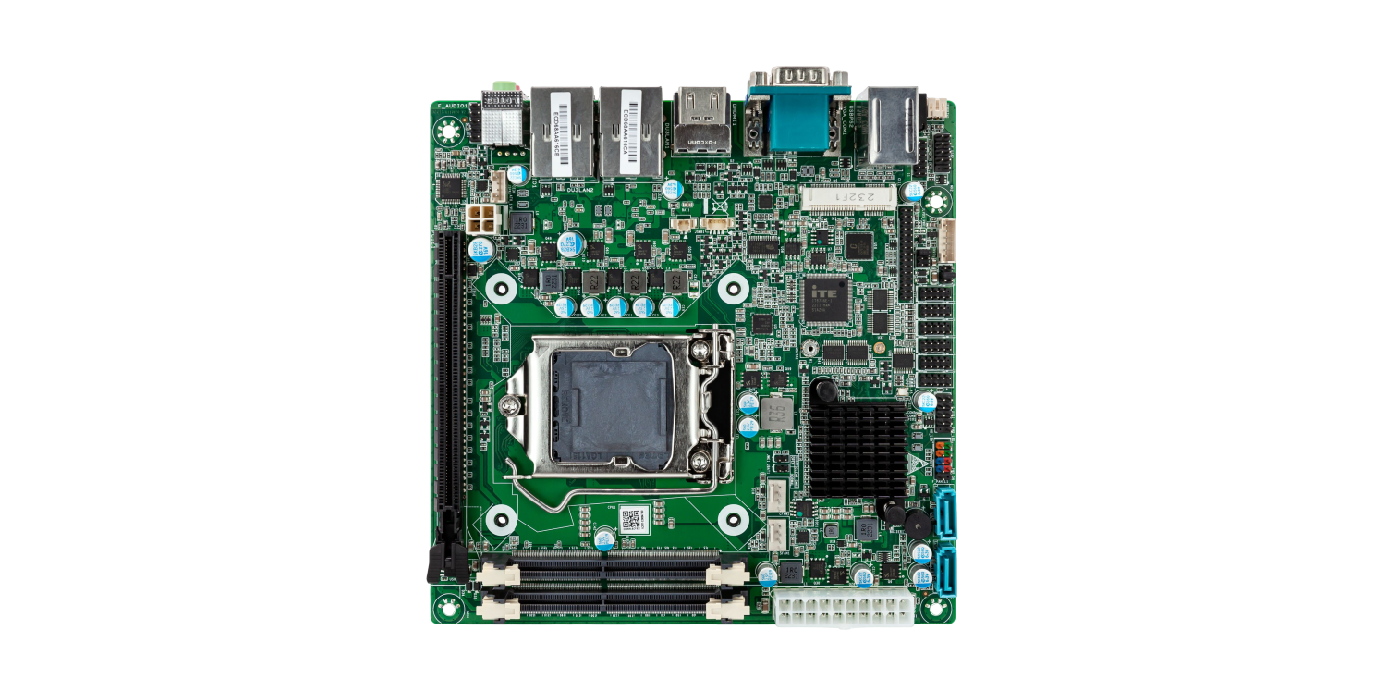

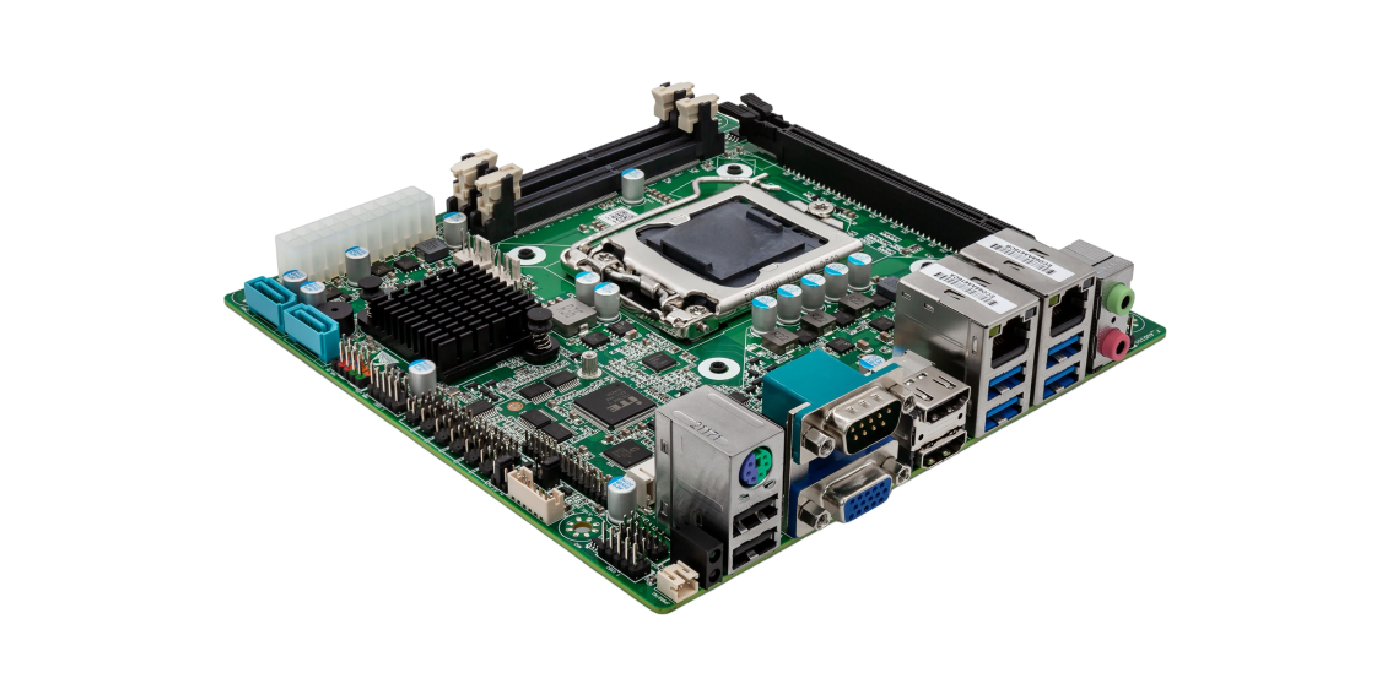

AIoT7-H110V20
AIoT7-H110V20 is a standard MINI-ITX industrial motherboard based on the Intel H110 chipset, supporting Intel processors with LGA1151 packaging from the 6th, 7th, 8th, and 9th generations. It offers extensive connectivity and expansion capabilities, including multiple display outputs, high-speed storage, numerous USB and COM ports, as well as network and audio functions. This motherboard is suitable for various industrial applications, supports multiple operating systems, and operates within a wide temperature range, providing excellent compatibility and stability.
- •
- Support LGA1151 Gen6 & 7 & 8 & 9 i9 / i7 / i5 / i3 / G series CPU
- •
- Two DDR4 SODIMM memory slots support up to 32GB
- •
- VGA+2*HDMI+LVDS/2SATA/2GbE/9USB/6COM/1PCIe
- •
- Support for Win7 x32, Win7 x64, Win10 x64, Ubuntu 18.04
- •
- Support for 1 PCIe x16 extension and 1 Mini-PCIe
- •
- Onboard 2 gigabit network ports
CPU | Support for the LGA1151 package Gen6&7&8&9 i9 / i7 / i5 / i3 / G series CPU |
Chipset | The Intel ® H110 chipset |
Memory | 2 DDR4 SO-DIMM slots, maximum 32GB Different CPU support DDR 4-2133 / 2400 / 2666 |
Display controller | Intel CPU Integrated display controller (depending on the assigned CPU) |
Display interface | VGA, HDMI 1, HDMI 2, and LVDS, support independent dual display |
Storage | 2 SATA 3.0 , 1 mSATA |
Audio | Rear IO Mic-in + Line-out Support chassis front panel Audio, support audio output with power amplifier (4Pin wafer) |
Network | 2x Intel high-speed Ethernet port RTL8111H |

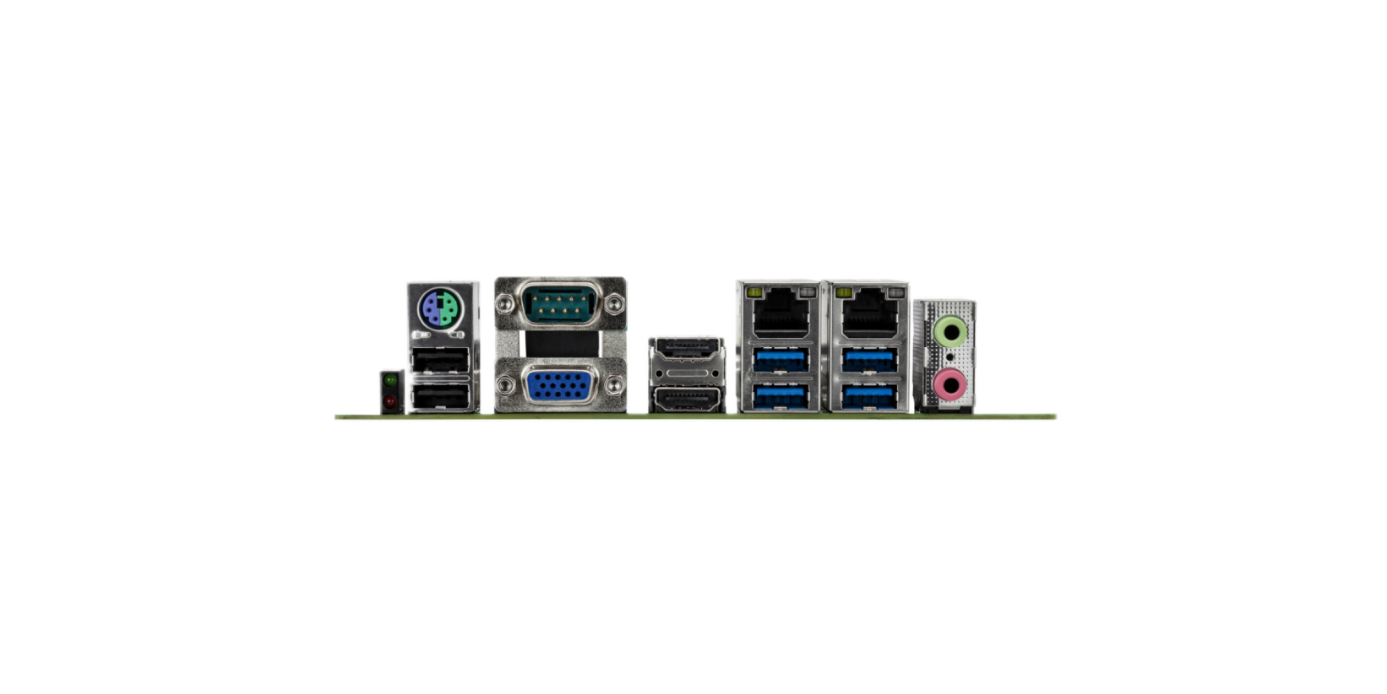

USB | 6 rear IO USB（4 x USB 3.0 Type-A and 2 USB 2.0 Type-A ) 4 intenal USB（4 x USB 2.0 via header) |
Parallel/I²C/SMBus | A 4Pin SM Bus interface |
Serial port | COM1 support RS232/422/485, COM2~6 support RS232 COM2 jumper supports Pin9 5/12V power supply |
Keyboard & mouse | 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO |
Digital I/O | 8-digit I / O, providing power and ground, + 5V level |
LPC/eSPI | 1 LPC local bus |
TPM interface | LPC interface support TPM module |
Power supply | ATX power socket, supporting ATX/AT switch mode Rear I/O power switch pin holder, Power and HDD status lights |
Expansion bus | 1 PCIe 3.0 x 16,1 Mini-PCIe extension (no USB signal without 4G module support) |
Operating temperature and humidity | 0~60°C, 5%~95%，no condensation |
Non-operating temperature and humidity | -40~80°C, 5%~95% ，no condensation |
Watch Dog | 255 level programmable seconds / minutes, support timeout interruption or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win7 x64, Win10 x64, Ubuntu 18.04,Fedora Core 28 |
PCB dimensions (L*W) | 170mm*170mm |
