AIoT7-H110S

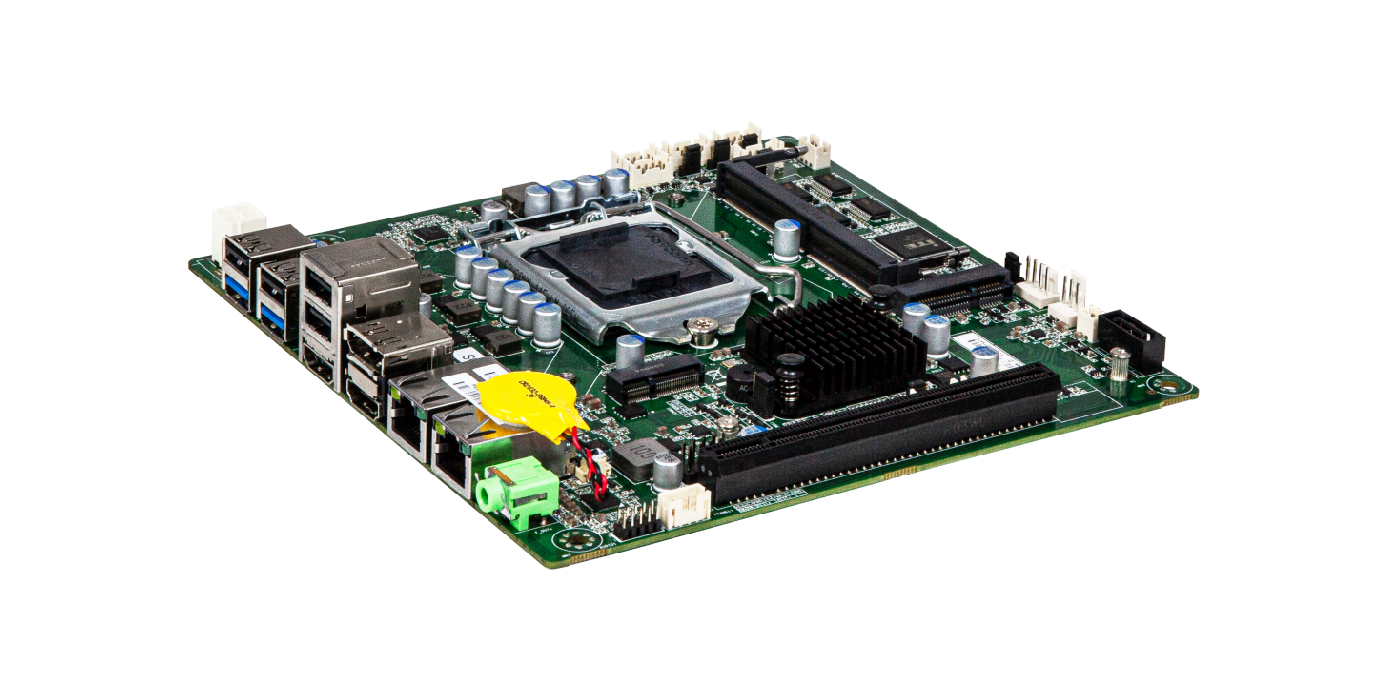

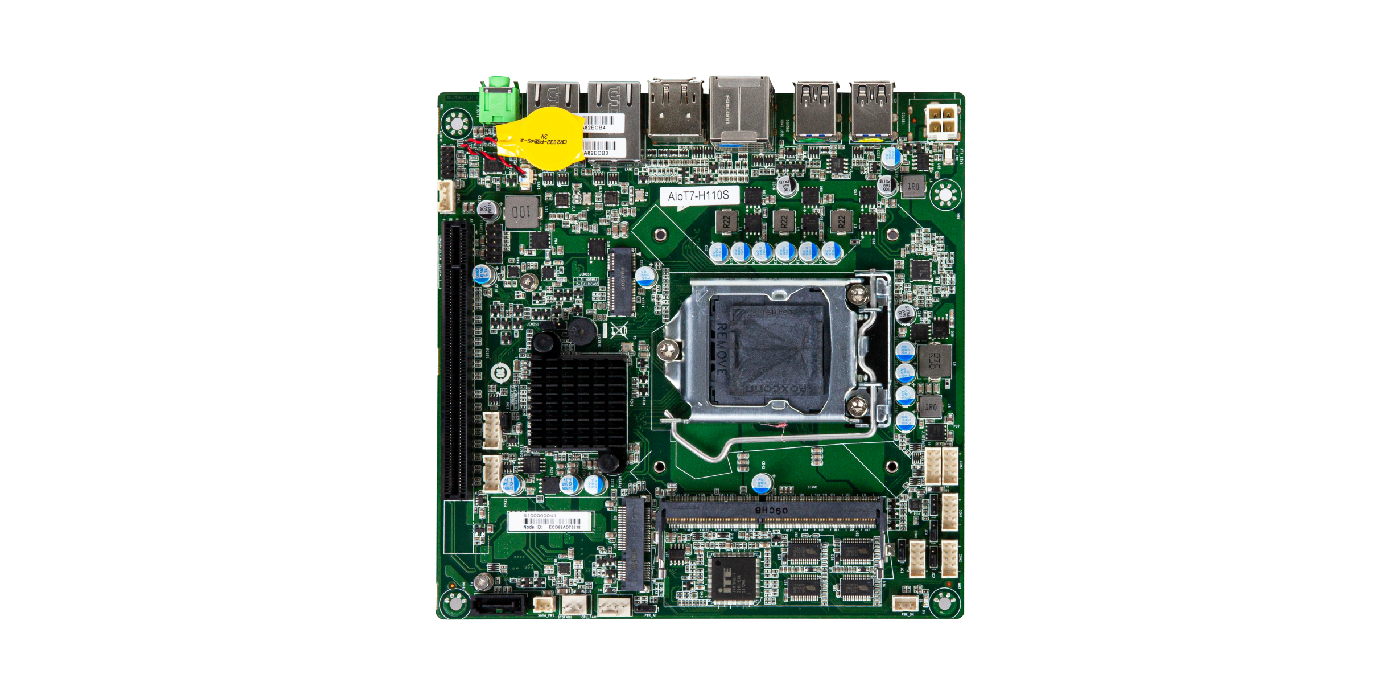

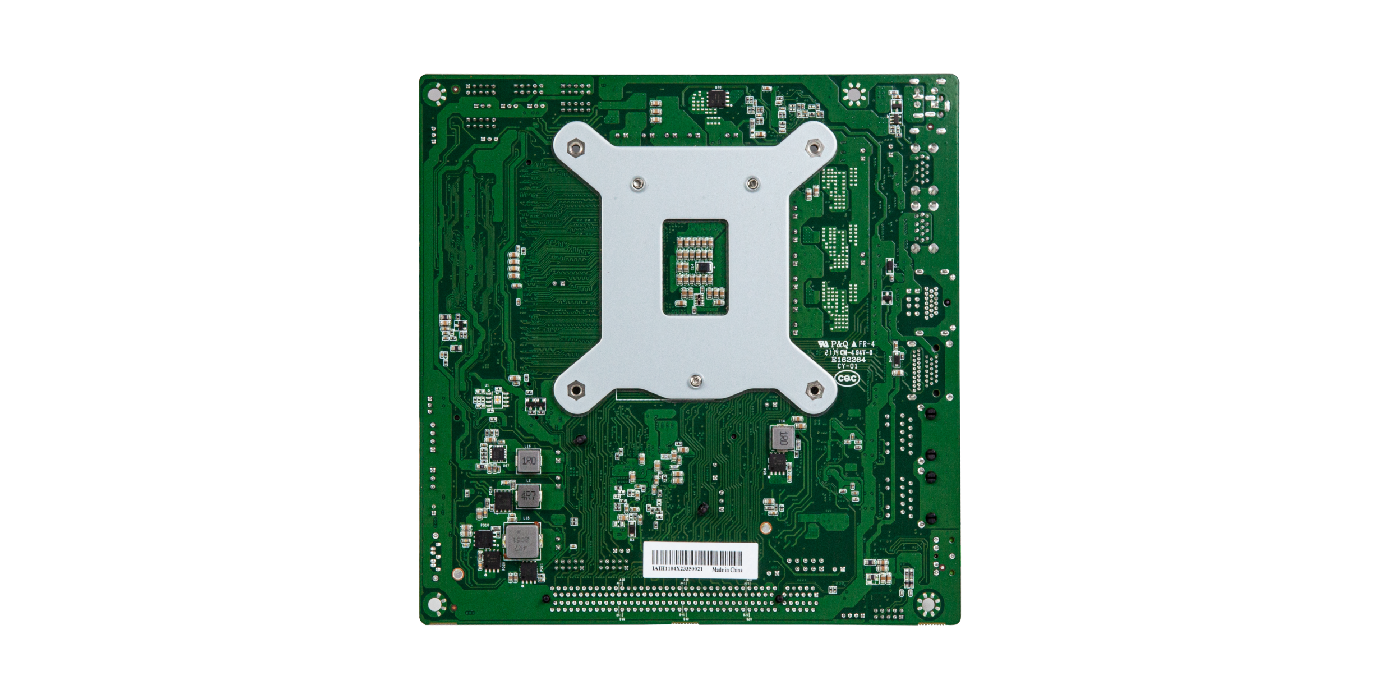

AIoT7-H110S is a standard Mini-ITX industrial motherboard supporting 6th to 9th Gen Intel processors with LGA1151 packaging. It features a single DDR4 SO-DIMM slot, supporting up to 16GB of memory. The motherboard offers extensive connectivity options, including three display interfaces, multiple USB ports, serial ports, and network interfaces. It supports various operating systems and is suitable for industrial and IoT applications.
- •
- Support LGA1151 package Gen6&7&8&9 i9/i7/i5/i3/G series CPU
- •
- 1 DDR4 SODIMM memory slot support up to 16GB
- •
- HDMI1+HDMI2+DP /2SATA/2GbE/10USB/4COM/PCIe x16
- •
- Support Win7 x32, Win7 x64, Win10 x64, Ubuntu 18.04
- •
- 1 PCIe x16, 1 M.22,230 supports WiFi
- •
- 2 RJ 45 Gigabit Ethernet ports
- •
- Single 12V power supply
CPU | Support LGA1151 package Gen6&7&8&9 i9/i7/i5/i3/G series CPU |
Chipset | Intel ® H110 chipset |
Memory | 1 DDR4 SO-DIMM slot, max. 16GB Different CPU support DDR 4-2133 / 2400 / 2666 |
Display controller | Intel CPU Integrated display controller (depending on the assigned CPU) |
Display interface | Three-display interface HDMI 1 + HDMI 2 + DP, support independent dual display |
Storage | 1 SATA3.0, 1 mSATA |
Audio | Rear IO Mic-in + Line-out combo Jack Support chassis front panel audio, support amplifier audio output (4Pin wafer) |
Network | 2 RJ45 Gigabit Ethernet ports, RTL8111H |
USB | 6 rear IO USB（2 x USB 3.0 Type-A and 4 USB 2.0 Type-A ) 4 intenal USB（4 x USB 2.0 via header) |
Parallel/I²C/SMBus | not have |
Serial port | 4 RS232 serial ports, COM1~COM4 support Pin 8 jumper to select RI signal or + 5v power supply |
Keyboard & mouse | Non |
Digital I/O | 8-digit number I / O, providing power and ground, + 5V level |
LPC/eSPI | Non |
TPM interface | Non |
Power supply | 4 Pin single 12V power input (DIN or 4 Pin power socket), power switch pin holder |
Expansion bus | 1 PCIe 3.0 x 16,1 M.2 2230 socket support WiFi module(no USB signal without BT support) |
Operating temperature and humidity | 0~60 ℃, 10%~90%, no condensation |
Non-operating temperature and humidity | -40~80 ℃, 10%~90%, no condensation |
Watch Dog | 255 level programmable seconds / minutes, support timeout interruption or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win7 x64, Win10 x64, Ubuntu 18.04,Fedora Core 28 |
PCB dimensions (L*W) | 170mm*170mm |
