4U rack chassis

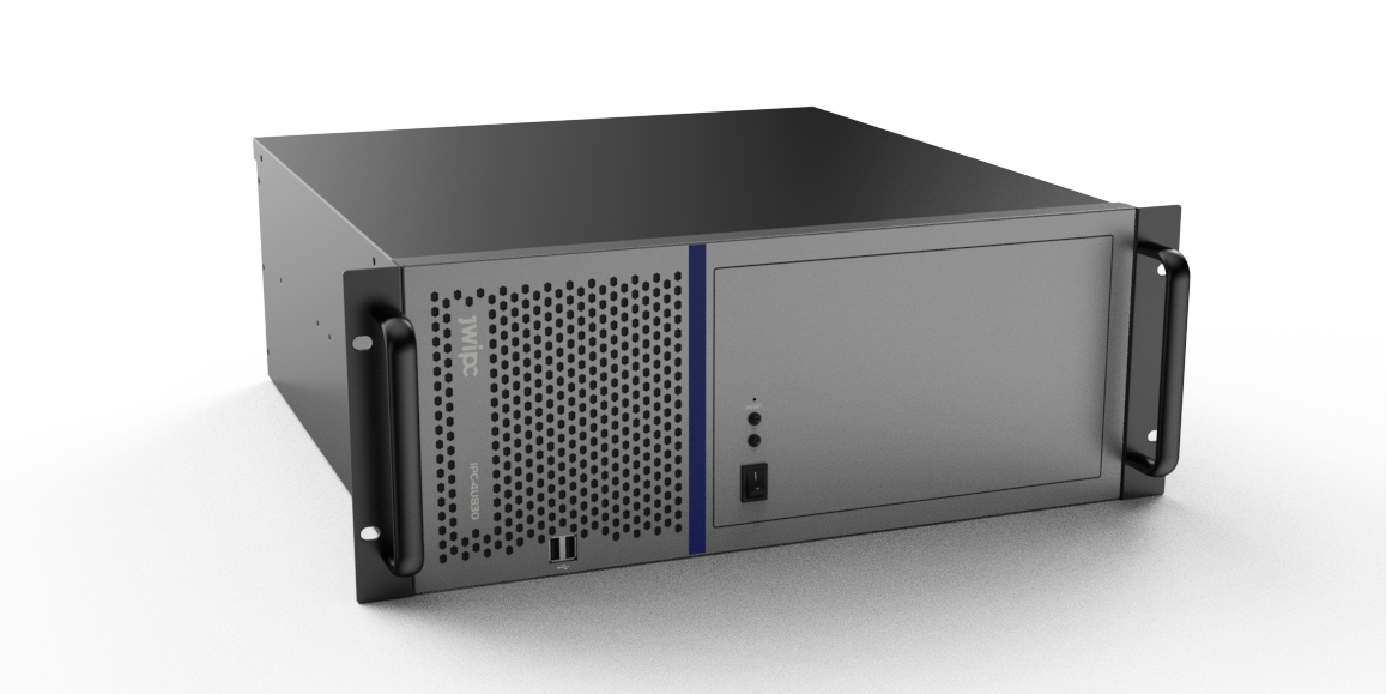

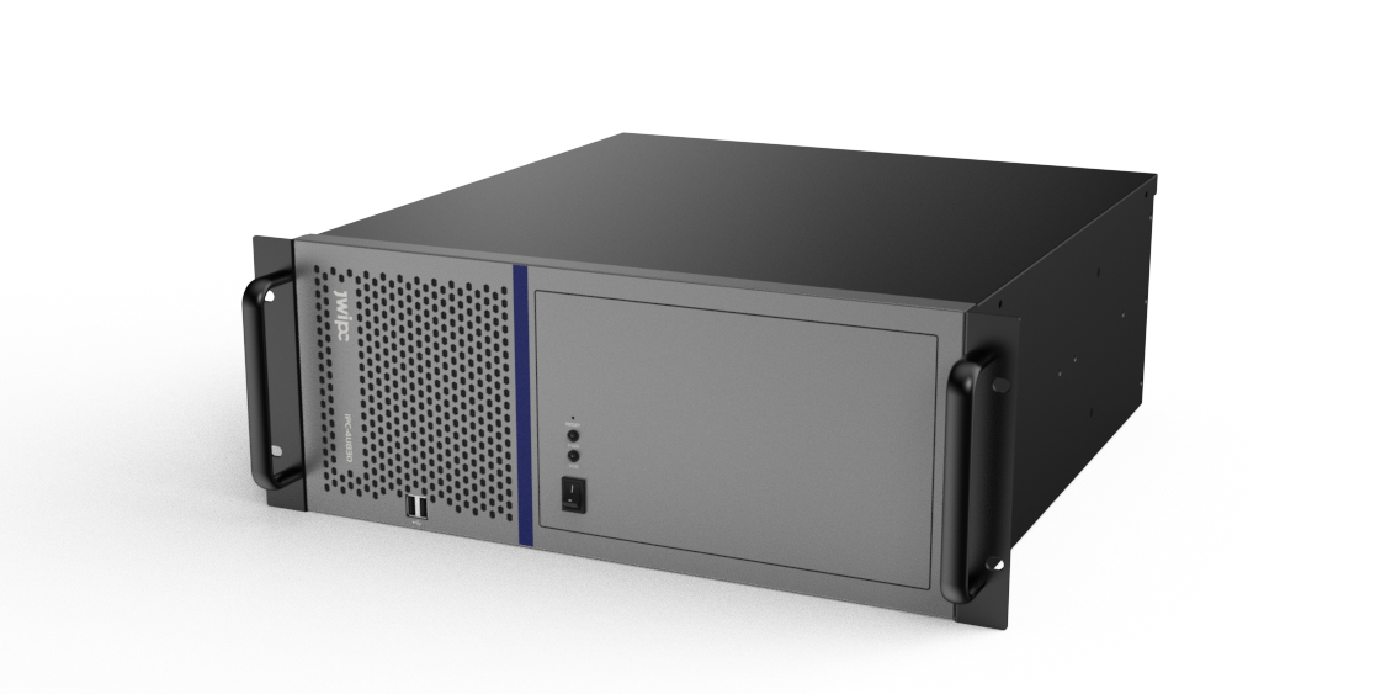

IPC-4U830 is a 4U 19" black standard rack chassis with rich external interfaces and support for 7-slot PCI/PCIe expansion, which can be widely used in lithium, photovoltaic, 3C, semiconductor, laser, pharmaceutical and other industries.

Compatible with ATX, Micro-ATX, Mini-ITX industrial motherboard
Supports 2 3.5" hard disk mounting slots and 1 2.5" SSD mounting slots
Seven full-height PCI/PCIE expansion slots, with batten and fixed
Compatible with ATX power supply and redundant power supply

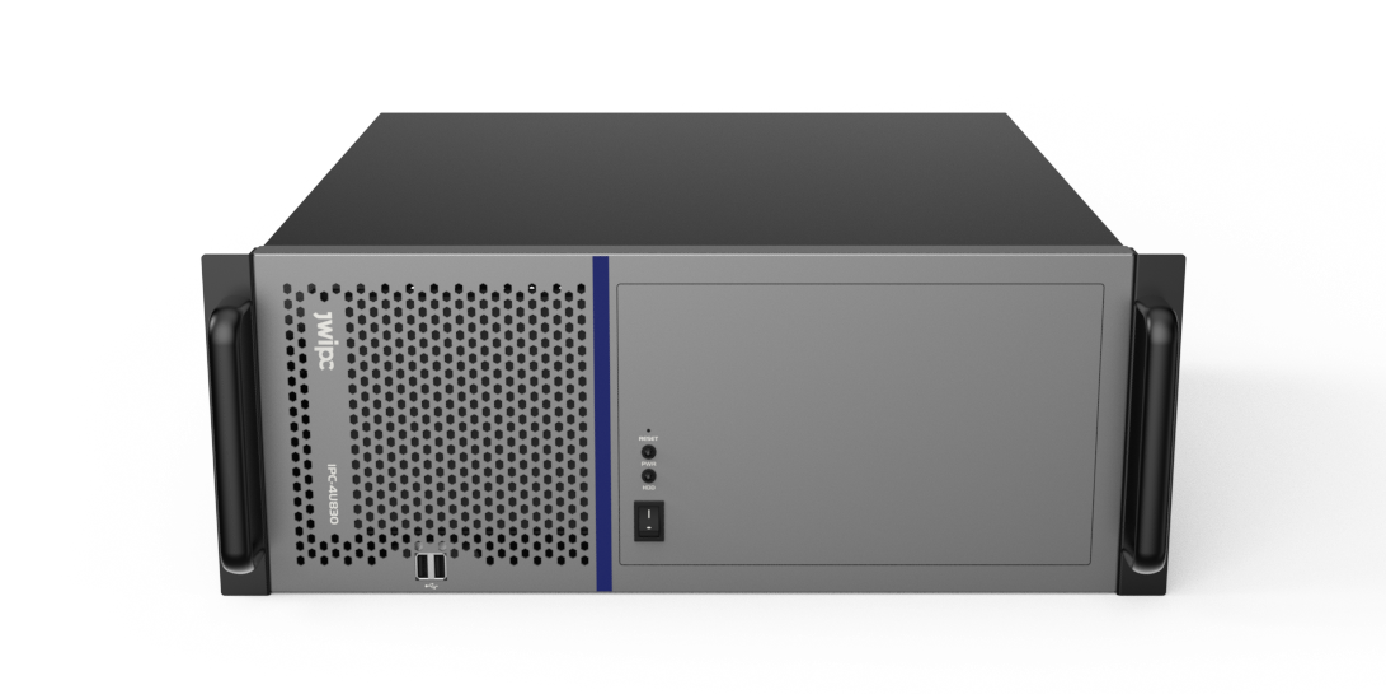

Front-end dual USB ports, switches, LED lights and other external, easy to operate
The gauge design can be used in harsh environments such as vibration, dirt, dust and extreme temperature environments
Specification parameters

System

Adapted motherboard

Support ATX、Micro-ATX、Mini-ITX

Optional motherboard

AIoT0-H81, AIoT0-H110, AIoT0-C236, AIoT0-H510, AIoT0-W580, AIoT0-H610, AIoT0-W680

I/O Interface

Front IO

2*USB,POWER LED,HDD LED,RESET SW,POWER SW

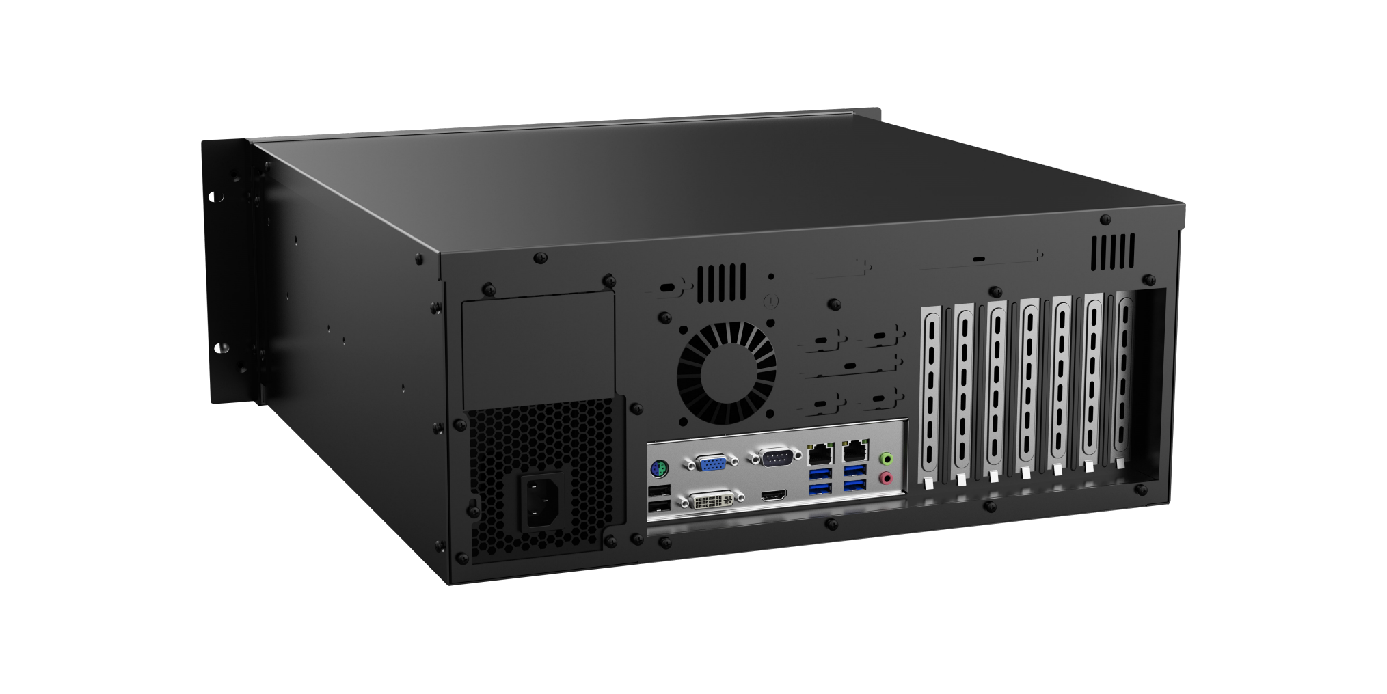

Rear IO

5*DB9,2*DB25,1* Phoenix terminal

Expansion

Expansion Slot

7*Full-height expansion slot

Storage

2.5” Drive Bay

1

3.5” Drive Bay

2

5.25” Drive Bay

/

Power supply

Power Input

Support ATX 300~750W

Power Interface

ATX

Others

System Fan

1*12025 System Fan1*6025 System Fan

Physical

parameters

Dimensions

430mm x 178mm x 450mm (W x H x D)

Weight

15KG

Mounting

Desktop/rack installation

Working

environment

Operating Temp.

0℃~45℃

Storage Temp.

-40℃~55℃

Humidity

Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃)

Shock

3 directions, 10G (11ms half sine wave), 3 times/direction

Vibration

Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz
