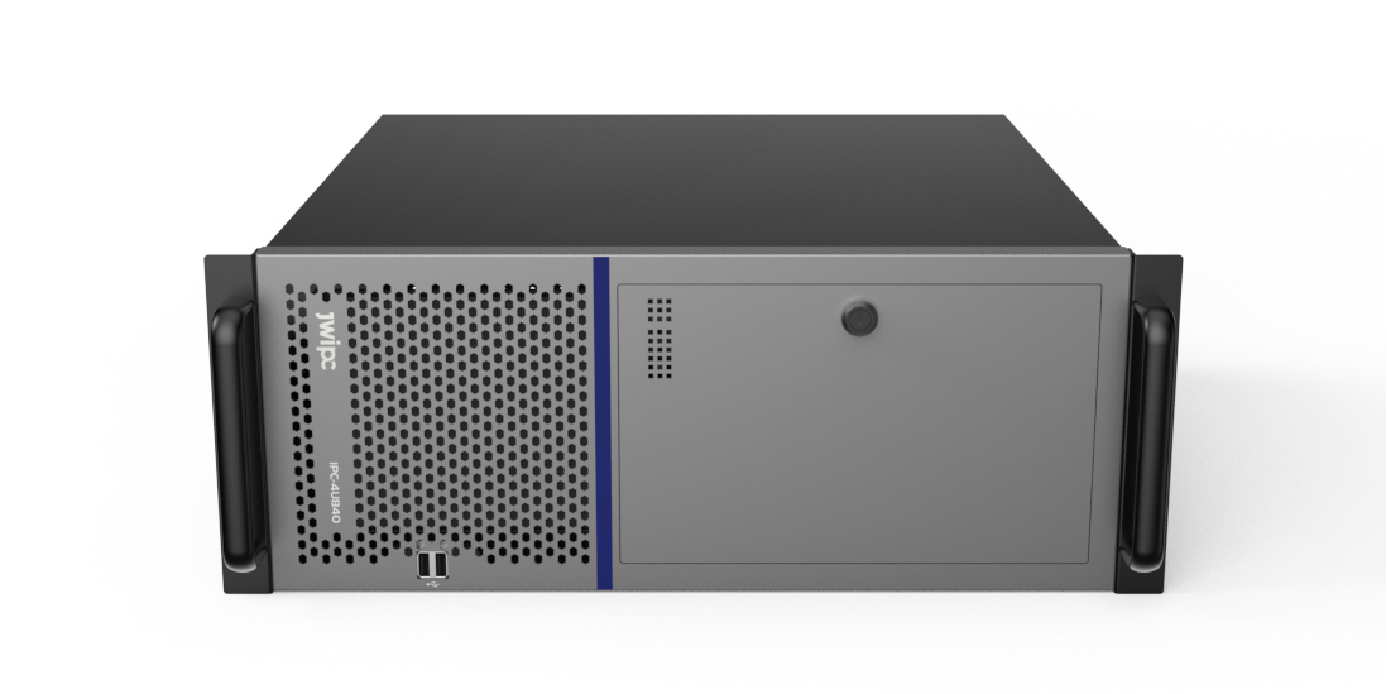

IPC-4U830-B
4U 19" standard rack industrial computer, using Intel® H110 chipset, equipped with 300W ATX power supply, support multiple serial ports, USB, and PCI/PCIE expansion, can be widely used in 3C, semiconductor, laser and other automatic production and testing.
- •
- Support Intel LGA1151 package 6,7,8,9 generation i9,i7,i5,i3,G full system CPU, TDP 95W
- •
- Two DDR4 U-DIMM slots support a maximum of 64GB. Three display output DVI-D+VGA+HDMI, support dual display mode
- •
- Dual Gigabit network port /8USB/6COM/5PCI/2PCIe
- •
- Support Win7 x32, Win7 x64, Win10 x64, Ubuntu 18.04, support a key restore OS
- •
- Compatible with 2 3.5" hard drive bits and 1 2.5 "SSD. One M.2 SSD slot for SATA protocol
- •
- Provides seven full-height PCI/PCIE expansion slots, with layering and securing
System | Processor | Supports all 6th, 7th, 8th and 9th generation i9, i7, i5, i3 and G CPUs in Intel LGA1151 package |
Chipset | Intel® H110 chipset | |
BIOS | AMI UEFI BIOS | |
Graphics card | Intel CPU Integrated display controller | |
Storage | 2× 288Pin DDR4 U-DIMM memory slot, single 32GB, maximum support 64GB； Depending on the different CPUs used, it can support DDR4-2133, DDR4-2400, DDR4-2666 | |
I/O Interface | USB | Front panel 2 USB2.0, rear I/O blank 4 USB3.0, 2 USB2.0, 2 USB2.0 reserved in the motherboard Type A is USB Dongle default |
COM | 6 serial ports (COM1&2 supports RS232/422/485, COM3-6 supports RS232) | |
LED | POWER LED，HDD LED | |
Expansion | PCIE / PCI / M.2 | 1 PCIe3.0 x16, 1 PCIe2.0 x4, 5 PCI |
Interface | Interface | Three display outputs VGA+HDMI+DVI-D, supports dual display mode； VGA up to1920x1200,60Hz; HDMI up to 4096x2304@24Hz; DVI-D up to 1920x1200,60Hz |
Storage | Storage Device | 3 SATA3.0, 1 M.2 SSD slot with SATA protocol |
Drive Bay | 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions | |
Audio | Audio Codec | Realtek ALC897 |
Audio Interface | Support Mic-in, Spk-out; reserved front panel audio pin F_Audio on the board | |
Ethernet | LAN | 2 Gigabit Ethernet ports, LAN1: i219V, LAN2: RTL8111H |
Power supply | Power Input | Standard ATX 300W power supply |
Power Interface | Support ATX/AT switch mode | |
Others | OS Supports | Support Win7 x32/x64, Win10 x64, Ubuntu 18.04, support one-click OS restoration |
Watchdog Timer | Supports configuration via in-board USB Dongle | |
TPM | Support LPC interface TPM module expansion | |
System Fan | Standard configuration: 1 12025 fan, 1 6025 fan, with dust filter | |
Physical parameters | Dimensions | 430mm ×178mm ×450mm (W x H x D) |
Weight | 15KG | |
Mounting | Desktop/rack installation | |
Working environment | Operating Temp. | 0℃～45℃ |
Storage Temp. | -40℃～55℃ | |
Humidity | Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃) | |
Shock | 3 directions, 10G (11ms half sine wave), 3 times/direction | |
Vibration | Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz |
