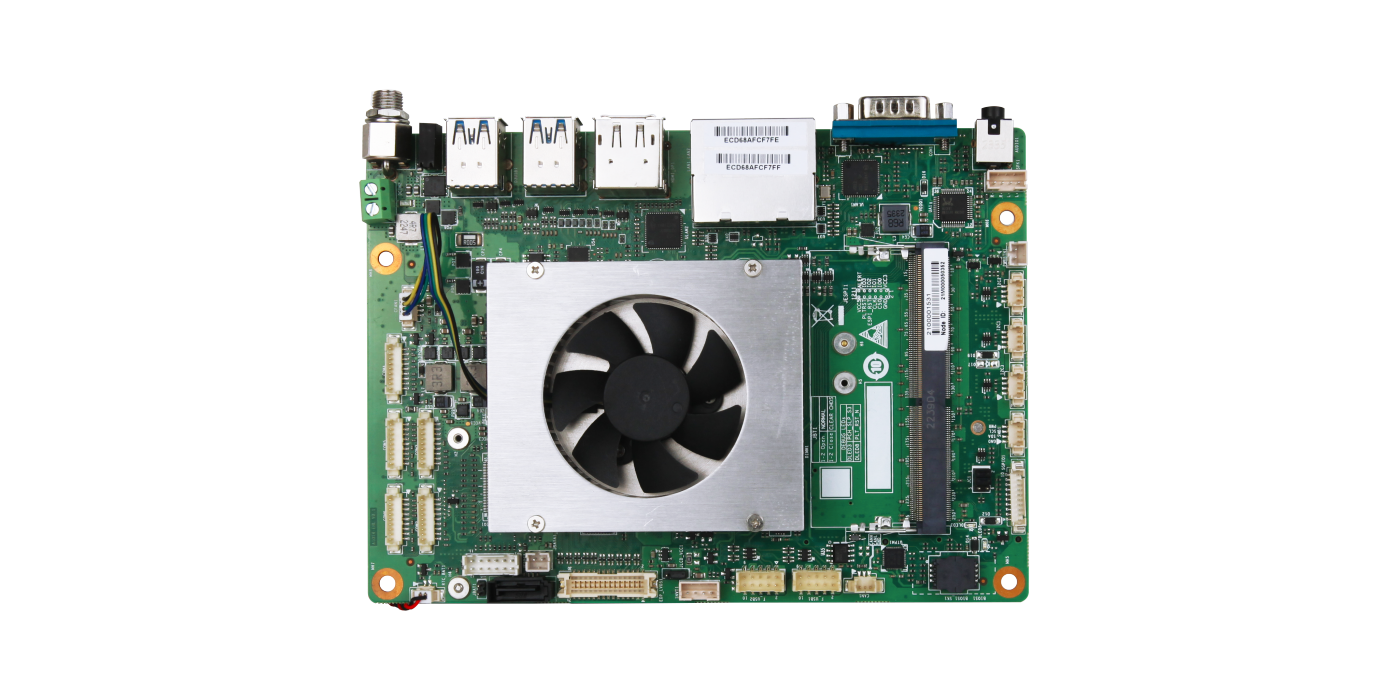

The AIoT4-TGU is a 4-inch embedded single board computer that supports Intel® 11th Tiger Lake-U series CPUs, offering diverse interfaces and powerful performance. It features multiple display outputs, high-speed network connectivity, rich storage options, and expansion capabilities, making it suitable for various industrial application scenarios. This product has an industrial-grade protective design and an optional wide temperature range to meet the demands of harsh environments.
- •
- Supports TGU series Gen 11 low power CPU, TDP 15W Turbo 28W
- •
- Standard Version: 2 * DDR4 SO-DIMM slot, supports up to 64GB
- •
- M.2 2280 Key-M, supports SATA/nVME adaptive function
- •
- M.2 3042/3052 Key-B supports 4G/5G
- •
- M.2 2230 Key-E supports WiFi/BT
- •
- Four display interfaces: HDMI+DP+LVDS+eDP, supports independent four display mode
- •
- Standard Version: 2 * high-speed network interface, 4KV surge protection
- •
- Standard Version: 4 * USB3.2 Gen2 interface, which can be connected to high-definition video equipment
- •
- High Tg wide temperature PCB material ensures wide temperature stability
- •
- Industrial grade port protection blocks static electricity and surges, which effectively protects the core of the system from stability and reliability
- •
- Optional industrial wide temperature -40 - 70℃
CPU | Intel Celeron 6305/6305E or Intel Core i3-1115G4/i3-1115G4E or Intel Core i5-1135G7/i5-1145G7E or Intel Core i7-1195G7/i7-1185G7E |
Chipset | Intel Tiger Lake UP3 SOC |
Memory | 2 × DDR4 SODIMM memory slot, up to DDR4-3200 single socket up to 64GB |
Display controller | Integrated Core Graphics: Intel UHD Graphics for 11th or Iris Xe Graphics (depending on CPU) |
Display interface | Quad display interface : HDMI+DP+eDP+LVDS; 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200 1 x eDP1.4 HBR3, up to 4096x2304x36bpp@60Hz； （Optional：MIPI-DSI v1.3 2.5GHz, up to 3200x2000x24bpp@60Hz） 1 x HDMI 2.0b, up to 4Kx2Kx24bpp@60Hz 1 x DP1.4a, up to 4096x2304x36bpp@60Hz or 5120x3200x24bpp@60Hz |
Storage | 1xSATA3.0+PWR 2pin 2.0mm 1xM.2 2280 Key-M supports SATA/nVME self-adaptation |
Audio | Support Mic-in+Line-out (single-hole 2-in-1); Support digital audio output with power amplifier (3W, 4Pin wafer) |
Network | 2 x RJ45 network ports (4KV surge protection) LAN1: Intel i219V, LAN2: Intel i210AT/IT (optional industrial grade) |
USB | 4 x USB3.2 Gen2x1 10GbType-A on the rear board |
I²C/I²S/SMBus | 3 x I2C 1Mbps, 1 x SMBus, 4Pin wafer |
COM | 6 x COM：COM1, COM2 support RS232/422/485 (BIOS setting) COM3~6 support RS232 |
CAN | 1个CAN Bus 2.0 (3Pin wafer) |
Digital I/O | 8-bit digital I/O interface (1x10Pin wafer) |
TPM/TCM | The on-board encryption chip SLB9670 supports TPM2.0 |
Expansion bus | 1 x M.2 Key-B 3042/3052 supports 4G/5G (PCIe x1, USB2.0) 1 x M.2 Key-E 2230 (PCIe x1, USB2.0) |
Operating temperature and humidity | When using room temperature memory and storage: -10°C~60°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa When using wide temperature memory and storage: -40~70°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa |
Non-operating temperature and humidity | Temperature: -40°C~85°C; The relative humidity is 5%~95% (40°C), and the atmospheric pressure is 85~105kPa |
Watch Dog | 255 levels of programmable seconds per minute with support for timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Windows10，Windows11，Linux Ubuntu 21.04 |
Power | DC+12V~24V anti-screw DC-Jack (optional 2Pin Phoenix terminal) power indicator, storage indicator |
PCB dimensions (L*W) | 4 inch：168mm(W)×120mm(D) |
