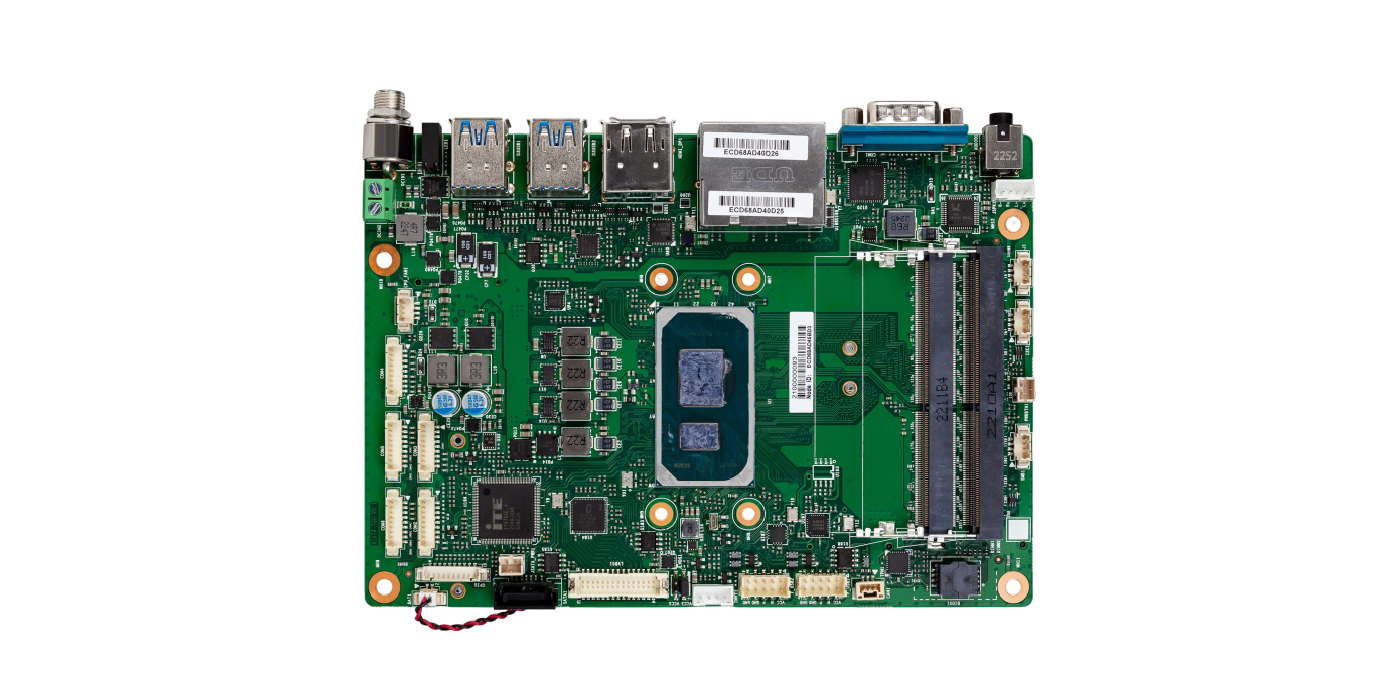

The AIoT4-CMU is a 4-inch embedded single board computer featuring Intel® 10th generation Comet Lake-U series low-power CPUs. It offers dual Gigabit Ethernet, a variety of industrial I/O interfaces, wide voltage power supply, and DDR4 memory support. Designed for industrial environments, this product provides wide temperature adaptability, ESD, and surge protection, making it suitable for various industrial application scenarios.
- •
- Onboard Intel 10th CML-U series low power CPU
- •
- A single DDR4 SODIMM slot supports a maximum of 16GB. Support independent three-display VGA+HDMI+LVDS/eDP(optional)
- •
- 2*GbE/6*COM/9*USB/8bit GPIO
- •
- 1*Mini-PCIe For 4G module
- •
- 1 * MIX - IO bus: GPIO xuart / 2/3 xusb2. 0 / PS2 / PCIex1 / SW/LPC/Smbus
- •
- DC IN 10-24V wide voltage power supply
- •
- High Tg wide temperature PCB material to ensure wide temperature stability
- •
- Industrial-grade port protection blocks static electricity and surges
CPU | Onboard Intel 10th CML-U 5205U, i5-10210U, i5-10310U, i7-10510U |
Chipset | Intel WSK-U SOC or CML-U SOC |
Memory | Supports 1 DDR4 SO-DIMM memory slot, MAX 16GB |
Display controller | Intel integrates Udgrafics |
Display interface | 3 independent display interface HDMI+LVDS or eDP, VGA (pin optional) HDMI 1.4 max resolution up to 4096*2160@24Hz LVDS, Dual Channel 24bit, max resolution up to 1920*1200@60Hz eDP, max resolution up to 4096*2160@60Hz Provide 6pin 2.0mm inverter interface, 2pin 2.0mm power supply interface |
Storage | Support 1 x SATA3.0+PWR 4pin 2.54mm, support 1 x mSATA |
Audio | Support F_AUDIO1, 2x5pin, 2.0mm, 1 x SPK_OUT, 1x4pin, 2.0mm |
Network | 2 x Intel i211AT RJ45 LAN ports |
USB | 4 x USB 3.0 on board, 2 x USB 2.0 pins on board, and 3 x USB 2.0 integrated in MIX-IO |
I²C/I²S/SMBus | 1 x SM bus integrated into the MIX-IO |
COM | COM1, COM2 support RS232/422/485 (BIOS setting), COM3, COM4 support TTL signal integrated into MIX-IO bus COM5 support RS232/TTL, 2x5pin, 90°, 2.0mm, COM6 support RS232, 2x5pin, 90°, 2.0mm |
CAN | / |
Digital I/O | 1 x 8-bit GPIO Wafer interface with power and ground, +5V level output |
TPM/TCM | The on-board encryption chip is SLB9670 and supports TPM2.0 |
Expansion bus | 1 x Mini-PCIe (with SIM card holder to support 4G module) 1 x MIX-IO bus integrated GPIO/2xUart/3xUSB2.0/PS2/PCIex1/SW/LPC/Smbus |
Operating temperature and humidity | The temperature range is -10°C~60°C (extendable -40~70°C), the relative humidity is 10%~85%, and the atmospheric pressure is 85~105kPa |
Non-operating temperature and humidity | Temperature range: -40°C~85°C; The relative humidity is 5%~95% (40°C), and the atmospheric pressure is 85~105kPa |
Watch Dog | 255 levels of programmable seconds per minute with support for timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Windows10，Linux (Ubuntu 18.04，Fedora Core 28) |
Power | Support 10~24V DC wide voltage input, 2 pin, VH3.96 interface (with DC-Jack adapter cable) and provide a 4pin 2.54mm +12V fan connector |
PCB dimensions (L*W) | 168x 120 mm |
