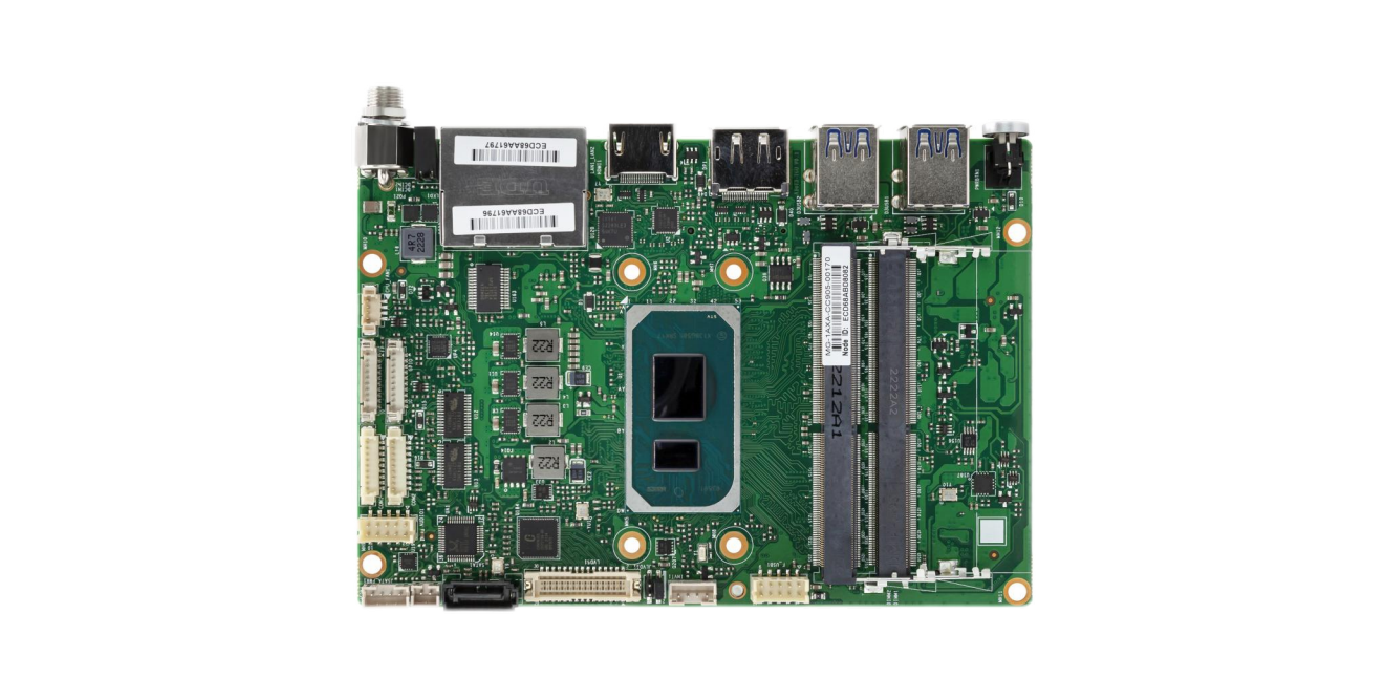

AIoT3-ADU

3.5-inch embedded board

Intel® 12th Alder Lake-U series CPU, low power consumption, small size, with high integration and stability, widely used in industrial control, embedded systems and Internet of Things devices and other fields.

•: Onboard Intel 12th Alder lake U series low power CPU

•: 2 DDR5 SO-DIMM slots, up to 64GB

•: M.2 2280 Key-M Supports NVMe SSDS. Support independent quad-display HDMI+DP+LVDS+USB Type-C

•: IO rich, support 2*GbE/6*USB/4*COM/1*CAN

•: Support M.2 4G/5G modules, M.2 WiFi/BT

•: High Tg wide temperature PCB material to ensure wide temperature stability

•: Industrial-grade port protection blocks static electricity and surges

Message consultation Business Consulting

Specification Comparison

Specification parameters

CPU	Celeron 7305&7305E /1.0GHz/1P+4E/6T/8MB/15W or i3-1215U&1215UE /1.2-4.4GHz/2P+4E/8T/10MB/15W or i5-1235U&1245UE /1.5-4.4GHz/2P+8E/12T/12MB/15W or i7-1265U&1265UE /1.7-4.7GHz/2P+8E/12T/12MB/15W
Chipset	Intel Alder lake U SOC(On-package Intel 600 Series)
Memory	2× DDR5 SO-DIMM memory slots, up to DDR5-4800, up to 64GB
Display controller	Intel UHD for Gen12(i3) or Intel Iris® Xe Graphics( i5&i7)
Display interface	Quad display interface : HDMI+DP+LVDS+USB-C Alt. Mode 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200 1 x HDMI 2.0b, up to 4096 x 2160 x 24bpp@60Hz 1 x DP1.4a, up to 4096 x 2304 x 36bpp@60Hz 1 x USB Type-C support DP1.4a Alt. Mode
Storage	1个SATA3.0+PWR 2pin 2.0mm 1个M.2 2280 Key-M for NVMe SSD
Audio	Support Mic-in+Line-out (single-hole 2-in-1); Support digital audio output with power amplifier (3W, 4Pin wafer)
Network	2 Intel High Speed Ethernet ports: LAN1 i219V, LAN2 i226-V/LM (4KV surge protection)
USB	Rear Panel USB Type-C USB3.2 Gen2 (support DisplayPort1.4a Alt. Mode) 4 x USB3.2 Type-A on the rear board, and 2 x USB2.0 boards on the board
I²C/I²S/SMBus	3 x 4Pin I²C, 1 x 4Pin SMBus, Wafer connector
COM	COM1, COM2 support RS232/422/485 (BIOS setting) COM3, COM4 support four-wire RS232
CAN	1 x 3Pin wafer CANBus 2.0
Digital I/O	8-bit digital I/O interface (1x10Pin wafer)
TPM/TCM	The on-board encryption chip SLB9670 supports TPM2.0
Expansion bus	1 x M.2 Key-B3042 supports 4G/5G wireless module (PCIe x1, USB2.0) 1 x M.2 Key-E 2230 (CNVI supported) Optional Expansion Cards: Mini-PCIe/2xCOM/1xUSB2.0/PS2KB&MS
Operating temperature and humidity	When using room temperature memory and storage: -10°C~60°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa When using wide temperature memory and storage: -40~70°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa
Non-operating temperature and humidity	Temperature: -40°C~85°C; The relative humidity is 5%~95% (40°C), and the atmospheric pressure is 85~105kPa
Watch Dog	255 levels of programmable seconds per minute with support for timeout interrupt or system reset
BIOS	AMI UEFI BIOS
Operating System	Windows10，Windows11，Linux Ubuntu 21.04
Power	DC 12V~24V DC-Jack (optional 2Pin Phoenix Terminal) Power switch, power indicator, storage indicator
*PCB dimensions (LW)**	3.5 寸：146mm(W)×102mm(D)

Specification parameters

CPU

Onboard Celeron 7305E /1.0GHz/1P+4E/6T/8MB/15W or i3-1215U&1215UE /1.2-4.4GHz/2P+4E/8T/10MB/15W or i5-1235U&1245UE /1.5-4.4GHz/2P+8E/12T/12MB/15W or i7-1265U&1265UE /1.7-4.7GHz/2P+8E/12T/12MB/15W

chipset

Intel Alder lake U SOC(On-package Intel 600 Series)

memory

2 x DDR5 SO-DIMM memory slot, supporting up to DDR5-4800, up to 64GB

Display controller

Integrated core Display Intel UHD for Gen12(i3) or Intel Iris® Xe Graphics(i5&i7)

Display interface

Four display ports, supporting independent four display modes HDMI+DP+LVDS+USB-C Alt.Mode 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200 1 x HDMI 2.0b, up to 4096 x 2160 x 24bpp@60Hz 1 x DP1.4a, up to 4096 x 2304 x 36bpp@60Hz 1 x USB Type-C support DP1.4a Alt.Mode

store

One SATA3.0+PWR 2pin 2.0mm One M.2 2280 Key-M supports nVMESSD

Tone frequency

Support Mic-in+Line-out (2x5Pin Wafer), support digital audio output with power amplifier (3W, 4Pin wafer)

net

2 Intel High speed Ethernet ports: LAN1 i219V,LAN2 i226-V/LM (4KV surge protection)

USB

USB Type-C USB3.2 Gen2(support DisplayPort1.4a Alt.Mode) Four USB3.2 Type-C USB2.0 in the rear panel

I²C/I²S/SMBus interface

3 4Pin I²C interfaces, 1 4Pin SMBus interface, Wafer connector

Serial port

COM1, COM2 support RS232/422/485(BIOS Settings) COM3,COM4 support four-wire RS232

CAN bus

1 3-pin waferCANBus 2.0

Digital I/O

8-bit digital I/O interface (1x10Pin wafer)

TPM/TCM

The on-board encryption chip SLB9670 supports TPM2.0

Expansion bus

1 m. 2 Key - B3042 support 4 g / 5 g wireless module (PCIe x1, USB2.0) 1 m. 2 Key - 2230 E (supporting CNVI) optional extensions daughter card: Mini PCIe / 2 xusb2 xcom / 1. 0 / PS2KB & MS

Working environment atmospheric conditions

When using room temperature memory and storage: -10℃ ~ 60℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa When using wide temperature memory and storage: -40~70℃, relative humidity 10% ~ 85%, atmospheric pressure 85~105kPa

Store ambient atmospheric conditions

Temperature -40℃ ~ 85℃; Relative humidity 5% ~ 95%(40℃), atmospheric pressure 85~105kPa

Watch Dog

Level 255 programmable seconds/minute, support timeout interrupt or system reset

BIOS

AMI UEFI BIOS

Operating system

Windows10, Windows11, Linux Ubuntu 21.04

Electric source

DC 12V~24V DC-JACK with anti-trip screws (optional 2-pin Phoenix terminal)

PCB Size (LxW)

3.5 inches: 146mm(W)×102mm(D)
