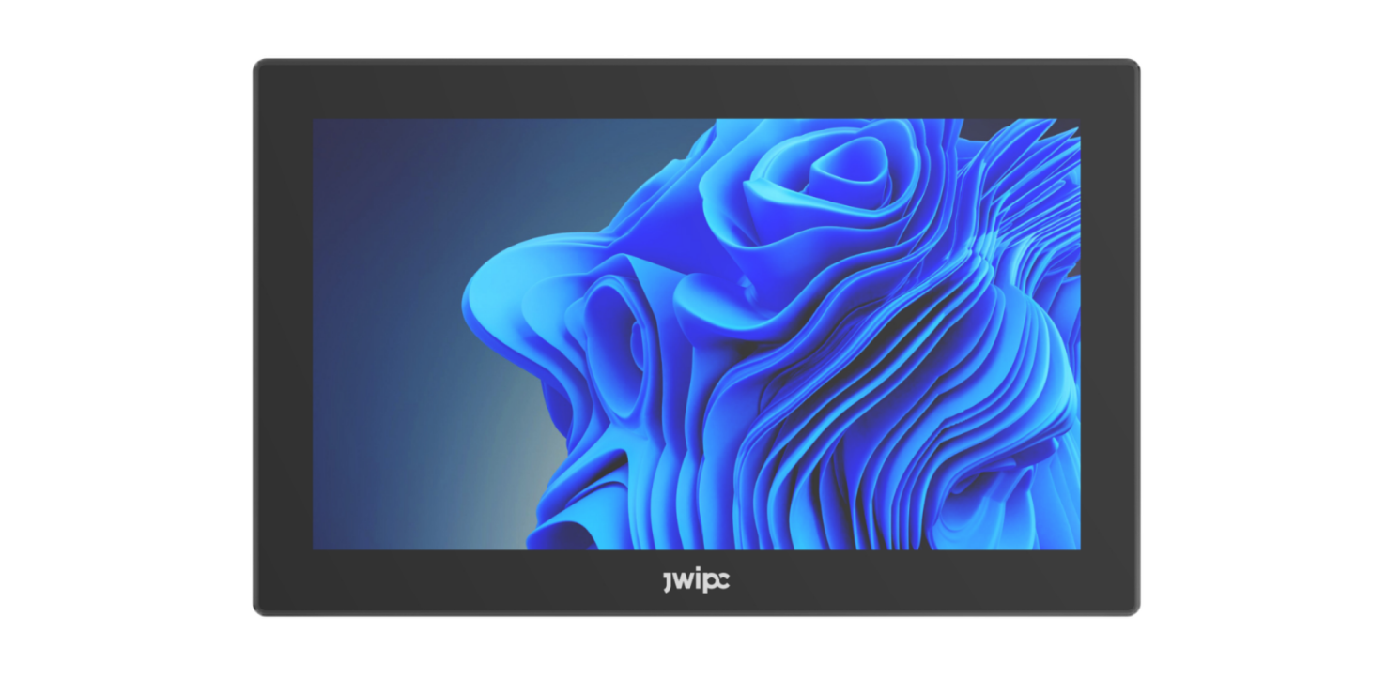

TDS-121
The TDS-121 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows flexible composition of different modules for water and dust resistance. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring.
- •
- 12.1- inch LED backlit display, resolution 1024 x 768
- •
- Full viewing angle display, optional capacitive / five-wire resistive touch screen, capacitive screen supports 10 -point touch
- •
- Support VGA HDMI DVI display interface
- •
- 12-36v wide voltage input
- •
- Support 2xspeakers with 3W amplifier
LCD Display | Proportion | 4:3 |
Resolution | 1024 x 768 | |
Brightness | 500 cd/m2 | |
Contrast | 1200:1 | |
Backlight life | 50,000 hours | |
Perspective | 88 (left), 88 (right), 88 (top), 88 (bottom) | |
Touchscreen | Type | 10- point capacitive touch screen (optional 5- wire resistive touch screen) |
Light transmittance | More than 81% (resistive screen >80%) | |
Life | 50 million times (10 million times for single resistor point) | |
Power | Input voltage | DC 12-36V, RVP/SCP/OVP/OCP |
Power | TBD | |
Driver board | Signal input | HDMI, VGA, DVI-D |
OSD Menu | Menu / Up / Down / Auto Adjust / Power Switch Brightness , contrast , screen settings , color temperature , language settings | |
Mechanical | Size | 298.5x237.5x58mm |
Weight | TBD | |
OS | OS | Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Environment | Operating temperature (OP) | -20 ~ 60 °C (32 ~ 122 °F) |
Working relative humidity | 95% @ 40 °C (non-condensing) | |
Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) | |
Impact resistance (OP) | 15g 11ms half sine wave | |
Anti-vibration (OP) | 5~500 Hz 1Grms | |
EMC | CE Class A | |
IP Rating | IP65 front panel |
