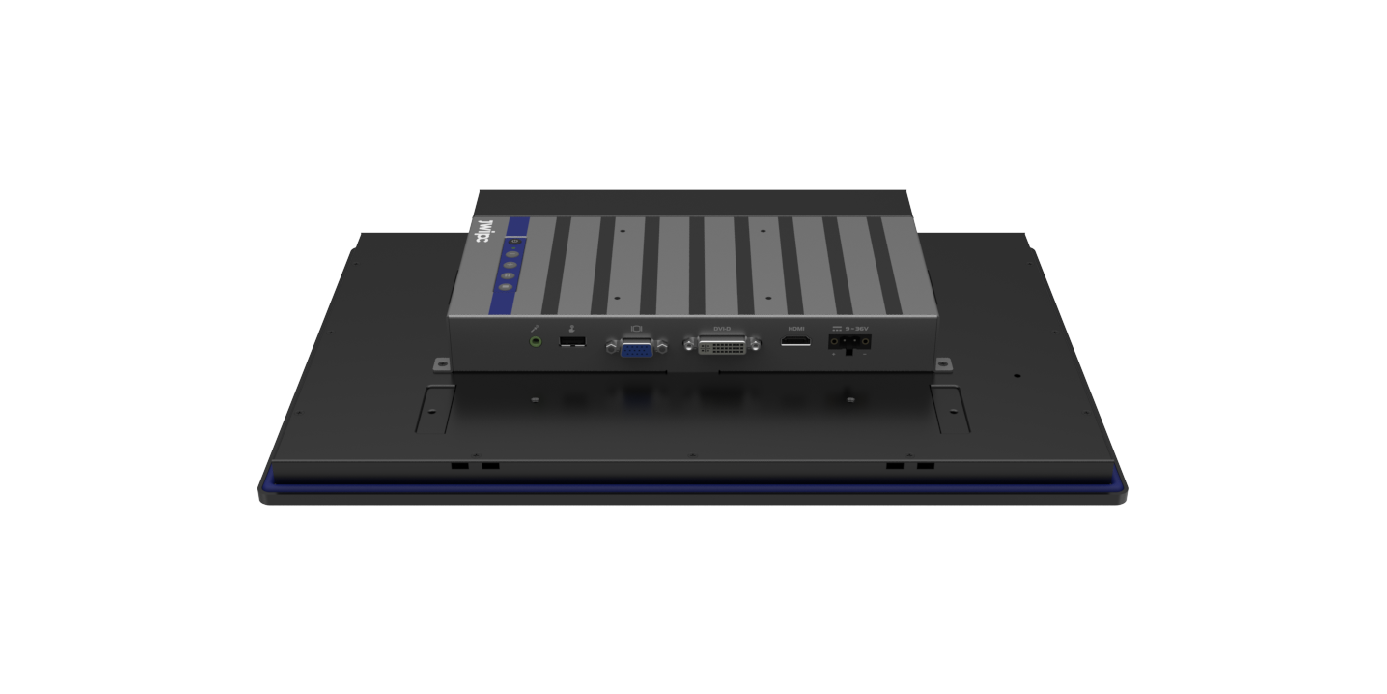

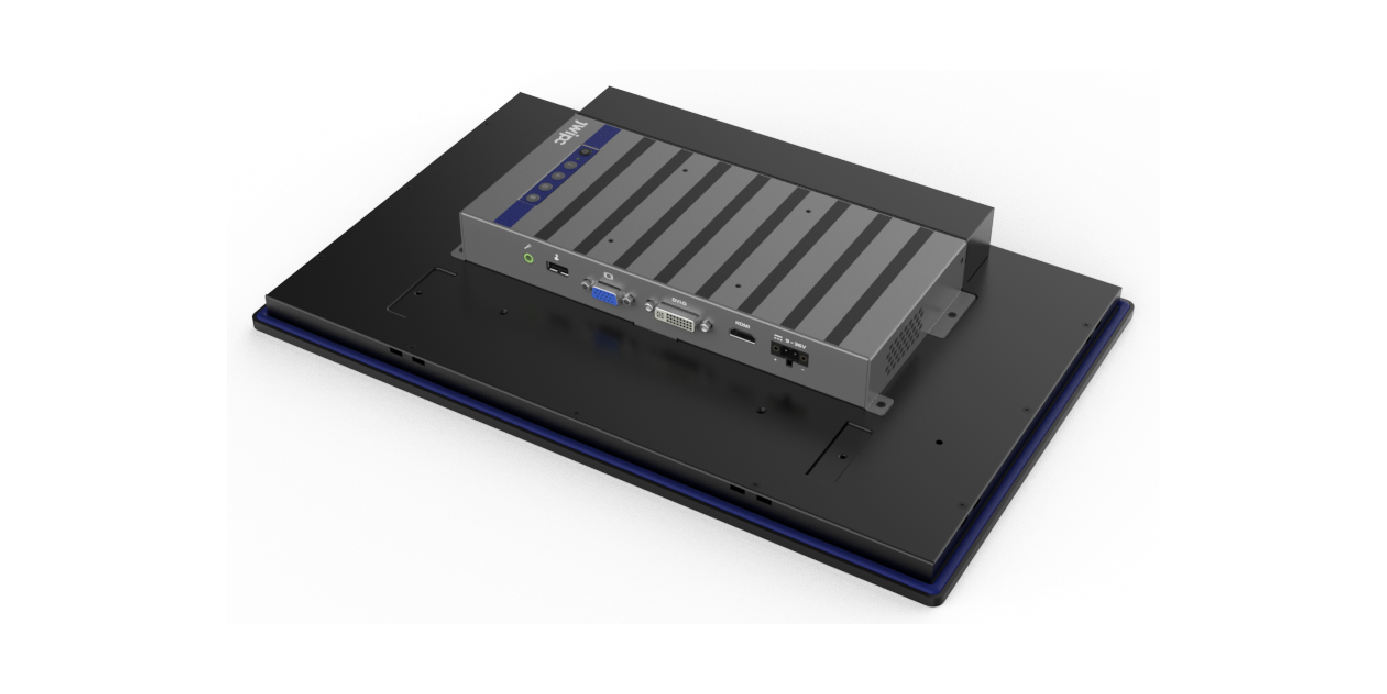

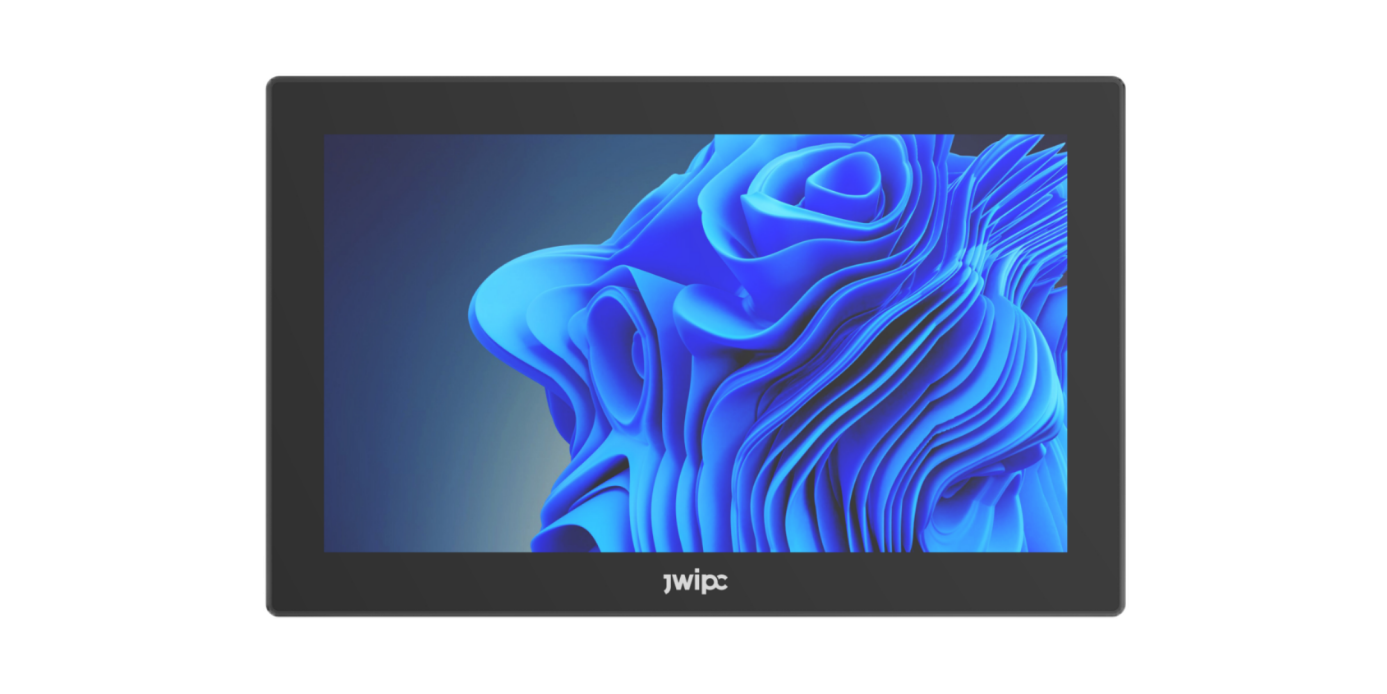

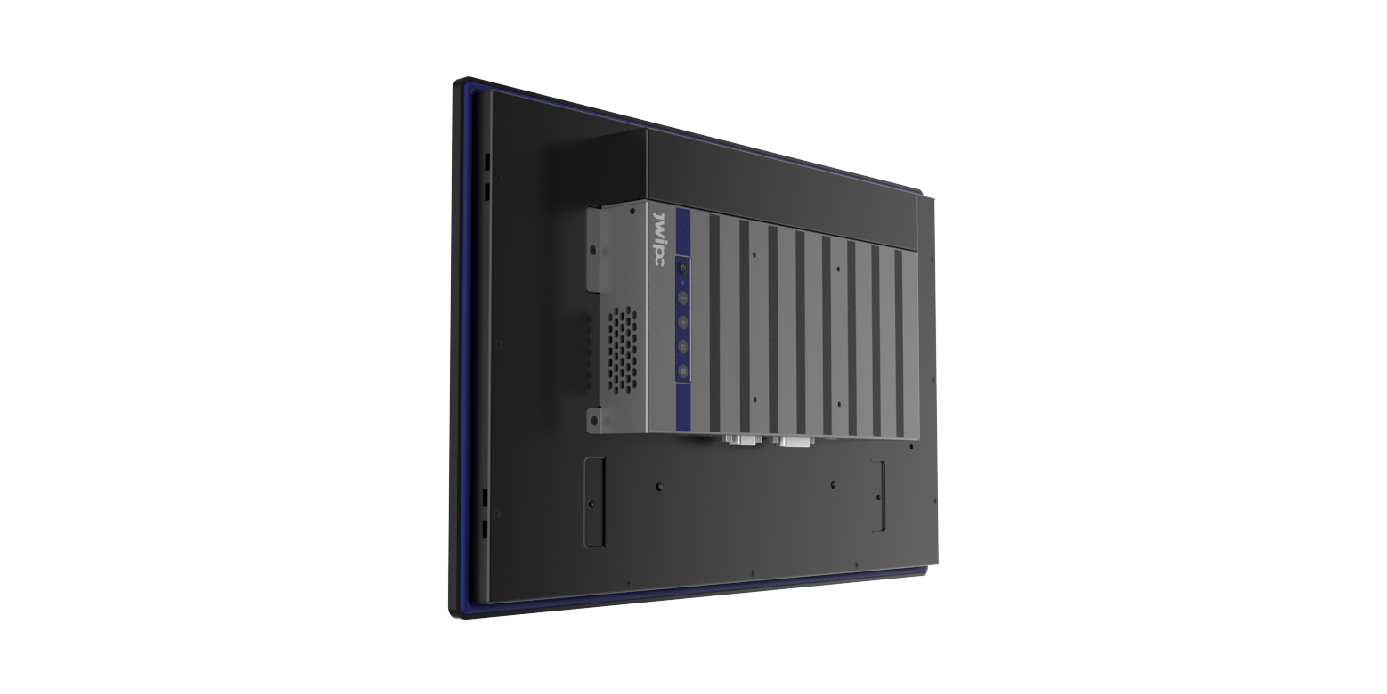

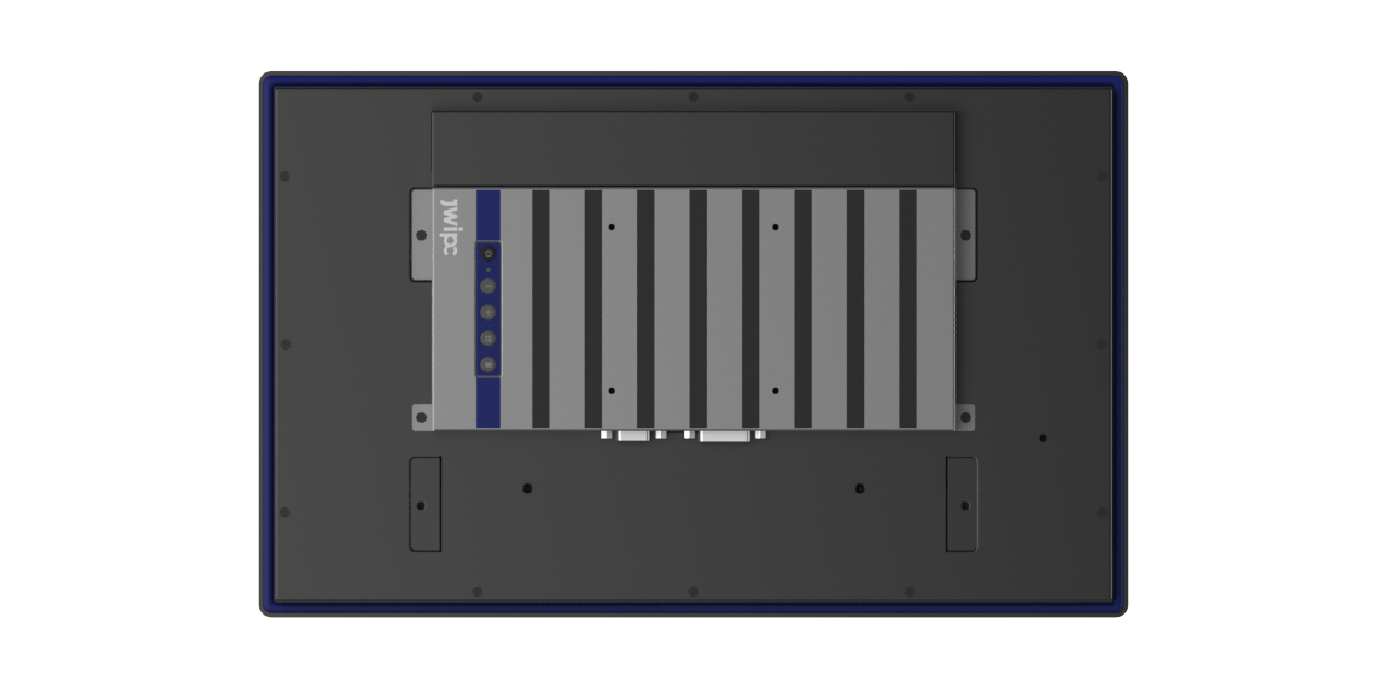

TDS-215
The TDS-215 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows for flexible modules that are waterproof and dust-proof. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring.
- •
- 21.5- inch LED backlit display , resolution 1920x1080
- •
- Full viewing angle display, optional capacitive / five-wire resistive touch screen, capacitive screen supports 10 -point touch
- •
- Support VGA HDMI DVI display interface
- •
- 12-36v wide voltage input
- •
- Support 2xspeakers with 3W amplifier
LCD Display | Proportion | 16: 9 |
Resolution | 1920 x 1080 | |
Brightness | 220 cd/m2 | |
Contrast | 1000:1 | |
Backlight life | 30,000 hours | |
Perspective | 89 (left), 89 (right), 89 (top), 89 (bottom) | |
Touchscreen | Type | 10 point capacitive touch screen (optional 5- wire resistive touch screen) |
Light transmittance | More than 81% | |
Life | 50 million times | |
Power Requirements | Input voltage | DC 12-36V, RVP/SCP/OVP/OCP |
Power | <25W | |
Driver board | Signal input | HDMI, VGA, DVI-D |
OSD Menu | Menu / Up / Down / Auto Adjust / Power Switch Brightness , Contrast , Screen Settings , Color Temperature , Language Settings | |
Mechanical | Size | 532.5x324x58mm |
Weight | TBD | |
OS | OS | Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Environment | Operating temperature | 0 ~ 50 °C (32 ~ 122 °F) |
Working relative humidity | 95% @ 40 °C (non-condensing) | |
Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) | |
Impact resistance (OP) | 15g 11ms half sine wave | |
Anti-vibration (OP) | 5~500 Hz 1Grms | |
EMC | CE Class A | |
IP Rating | IP65 Front Panel |
