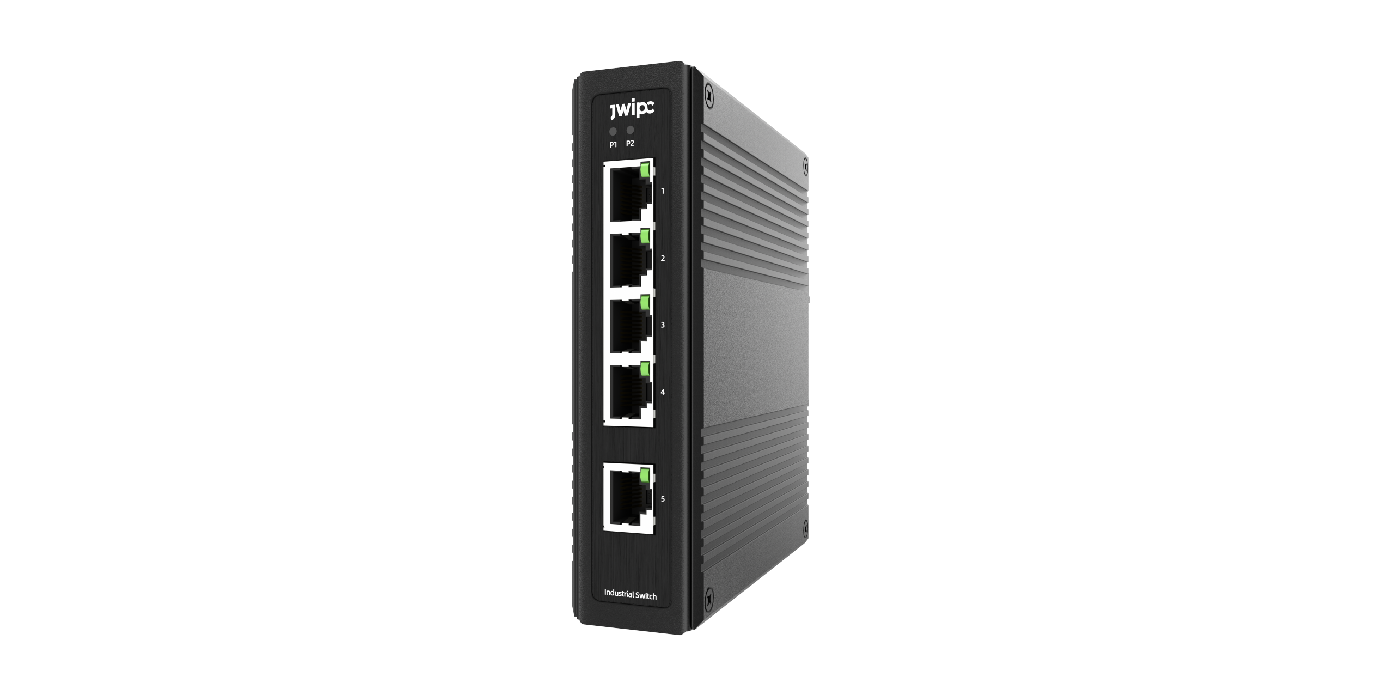

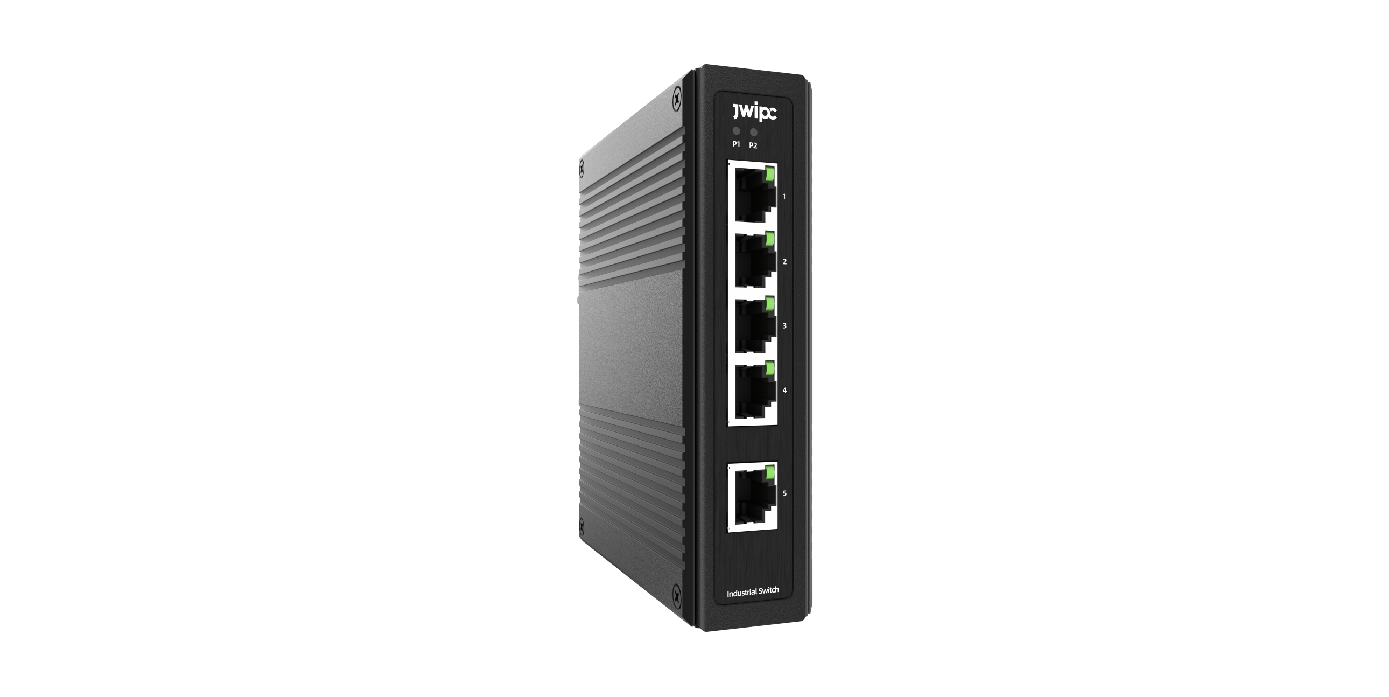

ISG305
Industrial chip scheme, high standard industrial protection level, can be widely used in industrial automation, smart city, smart transportation and other industrial scenarios.
- •
- Industrial hardware equipment platform
- •
- 5 ports full gigabit
- •
- IP40 aluminum alloy cooling housing
- •
- -40 to 75°C wide temperature operation
- •
- Plug and play
Performance | Switching Capability | 10Gbps |
Auto-negotiation | Support | |
Auto-MDI/MDIX | Support | |

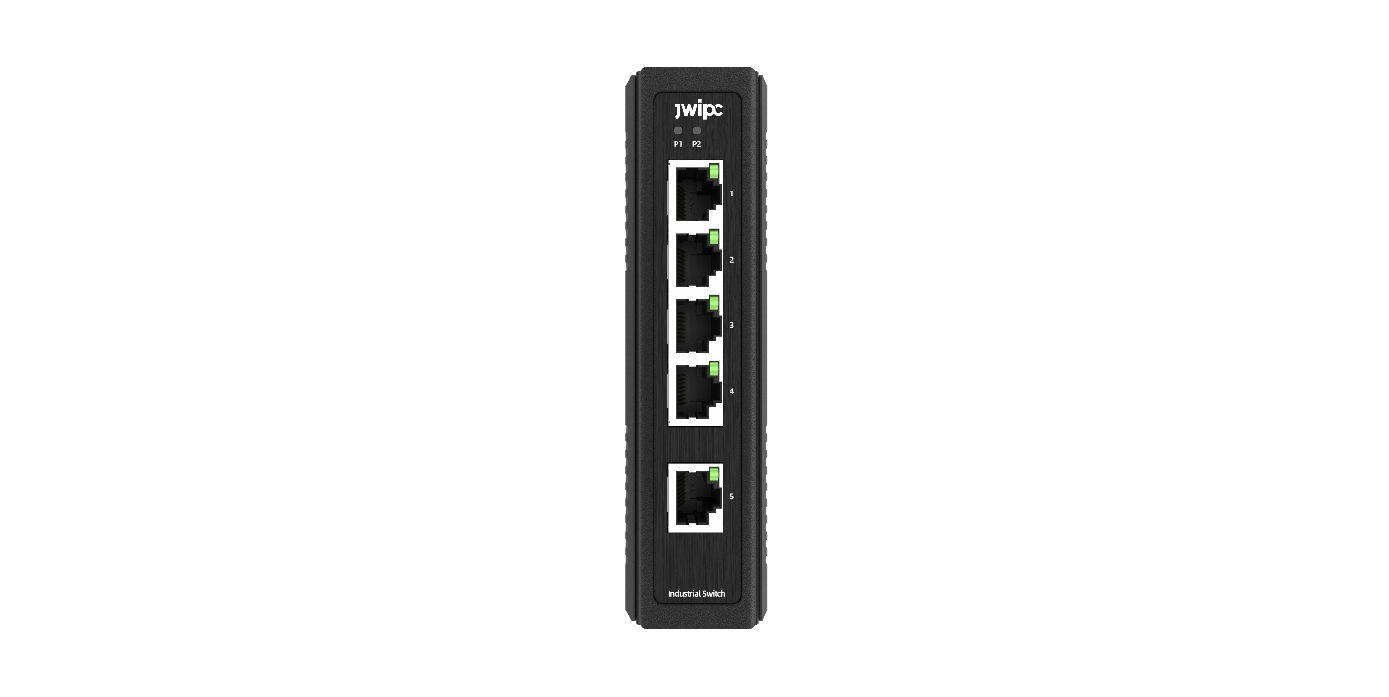

Port | RJ45 | 5*10/100/1000MBASE-T RJ45 Port |
LED | Port LED | Green: link/active |

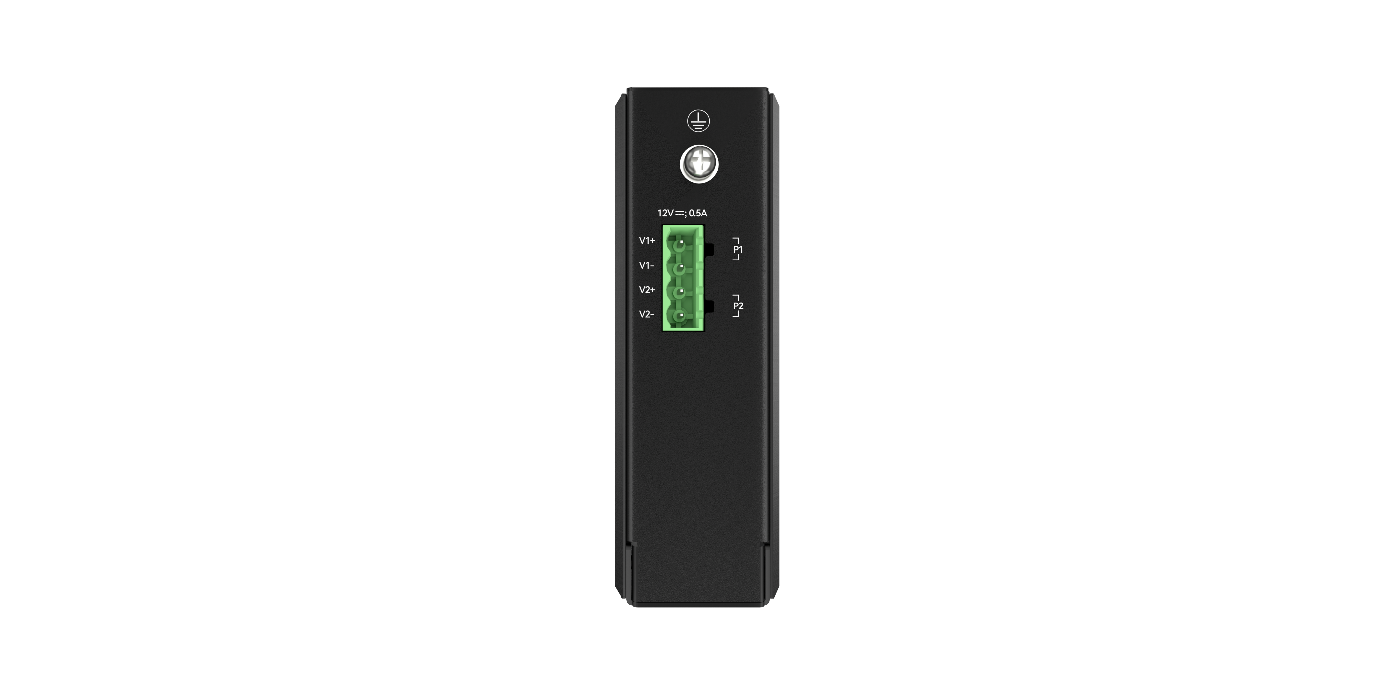

Power Supply | Input range | DC 18~48V Redundant dual power inputs. |
connector | 1 removable 4-contact terminal block(s) | |
Overload Current Protection | Support | |
Reverse Polarity Protection | Support | |
Mechanical | SIze | 135mm(L)×108mm(W)×35mm(H) |
IP Rating | IP40 | |
installation | DIN-rail mounting | |
Heat Dissipation | Fanless natural heat dissipation design | |
Environment | Operating Temperature | -40~75℃(-40~167 °F) |
Storage Temperature | -40~85℃(-40~185 °F) | |
Operating Humanity | 5 to 95%（(non-condensing） | |
Storage Humanity | 5 to 95%（(non-condensing） | |
Standards And Certifications | EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A | |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF | |
Safety | EN 60950-1、EN 60950-1 (LVD) | |
Shock | IEC 60068-2-27 | |
Vibration | IEC 60068-2-6 | |
Freefall | IEC 60068-2-31 | |
WEEE | Support | |
RoHS | Support |
