JSOM-N8MC

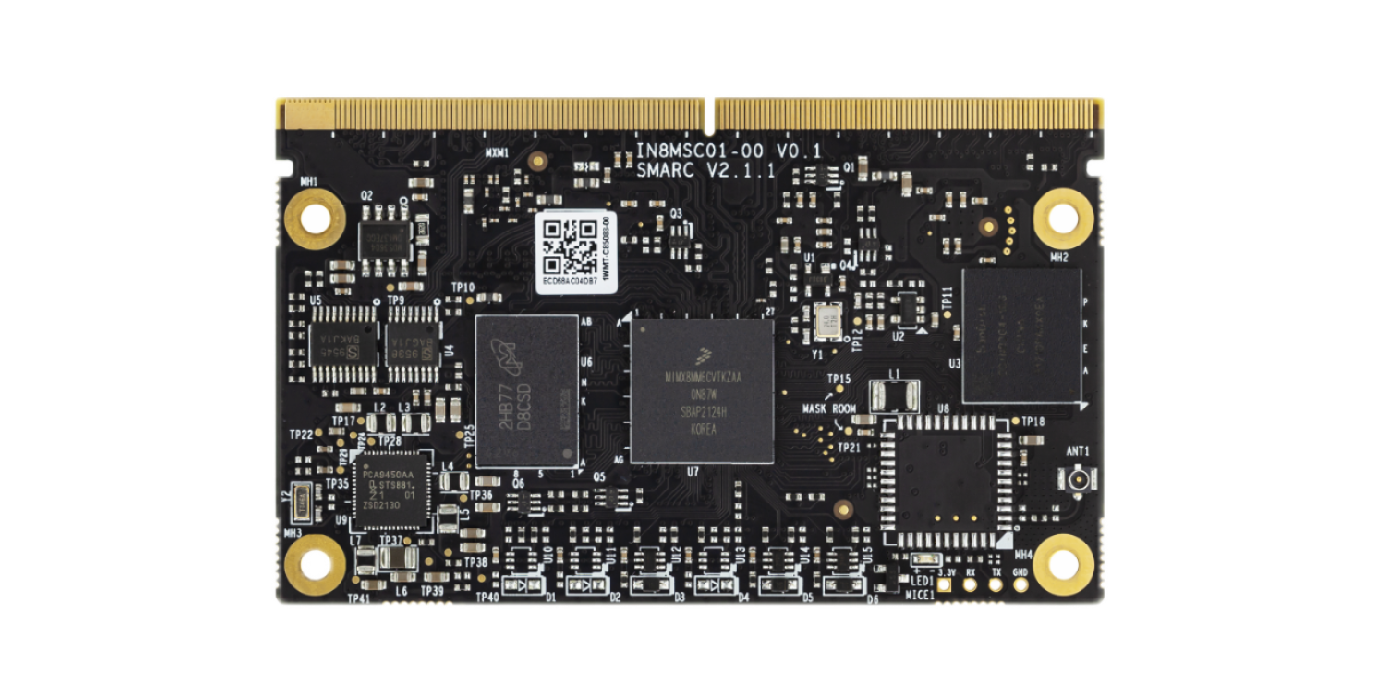

JSOM-N8MC is an Arm-based SMARC 2.1.1 Computer-on-Module powered by industrial grade NXP i.MX 8M Mini SoC, which includes 4x Arm Cortex-A53 cores and integrates a Cortex-M4 co-processor for real-time control. It features on on-board WiFi+BT module and offers various high-speed interfaces including 1x GbE, 1x PCIe, 5x USB, 4x UART. JSOM-N8MC is the perfect basis for creating ultra low power, cost-effective solutions used in industrial IoT and medical applications. JSOM-N8MC is paired with the JSOM-SC211 SMARC 2.1.1 development board for faster end-product peripheral integrationand time-to-market, offered along with carrier board design support documents and Android/Linux SDK.
- •
- NXP i.MX 8M Mini SoC up to 1.8 GHz
- •
- 4x Cortex-A53 + 1x Cortex-M4 + GC NanoUltra GPU
- •
- On-board 2/4GB LPDDR4 + 16/32/64GB eMMC
- •
- Display: 1x MIPI-DSI or Dual channel LVDS
- •
- I/O: 1x GbE, 1x PCIe, 5x USB, 4x UART
- •
- Optional on-board WiFi+BT module
- •
- Supports 0~60℃/-40~85℃ operating temperature
CPU | NXP i.MX 8M Mini 4x Arm Cortex-A53 up to 1.8 GHz (consumer) / 1.6 GHz (industrial) 1x Arm Cortex-M4 up to 400 MHz for real-time control |
NPU | - |
GPU | Vivante GC NanoUltra, supports OpenGL ES 2.0, OpenVG 1.1 |
H/W Video Codec | H.265/H.264/VP9/VP8 Decoder up to 1080p60, H.264/VP8 Encoder up to 1080p60 |
Memory | On-board 2GB/4GB LPDDR4 |
Flash Memory | On-board 16GB/32GB/64GB eMMC 5.1 for OS On-board 32MB QSPI NOR Flash for board information |
Ethernet | 1x 10/100/1000 Mbps |
Display | 1x 4-lane MIPI-DSI or Dual channel LVDS |
Video Input | 1x 4-lane MIPI-CSI |
Audio | 2x I2S |
PCIe | 1x PCIe 2.0 1-lane |
SATA | - |
USB | 4x USB 2.0 Host, 1x USB 2.0 OTG/Host |
Serial Port | 2x 4-wire UART, 2x 2-wire UART for debug |
Other I/Os | 1x SDIO (4 bit, for SD cards), 2x SPI, 4x I2C, 14x GPIO |
Board Features | On-board AW-CM358 WiFi 5 (802.11ac) + Bluetooth 5.2 module Watchdog Timer, RTC |
Power Supply | DC 5V, supports 3.6~5.25V operation from Lithium-ion cells |
Form Factor | SMARC 2.1.1 314-pin MXM Connector, 82mm x 50mm |
OS Support | Yocto 3.5 Linux, Ubuntu 22.04, Android 11 |
Boot Options | eMMC or SD, default to eMMC |
Operating Conditions | 0~60℃/-40~85℃, 10%~90% RH non-condensing |
Storage Conditions | -40~85℃, 5%~90% RH non-condensing |
