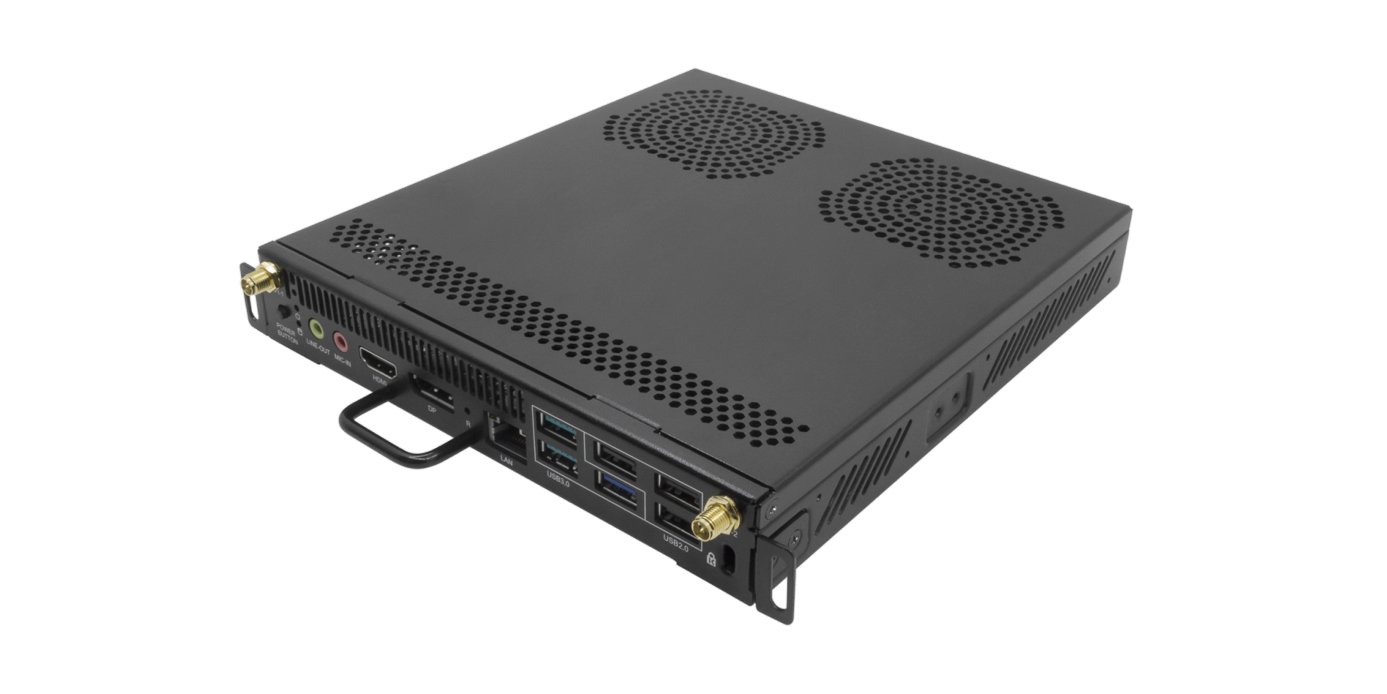

S102ET
It features the Intel Alder Lake-H processor and complies with the OPS-C standard, incorporating an eDP review function. Widely used in large-scale educational and conference applications, it offers an ultra-quiet design, delivering high-performance computing and an enhanced user experience. Additionally, it supports wired screen projection.
- •
- Support Intle 12, 13 generation i5/i7 H series CPU
- •
- Two SO-DIMMs for DDR4 support a maximum of 32GB
- •
- Standard 80PIN connector
- •
- Refer to Intel OPS-C standard design specification
- •
- Support M.2 2280 SSD
- •
- Support Wifi6&BT5.2
- •
- Support wired screen projection function
- •
- Supports 8 eDP point screen, the maximum support for 4K@60Hz display
- •
- With quiet design, the noise under normal operation is less than 30dB/M
CPU | CPU | Intel 12th/13th/14th Gen H Platform |
TDP | 45W | |
Display | Graphic card | Intel UHD Graphics |
Multi displays | Support Four displays | |
Interface | 1 x DP1.2, 1 x HDMI 1.4 1 x HDMI2.0, 1 x eDP 1.2 (80Pin） | |
Network | Lan IC | 1x RTL8111H/ RTL8111M |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | Wi-Fi/BT module，Supports 802.11 b/g/n/ac/ax | |
Wireless Interface | M.2 Key E 2230 Module | |
I/O interface | Display | 1 x HDMI 1.4, 1 x DP1.2 |
USB | 2 x USB2.0, 4 x USB 3.0,1 x Type-C | |
Button | 1 x PowerButton, 1 x Reset Button 1 x Recover | |
Slot | 1 x RJ45 | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |
JAE | 1 x JAE 80pin: HDMI2.0, eDP1.2, 2 x USB2.0，1 x USB3.0，TTL，1 x Line Out | |
System | Memory | Dual SoDIMM DDR4 Max. 32 GB |
Storage | 2 x M.2 2280, SATA/PCIE Self-adaptation | |
OS | Window11 /Windows10/ Linux | |
WatchDog | Support | |
Auto Power On | Yes | |
TPM2.0 | Option | |
RTC | Yes | |
Power Input | 12-19v 2.5/5.5 DC-In | |
Dimension | 195mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -10~50℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
