JZ7KMA01

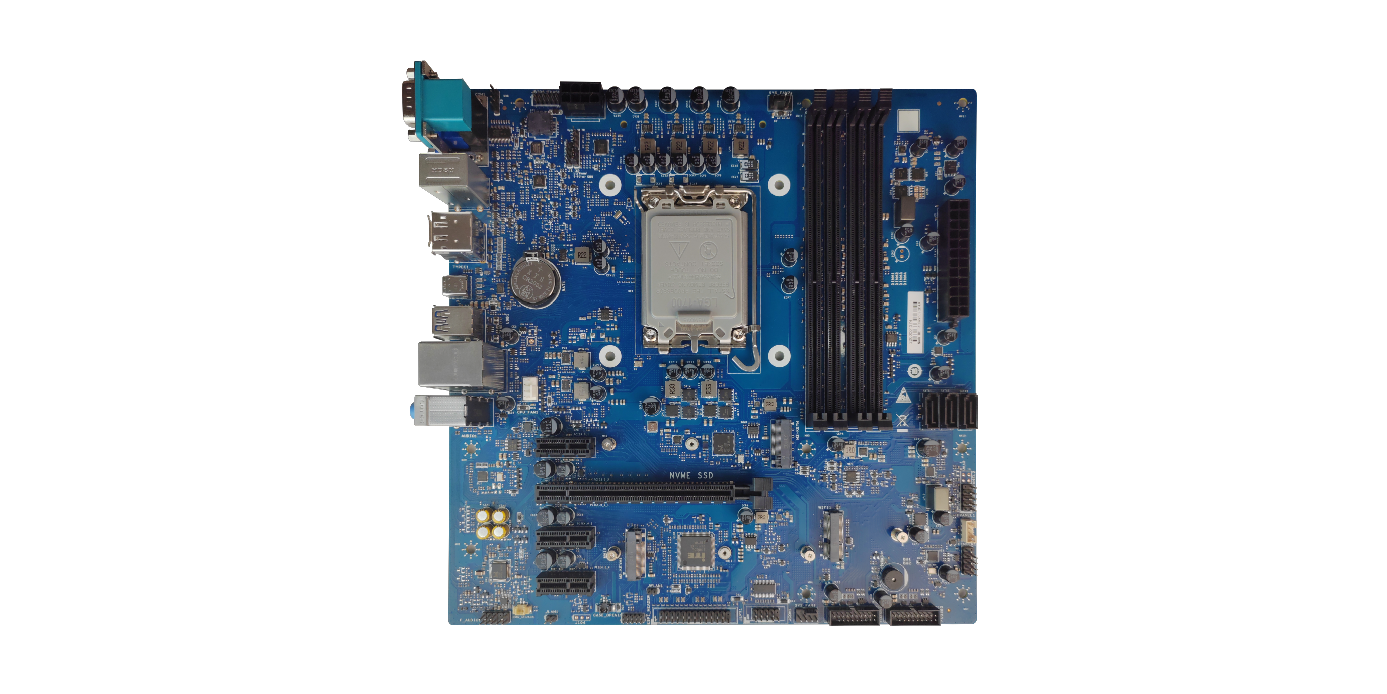

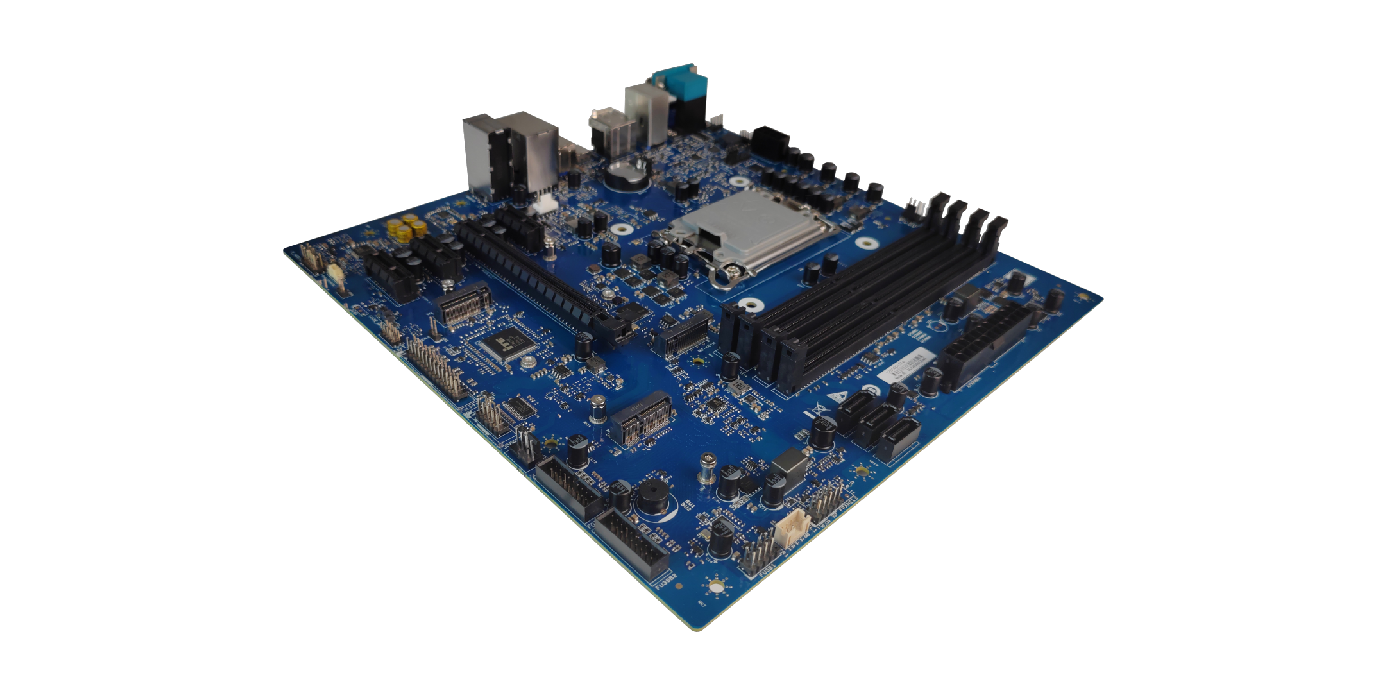

The JZ7KMA01 motherboard is a standard 4DIMMS Micro ATX desktop motherboard, based on the Mega core KX-7000 platform design, with a rich external interface, can be used in batches of party, government, military, enterprise standard office computers, the motherboard provides serial ports, PCIe peripherals can support to meet specific requirements of the self-service terminal.
- •
- Based on mega core KX7000 8 core chip design
- •
- Micro-ATX midplate: 244 x 244mm
- •
- 4 x U-DIMM DDR4 memory slots support a maximum of 64 GB. 2 x M.2 2280 SSD Port, 3 x SATA Gen3 Port
- •
- M.2 2230 WIFI/BT
- •
- Extensions: 12 x USB2.0/3.0, 1 x COM/1 x JCOM (optional)
- •
- 1 x VGA, 1 x DP, 1 x HDMI
- •
- 1 x Gigabit network adapter, support network wake-up function
- •
- 4+1PHASE power supply, CPU power consumption 80W
- •
CPU | 兆芯KX7000 8核心CPU, 最高频率 3.0GHz |
桥片 | KX7000 |
显卡 | PCIE/onboard |
内存 | 4 x U-DIMM DDR4 (MAX支持128GB) ; 最高支持DDR4-3200 |
系统 | 支持Windows 10 / UOS |
BIOS | 支持适配国产UEFI BIOS (百傲/昆仑) *默认样品提供百傲BIOS |
存储 | 1 x M.2 2280 SSD Slot support PCIe4.0 X4 1 x M.2 2280 SSD Slot support PCIe4.0 X2 |
3 x SATA Gen3 Port | |
音频 | HD Audio IC ALC897 |
网络 | 1 x 1000M网络接口 1 x M.2 2230 WIFI/BT |
显示接口 | 1 x VGA, 1 x DP1.4, 1 x HDMI2.0 |

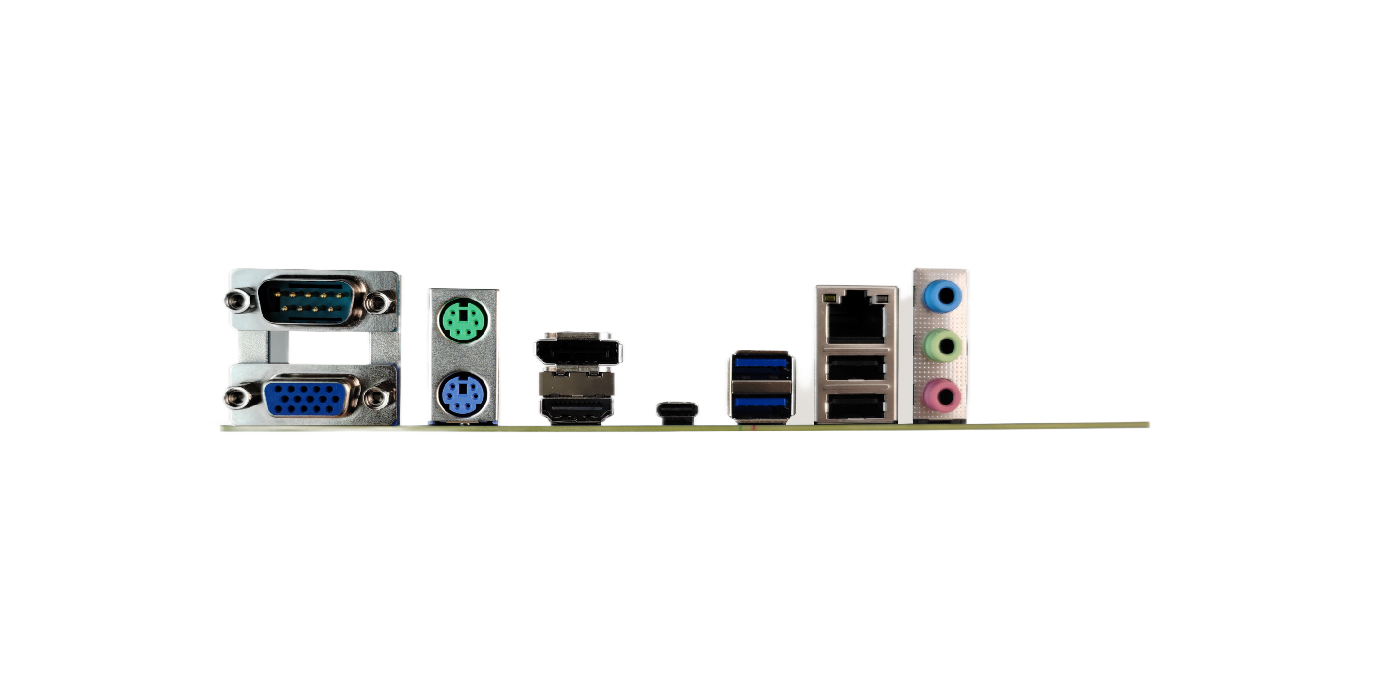

音频接口 | 1 x Line in, 1 x Line out, 1 x Mic in; 3.5mm Audio Jack, 1 x 9pin插针, 2 x 5-1 2.54mm规格, |
USB接口 | 后IO: 2 x USB2.0, 3 x USB3.2 Gen2 (2*Type-A+1*Type-C） 板载插针: 2 x USB2.0, 4 x USB3.0, 1 * 4PIN header (Finger Print) 3.3v |
串口 | 1 x DB-9, RS232规范, *使用相关外设需要适配BIOS与OS的驱动 1 x 2*5pin-1 (2.54排针) |
扩展 | 1 x PCIe x16插座 (运行4.0 x8速率) 3 x PCIe x1插座 |
前面板 | 1 x 2*5pin-1 (2.54排针) |
其他 | FAN: 1 x CPU_FAN 4Pin插针, 2 x SYS_FAN 4Pin插针 1 x CLR_CMOS 3Pin插针, 1 x Case_Open 2Pin插针, 1 x LPT 2*15Pin插针, 1 x MONO_OUT 2Pin插针 预留TPM header, 兼容国产TPM模块 |
电源输入 | 24PIN + 8PIN供电接口 |
产品尺寸 | Micro ATX 主板规范, 244 x 244mm |
工作温度 | -5~50摄氏度 |
工作湿度要求 | 10%~90%无凝结 |
存储温度 | -20~70摄氏度 |
非工作湿度要求 | 5%~95%无凝结 |
Obtain comprehensive product information. For various needs from product definition to software and hardware development, we will arrange product engineers to serve you as soon as possible.
