JCCM1-ZXE

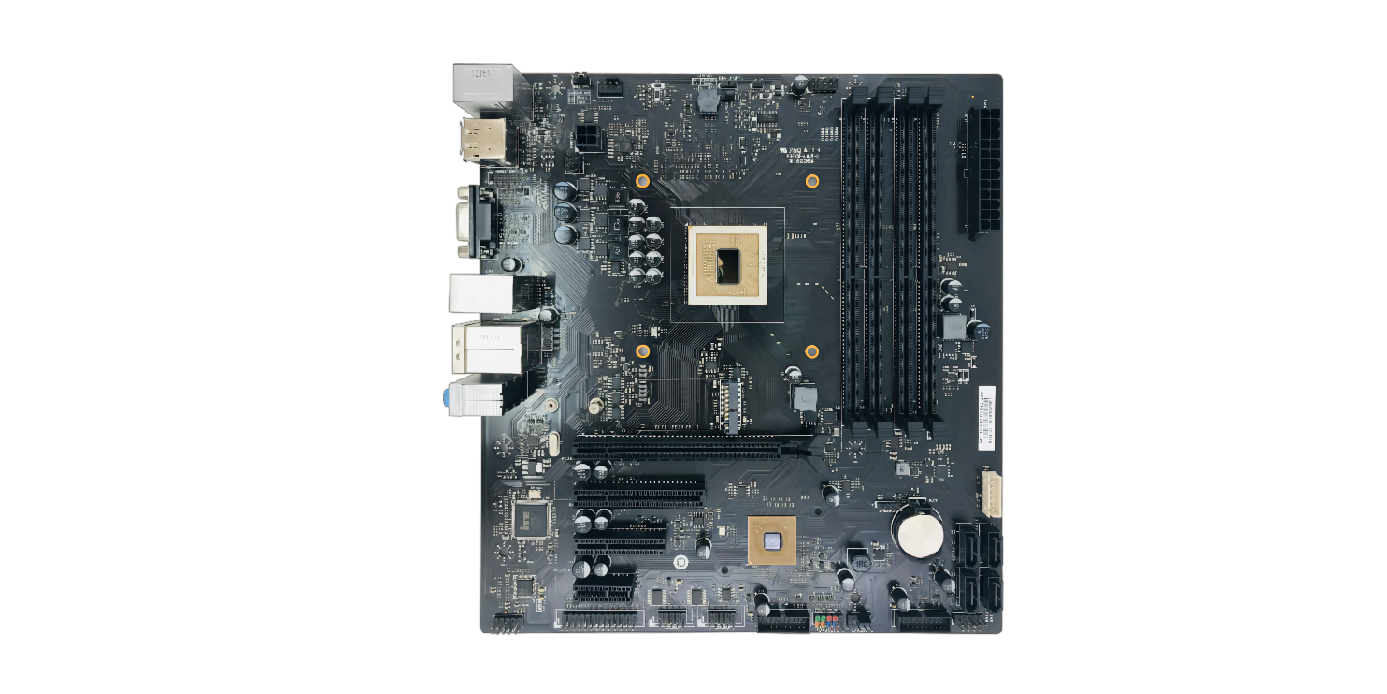

The JCCM1-ZXE motherboard is a standard 4DIMMS Micro ATX desktop motherboard based on the Mega Core KX-6000 platform design, with a variety of external interfaces, can be used in batches of party, government, military, enterprise standard office computers, the motherboard provides serial ports, PCIe peripherals can support the specific requirements of the self-service terminal.
- •
- Based on Mega core KX-6000 series chip design
- •
- M-ATX center plate: 245 x 230mm
- •
- 4 x U-DIMM DDR4 memory slots support a maximum of 128 GB. 1 x M.2 2260/2280 SSD Port, 4 x SATA Gen3 Port
- •
- Extensions: 16 x USB2.0/3.0, 2 x COM, 1 x LPT, 1 x PS/2
- •
- Display output: 1 x HDMI, 1 x VGA, 1 x DP
- •
- 1 x Gigabit network adapter, support network wake-up function
- •
- 3PHASE Power supply with 70W CPU power consumption.
CPU | 兆芯KX-6000系列CPU, TDP 70W |
桥片 | ZX-200 |
显卡 | CPU集成 |
内存 | 4 x U-DIMM DDR4 (MAX支持128G) ; 最高支持DDR4-2666 |
系统 | WINDOW 7/WINDOWS 10/中标麒麟/UOS * |
IOS | 百傲UEFI BIOS |
存储 | 1 x M.2 2260/2280 SSD Slot |
4 x SATA Gen3 Port | |
音频 | HD Audio IC, ALC897 |
网络 | 1 x 1000M网络接口, RTL8111H |

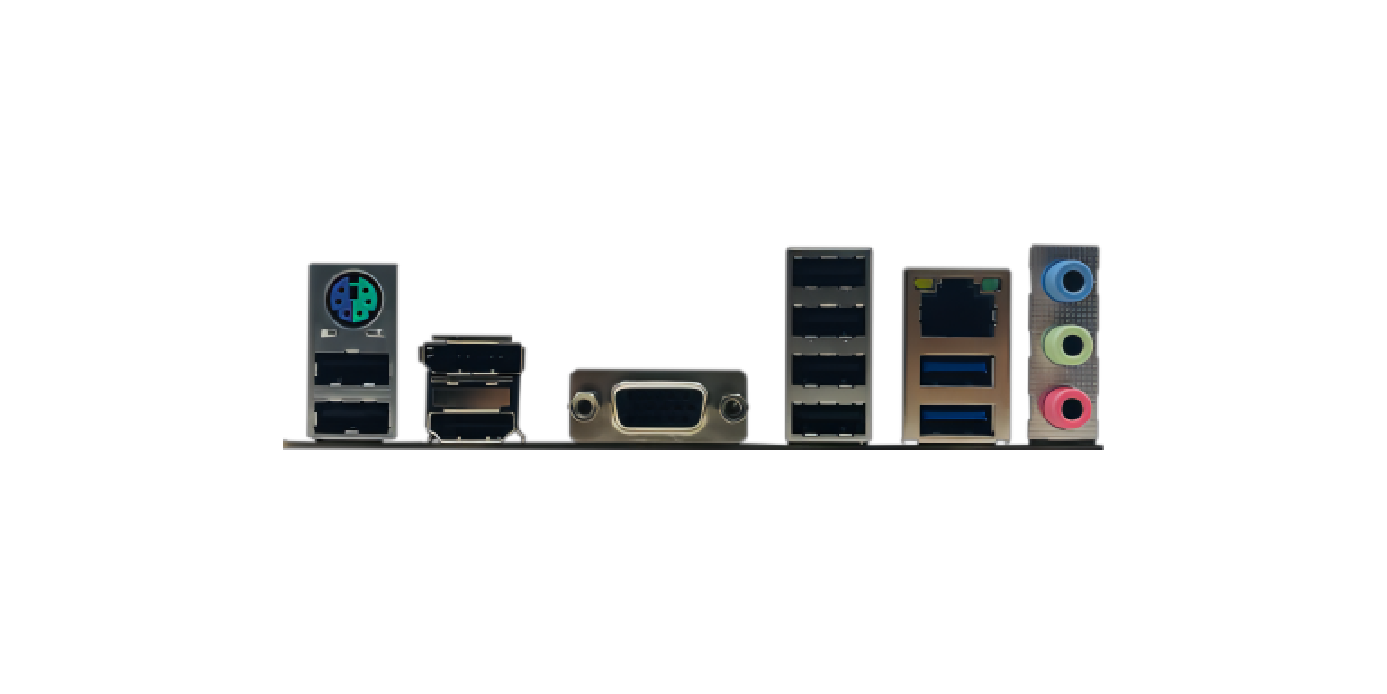

显示接口 | 1 x HDMI (Type-A) , 1 x DP (Type-A) , 1 x VGA (DB-15) 接口 |
音频接口 | 1 x Line in, 1 x Line out, 1 x Mic in; 3.5mm Audio Jack, 1 x 9pin插针, 2*5-1 2.54mm规格 |
USB接口 | 后IO: 6 x USB2.0, 2 x USB3.2 Gen1 板载插针: 4 x USB2.0, 4 x USB3.2 Gen1 |
串口 | 2 x 9pin插针, 2*5-1 2.54mm规格, RS232规范 |
扩展 | 1 x PCIe x16插槽 (PCIe x8) , 1 x PCIe x8插槽 (PCIe x1) , 1 x PCIe x4插槽 (PCIe x1) , 1 x PCIe x1插槽 |
前面板 | 1 x 2*5pin-1 (2.54排针) |
其他 | FAN: 1 x CPU_FAN 4Pin插针, 1 x SYS_FAN 4Pin插针 1 x 蜂鸣器 4Pin插针, 1 x LPT 2*13pin-1插针, HDD_PWR 6Pin插针, CLR_COMS 3Pin插针 |
电源输入 | 24PIN + 4PIN供电接口 |
产品尺寸 | Micro ATX 主板规范, 245 x 230 mm |
工作温度 | -5~50摄氏度 |
工作湿度要求 | 10%~90%无凝结 |
存储温度 | -20~70摄氏度 |
非工作湿度要求 | 5%~95%无凝结 |
Obtain comprehensive product information. For various needs from product definition to software and hardware development, we will arrange product engineers to serve you as soon as possible.
