JCCM2-FTD2K

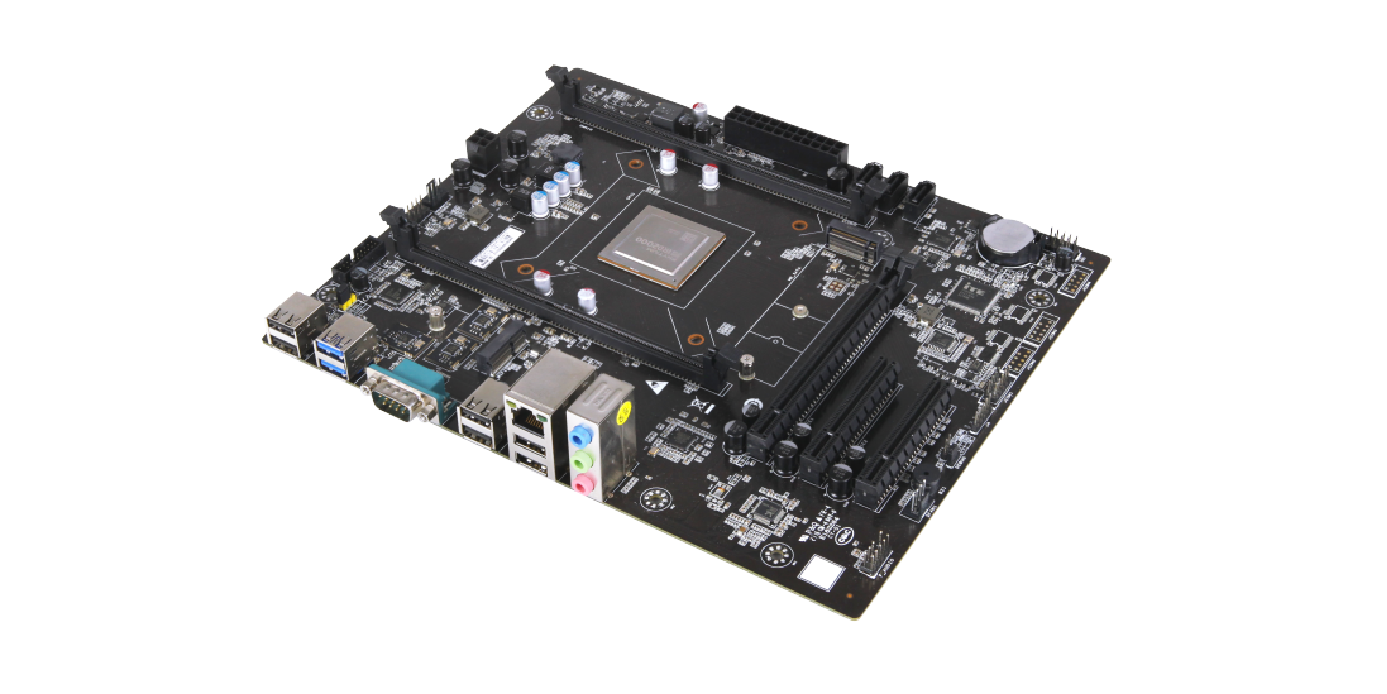

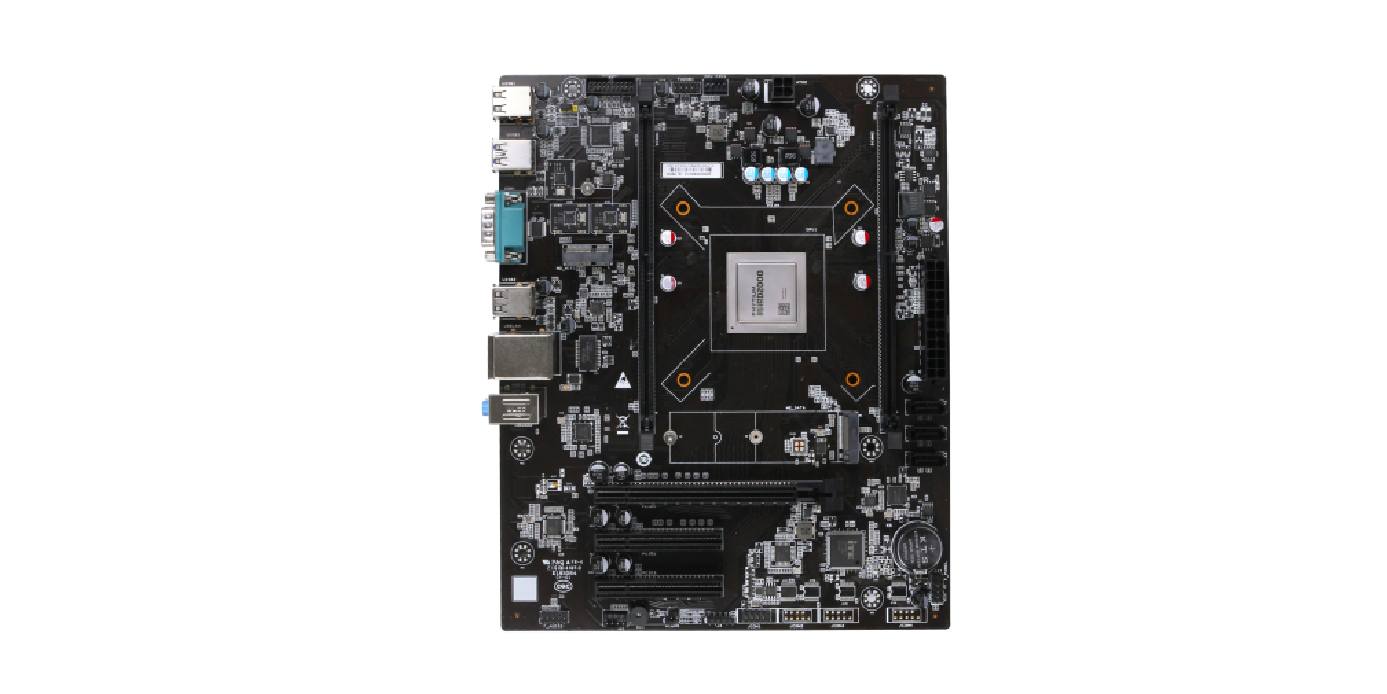

JCCM2-FTD2K motherboard is a standard 2DIMMS Micro ATX desktop motherboard, based on the Feiten D2000 platform design, with a rich external interface, can be used in batches of party, government, military, enterprise standard office computers, the motherboard provides serial ports, PCIe peripherals can support the specific requirements of the self-service terminal.
- •
- Based on Feiteng D2000 8 core chip design
- •
- M-ATX center plate: 245 x 200mm
- •
- 2 x U-DIMM DDR4 memory slots support up to 32 GB. 1 x M.2 2280 SSD Port, 3 x SATA Gen3 Port
- •
- Expansion: 12 x USB2.0/3.0, 2 x COM
- •
- M.2 WIFI/BT Slot
- •
- Provides 1 x PCIe x16, 2 x PCIe x8 ports
- •
- 1 x Gigabit network adapter, support network wake-up function
- •
- Using standard 24+4 ATX power supply
- •
CPU | 飞腾D2000 8核心CPU, 最高频率2.3GHz, FTC663内核 |
显卡 | 无, 需通过PCIe x16 slot扩展独显 |
内存 | 2 x U-DIMM DDR4 (MAX支持32G) ; 最高支持DDR4-2666 |
系统 | 支持适配 麒麟/UOS |
BIOS | 支持适配国产UEFI BIOS (百傲/昆仑) * 默认样品提供百傲BIOS |
存储 | 1 x M.2 2280 SSD Slot support SATA, 可选 |
3 x SATA Gen3 Port | |
音频 | HD Audio IC ALC897 |
网络 | 1 x 1000M网络接口 1 x M.2 2230 WIFI/BT (可选, 仅 1x PCIe x8 slot支持选配) |
显示接口 | 无 |
音频接口 | 1 x Line in, 1 x Line out, 1 x Mic in; 3.5mm Audio Jack 1 x 9pin插针, 2 x 5-1 2.54mm规格 |

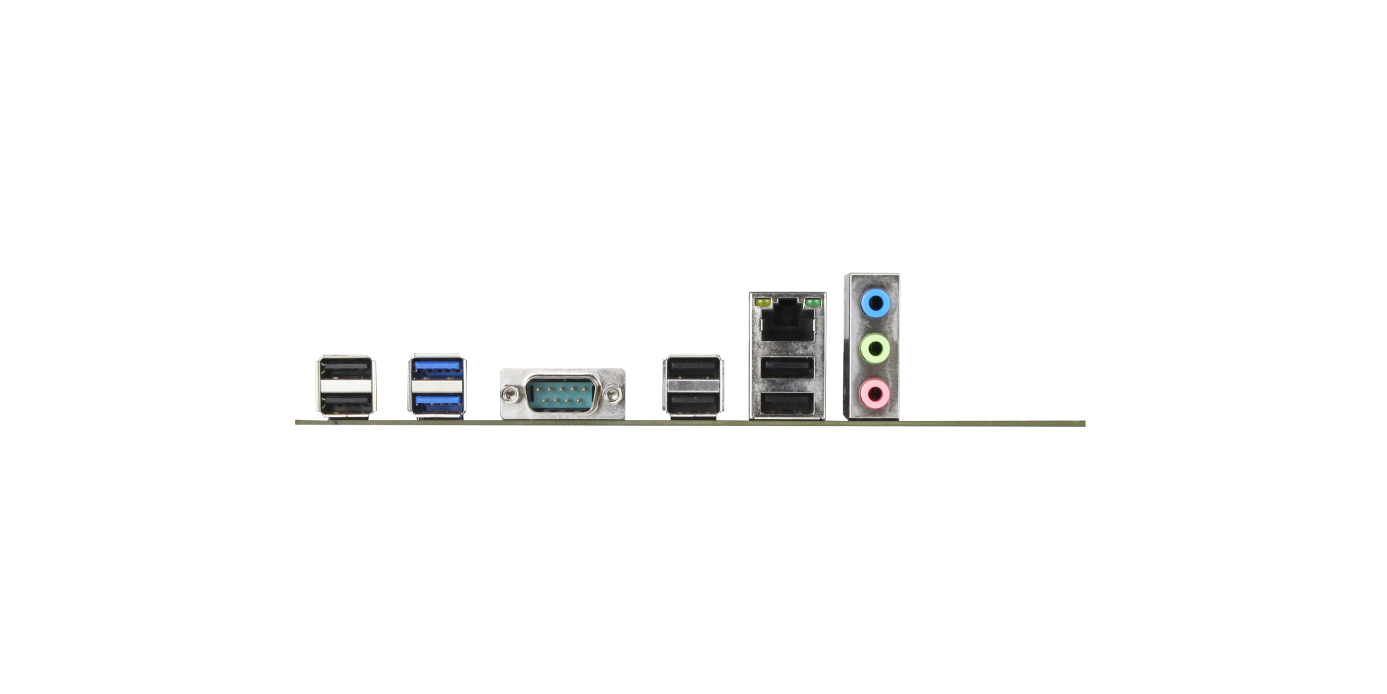

USB接口 | 后IO: 6 x USB2.0, 2 x USB3.0 板载插针: 4 x USB2.0, 4 x USB3.0 |
串口 | 1 x DB-9, RS232规范 *使用相关外设需要适配BIOS与OS的驱动 4 x 9pin插针, 2 x 5-1 2.54mm规格 RS232规范 (可选配置) ---2COM/5COM可选 |
扩展 | 1 x PCIe x16插座 (运行x8速率) 2 x PCIe x8插座, 可选1 x PCIe x8插座 (支持可选M.2 2230 WIFI扩展) |
前面板 | 1 x 2*5pin-1 (2.54排针) |
其他 | FAN: 1 x CPU_FAN 4Pin插针, 1 x SYS_FAN 3Pin插针 |
电源输入 | 24PIN + 4PIN供电接口 |
产品尺寸 | Micro ATX 主板规范, 245 x 200 mm |
工作温度 | -5~50摄氏度 |
工作湿度要求 | 10%~90%无凝结 |
存储温度 | -20~70摄氏度 |
非工作湿度要求 | 5%~95%无凝结 |
