JCMSMC09

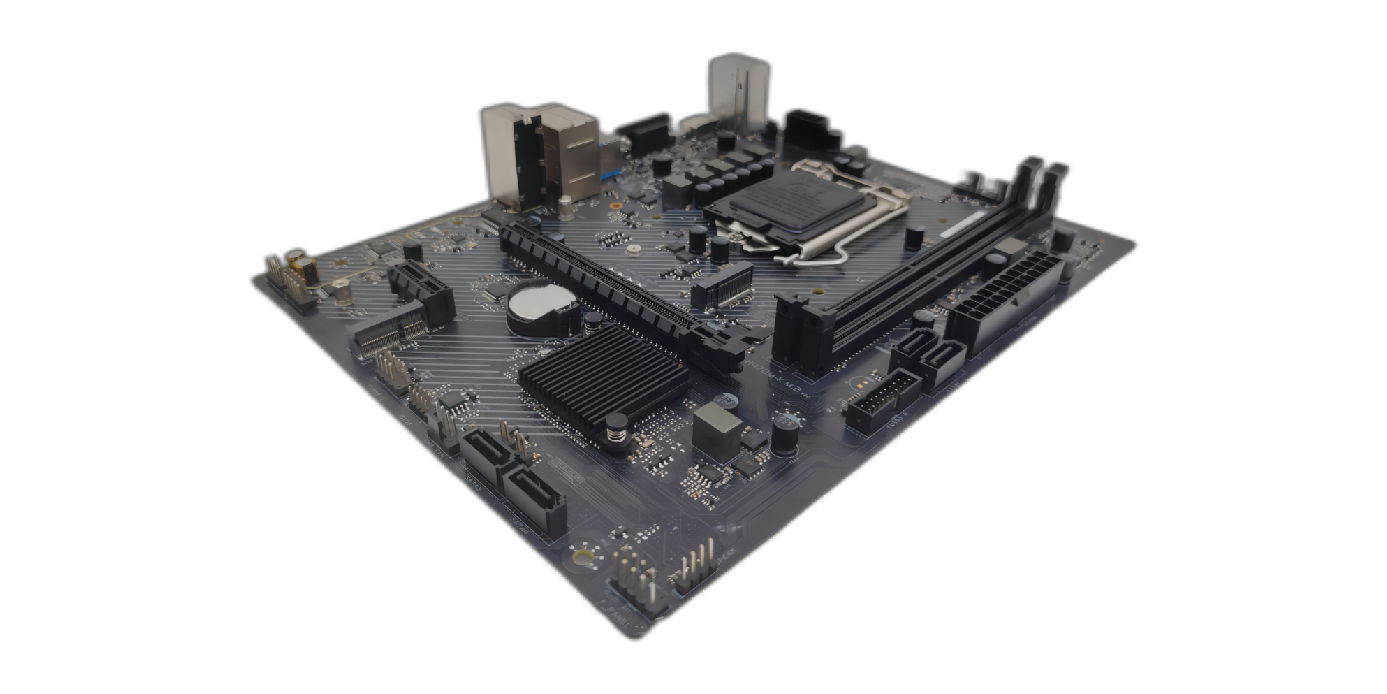

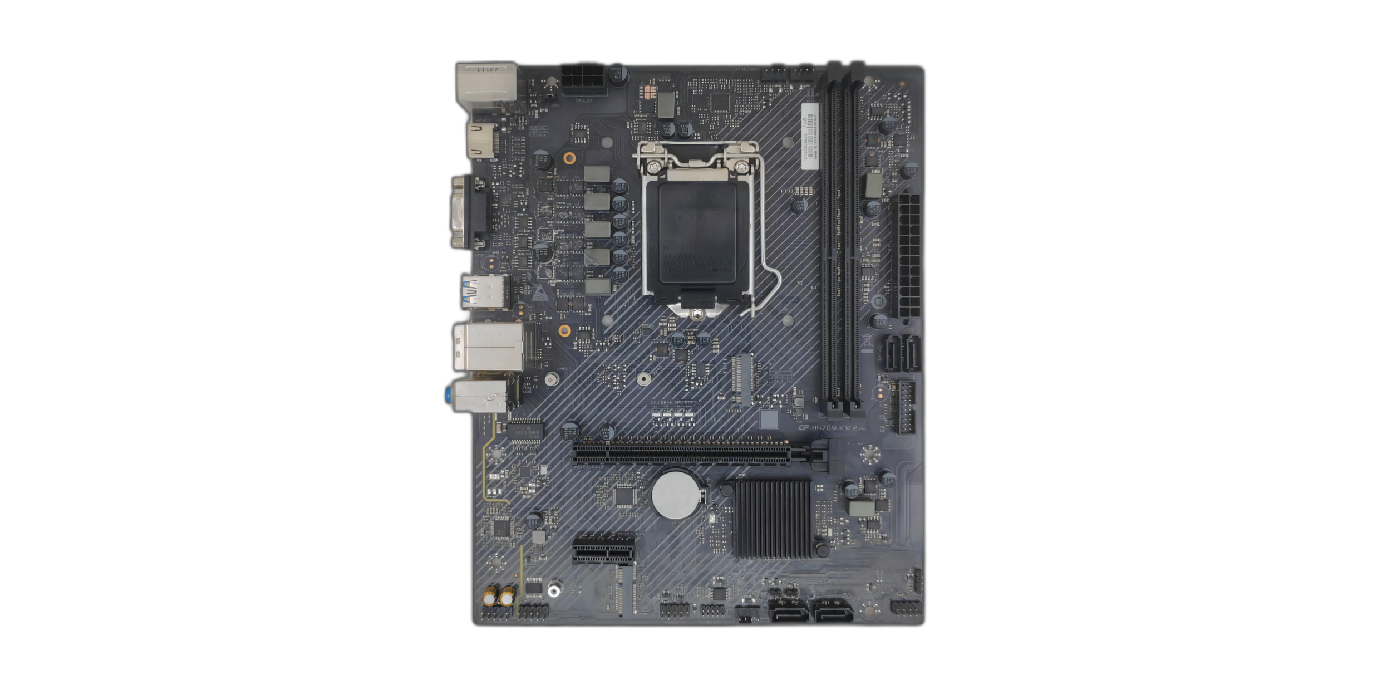

The JCMSMC09 motherboard is a standard 2DIMMS Micro ATX desktop computer motherboard, using Intel® Comet Lake H470 chipset, with rich external interfaces, can be widely used in home, office, etc.
- •
- Based on Comet Lake H470 chip design
- •
- M-ATX center plate: 236 x 188mm
- •
- 2 x U-DIMM DDR4 memory slots support up to 64 GB
- •
- 1 x M.2 2242/2280 SSD Port, 4 x SATA Gen3 Port
- •
- 10 x USB2.0/3.0
- •
- M.2 WIFI/BT Slot
- •
- 1 x HDMI, 1 x VGA
- •
- Gigabit network card, support network wake-up function
- •
- 4+1 PHASE Power supply, CPU power consumption 65W
CPU | Support Intel 12/13 generation CPU, CPU MAX 125W |
Chipset | B760 colay H610 |
Graphics | PCIE/onboard |
Memory | 2 x U-DIMM DDR5, up to 64G, memory OC up to 6000MHz+ |
system | Windows 11 |
BIOS | AMI |
storage | 2 x M.2 2242/2280 support PCIE GEN4 X4 |
4 x SATA Gen3 Port | |
Audio | HD Audio IC, 5.1CH |
network | 1 x 1000M network interface |
1 x M.2 WIFI horizontal slot | |
Display Interface | 1 x VGA port, 1 x HDMI port |
Audio Interface | 1 x Line in, 1 x Line out, 1 x Mic in; 3.5mm Audio Jack |
1 x 9pin connector, 2*5-1 2.54mm | |

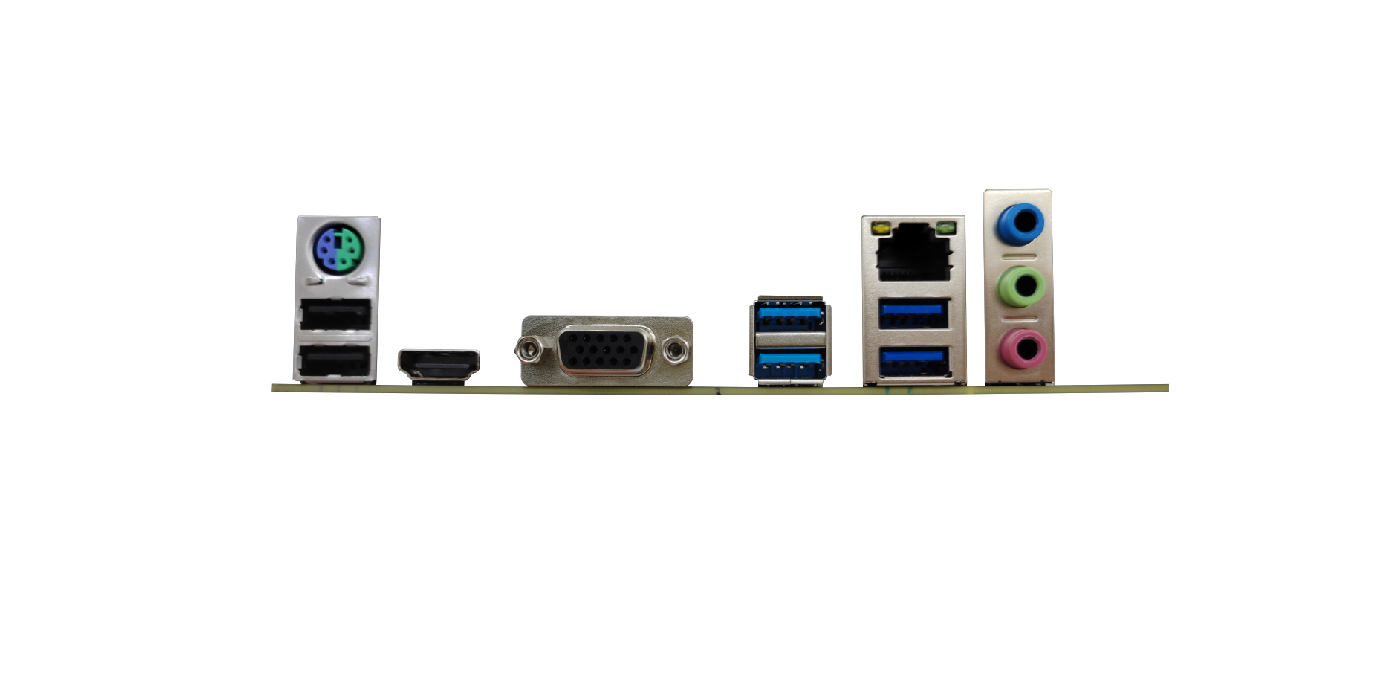

USB interface | Rear IO: 2 x USB2.0, 4 x USB3.0 Gen1 (H610 only has 2 x USB3.0 Gen1) |
Onboard: 2 x USB2.0, 2 x USB3.0 Gen1 | |
Serial Port | 1 x 9pin connector, 2*5-1 2.54mm specification |
Extensions | 1 x PCI Express4.0 x16 slot, 1 x PCI Express3.0 x1 slot |
Front Panel | 1, 2*5pin-1 (2.54 pin header) |
other | FAN: 1 x CPU fan 4Pin pin, 2 x chassis fan 4Pin pin |
1 x Buzzer 4Pin header, 1 x ESPI_HEADER 2*5Pin header, 1 x JBIOS_TPM 2*6Pin-1 header, 1 x CLR_CMOS 3Pin header | |
Power Input | 24PIN + 8PIN power supply interface |
Product size | Micro ATX motherboard specification, 207 x 235 mm |
Operating temperature | -5~50 degrees Celsius |
Working humidity requirements | 10%~90% no condensation |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirements | 5%~95% no condensation |
